Frankly speaking, the phenomenon of roll deflection is a fundamental challenge inherent in the design and operation of nearly every paper machine worldwide. It's essentially the slight bending or sagging that occurs in a roll under load – primarily its own weight and the intense pressures exerted within the nip points critical for dewatering, pressing, and calendering paper. While seemingly minor, this deflection can have profound and often detrimental consequences for the final paper product and overall machine efficiency. Understanding the mechanics behind why rolls deflect and, more importantly, how this deflection translates into tangible impacts on the paper sheet is absolutely crucial for any papermaker striving for consistent quality and optimal production rates. It's not just an abstract engineering concept; it directly influences everything from the paper's thickness profile (caliper) and moisture content to its surface properties and winding characteristics. Ignoring roll deflection is akin to navigating a complex process blindfolded; you might reach the end, but the journey will be inefficient, and the result often subpar. Therefore, delving into the intricacies of roll deflection isn't just academic – it's a practical necessity for competitive papermaking in today's demanding market. Have you ever stopped to consider how much variability in your final product might actually originate from this subtle bending occurring deep within the machine?
The Physics Behind Roll Bending
To truly grasp the impact of roll deflection, we first need to appreciate the underlying physics. At its core, a paper machine roll acts like a beam supported at its ends (by bearings) and subjected to various loads. The primary loads are its own substantial weight, distributed along its length, and the concentrated force applied at the nip, which is the contact line or area between two rolls (or a roll and another surface). Basic beam theory tells us that any loaded beam supported at its ends will deflect, with the maximum deflection typically occurring at the center. The magnitude of this deflection is influenced by several key factors: the load itself (both roll weight and nip pressure), the span between the supports (the roll face length plus bearing arrangements), the roll's material properties (specifically its Modulus of Elasticity – how resistant it is to bending), and its geometric properties (principally its diameter, or more accurately, its area moment of inertia, which is heavily dependent on diameter). A longer roll, a heavier roll, a roll made of less stiff material, or a roll with a smaller diameter will generally deflect more under the same loading conditions. It's worth noting that the nip load itself is often the dominant factor, especially in press and calender sections where pressures can be extremely high. Understanding these relationships is the first step towards predicting, measuring, and ultimately compensating for deflection.
Impact on Nip Pressure Profile: The Uneven Squeeze
Perhaps the most direct and critical consequence of roll deflection is its effect on the nip pressure profile. Imagine two perfectly cylindrical rolls pressed together. Ideally, the pressure exerted along the line of contact (the nip) would be uniform from one end of the roll to the other. However, when the rolls deflect (bending downwards in the middle under load), the gap between them tends to increase slightly at the center and decrease towards the ends. This distortion directly translates into a non-uniform pressure distribution. In a typical scenario without compensation, the center of the nip experiences lower pressure, while the edges experience significantly higher pressure. This uneven squeeze is the root cause of many paper quality issues. Think about it: if the paper web isn't being pressed or calendered uniformly across its width, how can we expect uniform properties? The water removal in the press section will be uneven, the densification and smoothing in the calender will vary, leading to inconsistencies that are difficult, if not impossible, to correct later in the process. Many experts agree that achieving a uniform nip pressure profile is paramount for high-quality paper production, and roll deflection is the primary obstacle to achieving this ideal state. It's a constant battle between the applied load and the roll's resistance to bending.
Caliper and Moisture Variations
The non-uniform nip pressure caused by deflection directly manifests as variations in the paper sheet's caliper (thickness) and moisture profile across the machine width. Where the nip pressure is higher (typically near the roll ends in an uncompensated setup), the sheet is squeezed harder. In the press section, this means more water is removed, leading to drier edges. In the calender section, higher pressure leads to greater densification and a lower caliper (thinner paper) at the edges. Conversely, the lower pressure area in the center results in less water removal (wetter center in the press) and less densification (higher caliper/thicker paper in the calender center). These cross-directional (CD) variations are highly undesirable. Uneven caliper profiles, often referred to as "hard edges" and a "soft center," can cause significant problems during subsequent converting processes like printing and sheeting, leading to registration issues, wrinkles, and uneven coating application. Similarly, uneven moisture profiles negatively impact dimensional stability, curl, and can lead to issues like blackening during calendering if moisture levels are too high. In my experience, tackling CD caliper and moisture variations often requires addressing the root cause – the uneven nip pressure profile resulting from roll deflection.
Deflection Challenges Across Different Machine Sections
It's important to recognize that roll deflection isn't a uniform problem across the entire paper machine; its impact and the necessary compensation methods vary depending on the section. In the forming section, while nip pressures are lower, rolls like suction couch rolls are large, heavy, and long, making deflection still a consideration for wire tension and drainage uniformity. The press section is often where deflection becomes most critical due to the extremely high nip loads required for water removal. Here, uneven pressure directly impacts sheet dryness, density, and can even lead to sheet crushing at the high-pressure edges. Compensating for deflection is absolutely essential for efficient pressing. Moving to the dryer section, the steam-heated dryer cans also deflect under their own weight, which can affect heat transfer uniformity and felt/fabric tension profiles, potentially impacting drying rates across the web. Finally, in the calender stack, where surface properties like smoothness and gloss are developed, precise nip pressure control is paramount. Deflection here leads to the caliper and gloss variations discussed earlier. Each section utilizes different roll types, materials, diameters, and operates under different load conditions, demanding tailored approaches to manage deflection effectively. A one-size-fits-all solution rarely works.
Measuring and Analyzing Roll Deflection
Given the significant impact of deflection, how do papermakers actually measure and analyze it? Frankly speaking, directly measuring the physical bending of a massive, rotating roll under operational load is extremely difficult. Instead, we typically infer the effects of deflection by measuring the nip pressure profile it creates. Traditional methods involved using nip impression paper (like carbon paper sets) placed between the rolls. While giving a qualitative picture, these methods are static, time-consuming, and lack precision. Modern approaches rely on sophisticated electronic nip analysis systems. These systems use thin sensor strips containing multiple pressure-sensitive points placed across the nip width. As the rolls close onto the sensor, it captures a detailed, quantitative map of the pressure distribution in real-time, both statically and sometimes dynamically. This data provides invaluable insight into how the nip pressure varies across the roll face, clearly highlighting the effects of deflection and any misalignment or crowning issues. Furthermore, Finite Element Analysis (FEA) modeling allows engineers to simulate roll deflection under various operating conditions (loads, speeds, temperatures) during the design phase or for troubleshooting existing problems. Combining these measurement and analysis tools allows for a comprehensive understanding of the nip conditions and the effectiveness of any corrective actions taken.
Counteracting Deflection: Crowning and Advanced Solutions

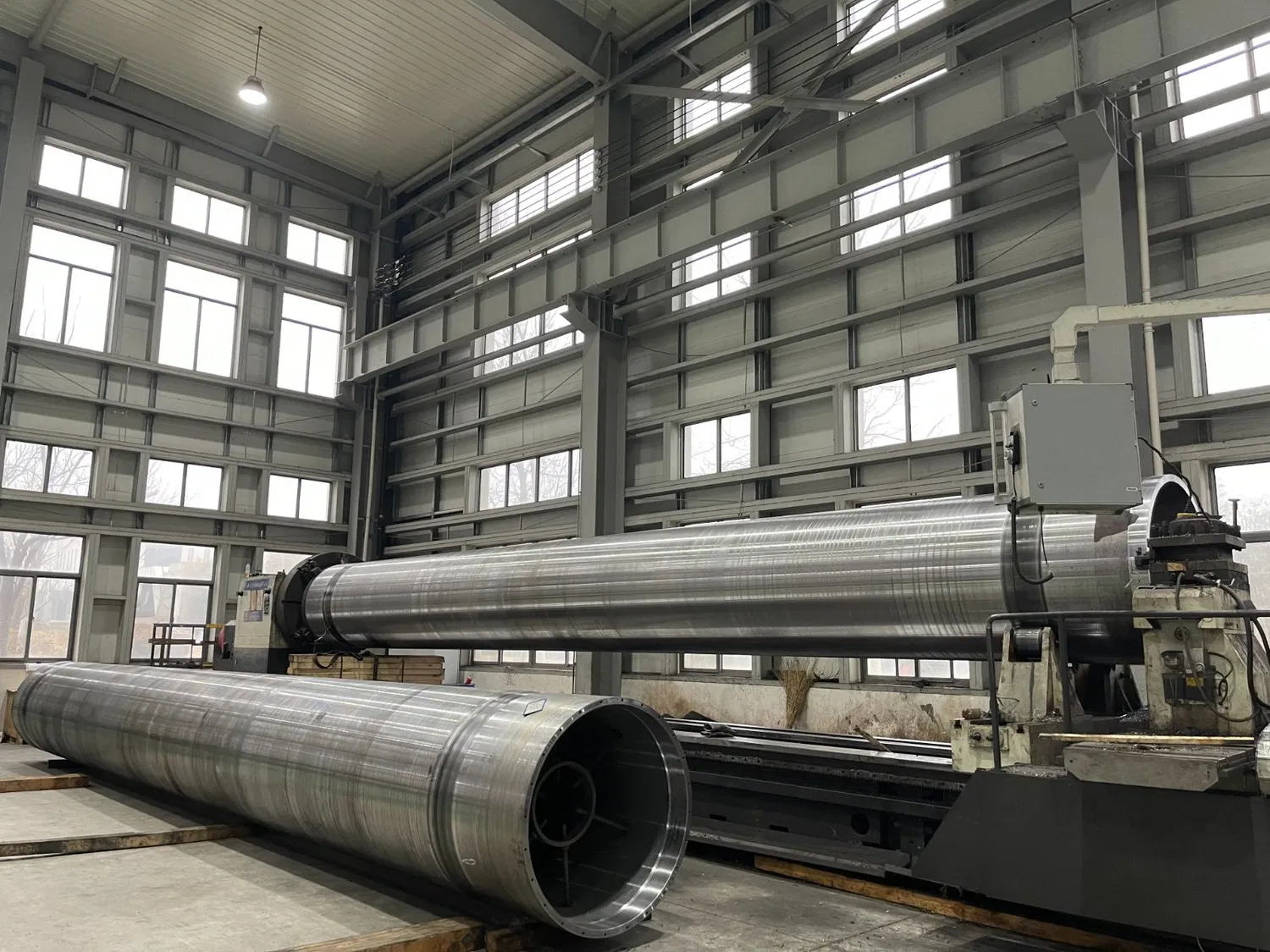

Since eliminating the loads that cause deflection isn't feasible, the primary strategy is to compensate for it. The most common method is roll crowning. This involves grinding the roll surface so that it has a slightly larger diameter in the center than at the ends, typically following a parabolic or sinusoidal curve. The idea is that when the roll deflects under load, its crowned shape will deform into a nearly straight line in the nip, resulting in a more uniform pressure profile. Calculating the correct crown is critical and depends on the expected operating load, roll geometry, and material. However, a fixed crown is only optimal for one specific loading condition. What happens when nip loads need to change for different paper grades or operating speeds? This is where variable crown (VC) rolls, also known as controlled crown rolls, come into play. These advanced rolls incorporate internal hydraulic or mechanical systems that allow operators to adjust the effective crown dynamically while the machine is running. This provides the flexibility to maintain a uniform nip profile across a wide range of operating conditions. Our company has significant expertise in designing and supplying both precision-ground crowned rolls and sophisticated VC roll systems tailored to specific application needs, ensuring optimal nip pressure control regardless of the operating parameters.
The Role of Roll Covers and Maintenance
While crowning and VC rolls address the mechanical bending of the roll body, the roll cover also plays a significant role in the nip mechanics. The cover's material properties – its hardness, elasticity, and thickness – influence how pressure is distributed within the nip contact zone. A softer, more elastic cover can help to distribute pressure more evenly and accommodate minor irregularities, effectively widening the nip and potentially smoothing out some of the pressure peaks caused by deflection. However, it's crucial to understand that the cover primarily influences the *local* pressure distribution within the nip width; it cannot fundamentally eliminate the large-scale pressure variations caused by the *overall* deflection of the roll body. Therefore, selecting the right cover material and design is important for optimizing performance in conjunction with proper crowning or VC roll operation. Our company offers a range of advanced roll cover materials specifically engineered to withstand demanding nip conditions and contribute to uniform paper properties. Furthermore, meticulous maintenance practices, including regular roll grinding to maintain the correct profile, precise bearing maintenance, and accurate roll alignment, are essential to ensure that deflection compensation methods work as intended. Neglecting maintenance can quickly negate the benefits of even the most sophisticated roll designs.
Achieving Consistent Quality Through Deflection Management
Ultimately, the goal of understanding and managing roll deflection is to achieve consistent, high-quality paper production run after run. Uncontrolled deflection leads directly to variability in critical paper properties like caliper, moisture, smoothness, and strength across the width of the paper web. This variability not only results in rejected paper and wasted resources but also causes significant operational headaches, from poor runnability on the paper machine itself to problems in downstream converting processes and customer complaints. By implementing effective strategies – accurate deflection prediction, precise roll crowning, the use of variable crown rolls where necessary, selection of appropriate roll covers, and diligent maintenance – papermakers can significantly mitigate the negative impacts of deflection. It’s worth noting that achieving a perfectly flat profile is often the target, leading to improved sheet uniformity, better winding performance (fewer defects like bursts or telescoping rolls), enhanced printability, and overall increased machine efficiency and profitability. Have you considered how proactively managing roll deflection could improve your mill's bottom line? Investing in the right technology and expertise to control nip profiles is often a direct investment in product quality and operational excellence.
Conclusion: The Ongoing Challenge of Roll Deflection
In conclusion, roll deflection remains a central and unavoidable aspect of paper machine operation, fundamentally influencing the pressure distribution in critical nips throughout the process. Its impact extends far beyond simple mechanics, directly affecting the uniformity and quality of the final paper product in terms of caliper, moisture, density, and surface characteristics. Understanding the physics of why rolls bend, how this bending translates into uneven nip pressure, and the specific consequences for paper quality in different machine sections is paramount for effective papermaking. Fortunately, through careful analysis, precise measurement techniques, and the application of compensation strategies like roll crowning and advanced variable crown roll technology, the detrimental effects of deflection can be successfully managed. Continuous attention to roll maintenance, cover selection, and alignment further ensures that these compensation methods remain effective. Addressing roll deflection head-on is not merely about solving an engineering problem; it's about ensuring consistent product quality, maximizing operational efficiency, and maintaining a competitive edge in the paper industry. Our company provides solutions, from advanced roll covers to sophisticated measurement and control systems, designed to help papermakers master the challenge of roll deflection.
