In the demanding world of paper manufacturing, the relentless rhythm of production is paramount. Central to this process are the paper machine rolls – massive, precision-engineered components that guide, press, dry, and finish the paper sheet. However, these critical assets are subjected to immense stress, high temperatures, and corrosive environments, making them susceptible to failure. When a roll fails unexpectedly, the entire production line grinds to a halt, triggering a cascade of costly consequences known as downtime. Preventing this downtime is not just a maintenance goal; it's a strategic imperative for profitability and operational stability. This is where predictive maintenance (PdM) emerges as a game-changing approach. Unlike traditional methods that react to failures or rely on fixed schedules, PdM uses advanced monitoring technologies to anticipate problems *before* they occur, allowing for planned interventions and maximizing uptime. It's about shifting from a reactive stance to a proactive, data-driven strategy focused specifically on the health of these indispensable paper machine rolls.

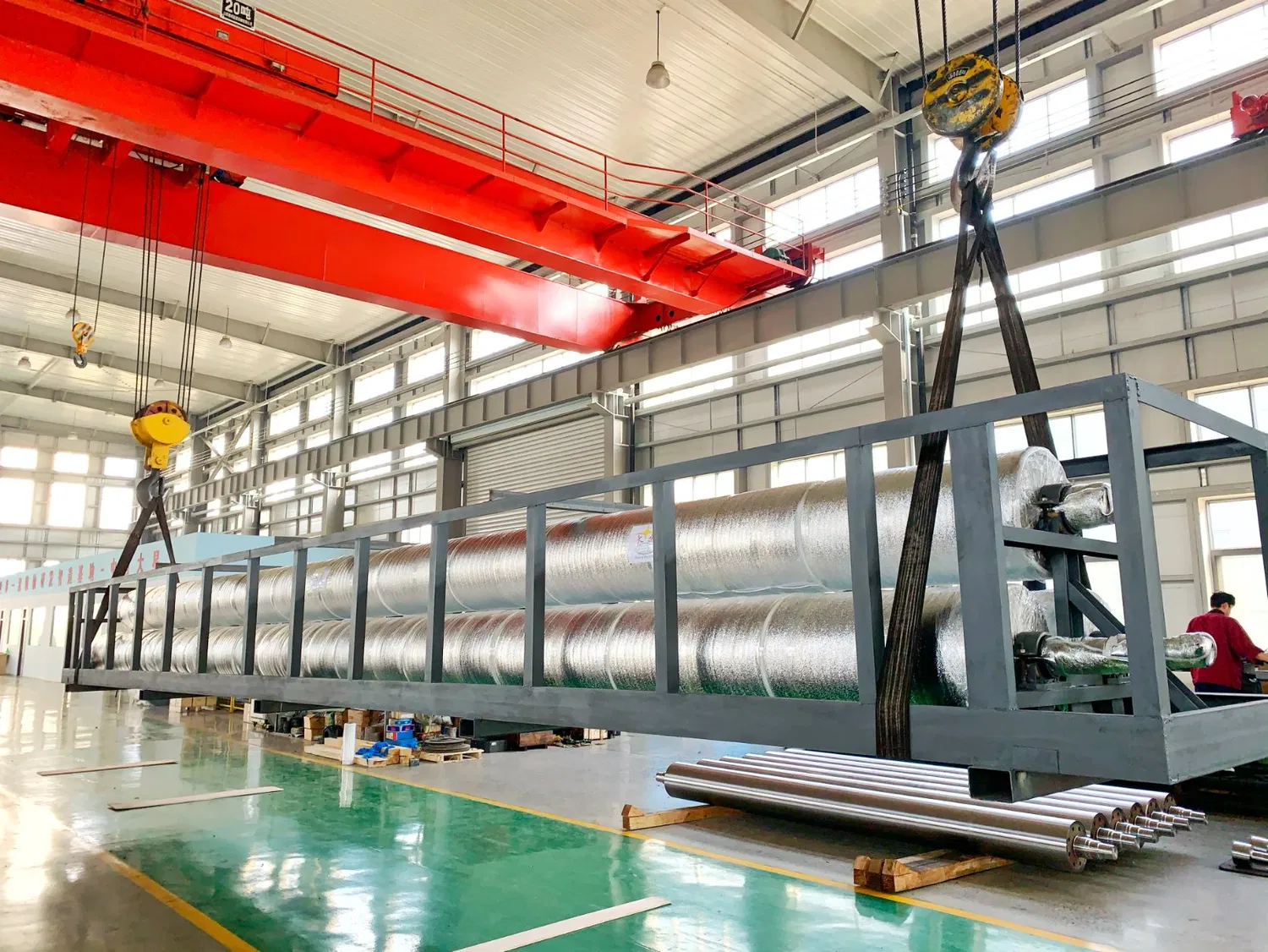

The Critical Role of Paper Machine Rolls
To truly appreciate the need for predictive maintenance, one must understand the diverse and demanding functions of paper machine rolls. From the initial forming section to the final reel, dozens, sometimes hundreds, of rolls work in concert. Consider the press rolls, exerting immense pressure to squeeze water from the fledgling paper web; failure here means immediate production loss and potential damage to expensive felts. Then there are the numerous dryer rolls (or cylinders), large, steam-heated vessels crucial for evaporation; issues like bearing failure or condensate system problems can lead to uneven drying, quality defects, and significant energy waste, not to mention safety hazards associated with steam. Calender rolls provide the final smoothness and gloss, operating under high pressure and temperature – a surface defect or bearing issue here directly impacts the saleable quality of the paper. Other critical components include guide rolls, suction rolls, and reel spools, each with unique operating conditions and failure modes. These rolls operate continuously at high speeds, endure fluctuating loads, chemical exposure (especially in the wet end), and thermal cycling. Frankly speaking, the operational environment is brutal, pushing materials and components like bearings, shells, journals, and drive systems to their limits. Even subtle issues like misalignment or imbalance can drastically shorten roll life and impact paper quality long before a catastrophic failure occurs. It's worth noting the sheer scale and precision involved; maintaining their operational integrity is non-negotiable.
Understanding Downtime: The Silent Profit Killer
Downtime in a paper mill isn't just an inconvenience; it's a direct assault on the bottom line. Have you ever truly calculated the full cost of an unexpected roll failure? It extends far beyond the immediate loss of production volume. First, there are the direct maintenance costs – procuring replacement parts (which can be substantial for large, specialized rolls), labour for removal and installation (often requiring significant manpower and specialized rigging), and potentially expedited shipping fees. Then comes the lost production value; every minute the machine isn't running represents lost revenue, which can rapidly accumulate into staggering sums, especially on high-speed machines. But the impact doesn't stop there. Unexpected stops can lead to off-specification products during shutdown and restart sequences, increasing waste and reprocessing costs. Quality inconsistencies stemming from deteriorating roll conditions prior to failure can also lead to customer complaints or rejected batches. Furthermore, emergency repairs carried out under pressure can pose significant safety risks to maintenance personnel compared to planned, controlled interventions. To be honest, the ripple effects can even strain supply chain commitments and damage customer relationships if delivery schedules are missed. Reducing unscheduled downtime associated with roll failures, therefore, translates directly into improved profitability, enhanced safety, and greater operational predictability. It’s arguably one of the most significant levers for financial performance in a paper mill.
Moving Beyond Reactive and Preventive Maintenance
Historically, maintenance strategies in many industries, including paper manufacturing, fell into two main camps: reactive and preventive. Reactive maintenance, often bluntly called "run-to-failure," involves fixing equipment only after it breaks down. While seemingly simple, this approach is incredibly disruptive and expensive due to unscheduled downtime, potential for secondary damage, and the chaos of emergency repairs. Recognizing these drawbacks, many mills adopted preventive maintenance, which involves servicing or replacing components based on fixed time intervals or operating hours, regardless of their actual condition. Think of changing the oil in your car every 5,000 miles. While an improvement over pure reactivity, preventive maintenance has its own significant limitations. It often leads to replacing components that still have substantial useful life remaining, incurring unnecessary costs for parts and labour. Conversely, it can fail to predict failures that occur *between* scheduled intervals, meaning unexpected downtime can still strike. For critical assets like paper machine rolls, where failure modes can develop rapidly and unpredictably due to varying operational stresses, relying solely on the calendar or hour meter is often inadequate and inefficient. Why is this shift away from purely time-based strategies so critical? Because it fails to account for the *actual* condition of the roll, leading to either wasted resources or unexpected catastrophic failures. The need for a more intelligent approach is clear.
The Core Principles of Predictive Maintenance (PdM)
Predictive Maintenance (PdM) represents a fundamental shift in maintenance philosophy. Instead of relying on schedules or waiting for failure, PdM focuses on monitoring the actual condition of operating equipment to detect the earliest signs of degradation. The goal is to predict *when* maintenance should be performed, allowing interventions to be scheduled proactively before failure occurs, minimizing disruption and maximizing component lifespan. At its heart, PdM employs a range of condition monitoring technologies. Key among these for paper machine rolls are vibration analysis, which detects mechanical issues like imbalance, misalignment, and bearing defects; thermal imaging (thermography), used to identify overheating components indicative of friction, electrical faults, or lubrication problems; oil analysis, which assesses the condition of lubricants and detects wear particles from internal components like bearings and gears; and ultrasonic testing, capable of identifying high-frequency sounds associated with bearing faults, lubrication issues, and even steam or air leaks often missed by other methods. Interestingly enough, these technologies provide distinct but often complementary insights into roll health. The data gathered is trended over time, establishing baseline normal operating conditions and identifying deviations that signal developing problems. This data-driven approach allows maintenance teams to move beyond guesswork and make informed decisions based on real-time equipment health.
Vibration Analysis Explained
Vibration analysis is arguably one of the most powerful PdM tools for rotating machinery like paper machine rolls. Every rotating component generates a unique vibration signature when operating normally. As defects develop – such as bearing flaws (inner race, outer race, ball/roller defects, cage damage), imbalance (due to deposits, wear, or damage to the roll shell), misalignment between couplings and drives, gear mesh problems in drive systems, or structural looseness – the vibration signature changes in predictable ways. Specialized sensors (accelerometers) are mounted on bearing housings or other strategic points on the roll assembly to capture these vibrations. The collected data is then processed using Fast Fourier Transform (FFT) analysis, which breaks down the complex vibration signal into its individual frequency components. Experienced analysts can interpret these frequency spectra to pinpoint the specific fault type and its severity. For instance, a developing inner race defect in a press roll bearing might show up as specific peaks at calculated frequencies related to the bearing geometry and rotational speed, often months before the bearing becomes noisy or overheats significantly. Similarly, roll imbalance typically manifests as a high amplitude peak at the rotational frequency (1x RPM). In my experience, implementing a routine vibration monitoring program can provide incredibly early warnings, allowing for planned bearing replacements during scheduled shutdowns rather than dealing with a catastrophic failure mid-production. Have you ever wondered how much downtime could be saved by detecting bearing issues months in advance?
Leveraging Thermal Imaging
While vibration analysis excels at detecting mechanical defects within rotating components, thermal imaging, or infrared thermography, provides a crucial complementary view by visualizing heat patterns. This non-contact technology uses specialized cameras to detect infrared radiation emitted by objects, translating it into a visual image where different temperatures correspond to different colours or shades. For paper machine rolls, thermal imaging is invaluable for quickly scanning large areas and identifying abnormal temperature variations. Overheating bearings are a classic application; a bearing running significantly hotter than adjacent ones is a clear indicator of excessive friction, often due to lubrication issues (too little, too much, or degraded lubricant) or advanced wear, signaling an impending failure. Thermal cameras can also pinpoint problems in steam-heated dryer rolls, such as faulty steam traps or internal condensate siphons causing uneven heating across the roll face, which directly impacts paper drying uniformity and quality. Electrical components associated with roll drives, like motor control centers, junction boxes, and connections, can also be scanned for hot spots indicating loose connections or overloading, preventing potential electrical fires or drive failures. It's worth noting the speed and safety advantage – inspections can often be performed while the machine is running, from a safe distance, providing an immediate visual indication of potential trouble spots that might otherwise go unnoticed until a serious problem develops.
The Power of Oil Analysis and Ultrasonics
Beyond vibration and heat, the condition of the lubricant within roll bearings and gearboxes offers profound insights into equipment health, achievable through oil analysis. Regularly sampling and analyzing lubricating oil can reveal a wealth of information. Laboratory tests can identify the presence and type of wear particles (iron, copper, chromium, etc.), indicating which components are degrading. It can detect contaminants like water (a major issue in wet-end rolls or due to seal failure), dirt, or process chemicals that compromise lubrication effectiveness and accelerate wear. Furthermore, analysis assesses the lubricant's own condition – its viscosity, additive depletion, oxidation levels – determining if it's still fit for service or needs changing. For enclosed gear drives often associated with roll systems, oil analysis is particularly critical for monitoring gear and bearing wear. Complementing these techniques is ultrasonic testing. This technology detects high-frequency acoustic signals (typically in the 20-100 kHz range), which are often the very first signs of problems like bearing defects (even before they show up clearly in vibration spectra), lack of lubrication (friction generates ultrasound), or leaks in compressed air or steam systems near the rolls. Handheld ultrasonic detectors can pinpoint the source of these otherwise inaudible sounds. For instance, detecting a characteristic "hissing" sound from a bearing can indicate it needs grease, allowing for corrective action before damage occurs. Many experts agree that integrating oil analysis and ultrasonic testing into a PdM program provides critical early warnings that other technologies might miss, offering a more comprehensive view of roll system health.
Implementing a PdM Program for Paper Machine Rolls
Successfully implementing a predictive maintenance program for paper machine rolls requires a structured approach, not just acquiring technology. The first step is critical asset identification: determining which rolls pose the highest risk in terms of failure impact (safety, cost, production loss) and historical failure rates. It's often impractical to monitor every single roll initially, so prioritization is key. Next comes selecting the appropriate monitoring technologies (vibration, thermal, oil analysis, ultrasonics, or a combination) based on the specific roll types, operating conditions, and common failure modes. Once technologies are chosen, establishing baseline data is crucial. This involves collecting initial measurements when the rolls are known to be in good condition to define their normal operating signature. Subsequently, regular data collection intervals must be set, along with specific alarm thresholds or deviation limits that trigger further investigation or maintenance action. Perhaps the most critical element is data analysis and interpretation – this requires trained personnel who can understand the complex data from vibration spectra, thermal patterns, or oil analysis reports and translate it into actionable maintenance recommendations. Integrating these findings with the mill's Computerized Maintenance Management System (CMMS) ensures that work orders are generated, scheduled efficiently, and tracked. It’s also vital to foster collaboration between the PdM team and maintenance planners/technicians. How does your current maintenance workflow integrate condition monitoring data, if at all?
The Tangible Benefits: More Than Just Avoiding Breakdowns
The primary driver for adopting predictive maintenance is undoubtedly downtime prevention, but the benefits extend far beyond simply keeping the machine running. By detecting faults early and scheduling repairs proactively, PdM significantly reduces the high costs associated with unexpected failures, including lost production, emergency labour, and potential secondary damage. However, a well-implemented program delivers much more. It leads to an extended lifespan for paper machine rolls and associated components like bearings and gears, as issues are addressed before they cause severe damage, maximizing the return on these expensive assets. Maintenance resources are optimized; instead of adhering to rigid schedules, maintenance is performed only when necessary based on actual condition, reducing unnecessary parts replacement and labour costs. This targeted approach also allows for better planning and scheduling of maintenance activities during planned shutdowns, improving overall maintenance efficiency. Safety is significantly enhanced by minimizing the need for hazardous emergency repairs under pressure. Furthermore, maintaining rolls in optimal condition contributes directly to improved product quality through consistent performance (e.g., uniform pressing, drying, calendering). Predictive insights can also lead to a reduction in the required inventory of critical spare parts, freeing up capital. Our company provides comprehensive solutions, including advanced monitoring sensors and intuitive analysis software, designed specifically to help paper mills harness these benefits and transition smoothly to a predictive maintenance strategy, turning maintenance from a cost center into a strategic advantage.
Challenges and Considerations
While the advantages of predictive maintenance are compelling, implementing a successful program for paper machine rolls is not without its challenges. Mills need to be aware of potential hurdles and plan accordingly. A significant consideration is the initial investment cost. Acquiring monitoring equipment (sensors, data collectors, thermal cameras, software) and potentially investing in training personnel can require upfront capital. However, it's crucial to view this not as an expense, but as an investment with a demonstrable return through reduced downtime and maintenance costs – the ROI often becomes apparent relatively quickly. Another challenge lies in the need for skilled analysts. Interpreting complex data from vibration spectra or oil analysis reports requires specific expertise. Mills may need to invest in training their existing staff or partner with external specialists, like our company, which offers analysis support services. Data management can also become complex as monitoring programs expand; robust systems are needed to store, trend, and analyze large volumes of condition data effectively. Finally, perhaps the most significant challenge is cultural: integrating PdM findings into existing maintenance workflows and decision-making processes requires a shift in mindset from reactive or purely preventive approaches. It demands commitment from management and clear communication across maintenance, operations, and engineering teams. Frankly speaking, overcoming these challenges requires strategic planning and a long-term perspective focused on the substantial operational improvements PdM delivers.
The Future: AI and Integrated Systems
The field of predictive maintenance is continually evolving, driven by advancements in sensor technology, data analytics, and connectivity. Looking ahead, the integration of Artificial Intelligence (AI) and Machine Learning (ML) promises to significantly enhance PdM capabilities for paper machine rolls. AI algorithms can analyze vast amounts of sensor data (vibration, temperature, acoustics, process parameters) far more rapidly and comprehensively than human analysts alone. These systems can identify subtle patterns and correlations that precede failures, potentially predicting issues with even greater accuracy and longer lead times. Imagine algorithms learning the unique failure signatures of specific rolls under varying operating conditions. Furthermore, the trend is towards more integrated systems. Instead of analyzing data from different technologies (vibration, thermal, oil) in isolation, future platforms will increasingly combine these data streams, along with process data from the Distributed Control System (DCS), into a single, holistic view of machine health. This integrated approach allows for more confident diagnostics, as findings from one technology can be corroborated by others. The rise of the Industrial Internet of Things (IIoT) facilitates this integration, enabling seamless data flow from sensors to cloud-based analytics platforms, providing real-time insights accessible from anywhere. What might the next evolution of roll monitoring look like? Perhaps continuously learning systems that not only predict failures but also recommend optimal operating adjustments to extend roll life based on real-time conditions.
In conclusion, preventing downtime for critical assets like paper machine rolls is fundamental to the success of any paper manufacturing operation. While traditional maintenance approaches have their place, they often fall short in addressing the unpredictable nature of roll failures and the immense costs associated with unscheduled stoppages. Predictive maintenance (PdM) offers a far more effective strategy, leveraging condition monitoring technologies like vibration analysis, thermal imaging, oil analysis, and ultrasonics to detect incipient faults and predict failures before they happen. This proactive, data-driven approach not only drastically reduces costly downtime but also extends equipment life, optimizes maintenance resources, improves safety, and contributes to better product quality. Implementing PdM requires investment and commitment, but the tangible returns in operational efficiency and profitability make it an essential evolution for modern paper mills striving for reliability and competitiveness. The journey towards truly predictive operations is ongoing, with exciting advancements in AI and integrated systems promising even greater insights and control in the future. Ultimately, embracing predictive maintenance for paper machine rolls is key to ensuring smooth, continuous, and profitable production.
