Welcome to the intricate world of paper manufacturing, a process where precision engineering meets high-speed production. At the heart of this complex machinery lies a seemingly simple yet absolutely critical component: the guide roll. Often overlooked, the guide roll paper machine system is fundamental to ensuring the smooth transport, proper tensioning, and overall integrity of the paper web as it travels through its various stages. From the forming section to the reel-up, these rolls dictate the path and behavior of the paper sheet. Neglecting their importance can lead to a cascade of problems, including web breaks, wrinkles, poor formation, and ultimately, costly downtime and wasted product. Understanding the function, selection, installation, and maintenance of guide rolls is therefore paramount for any facility aiming for efficiency, quality, and profitability in paper production. This guide delves into the essential aspects of guide rolls, providing insights to help optimize your paper machine's performance. Have you ever stopped to consider how many of these critical components are working in unison within your machine right now?

Understanding the Role of Guide Rolls

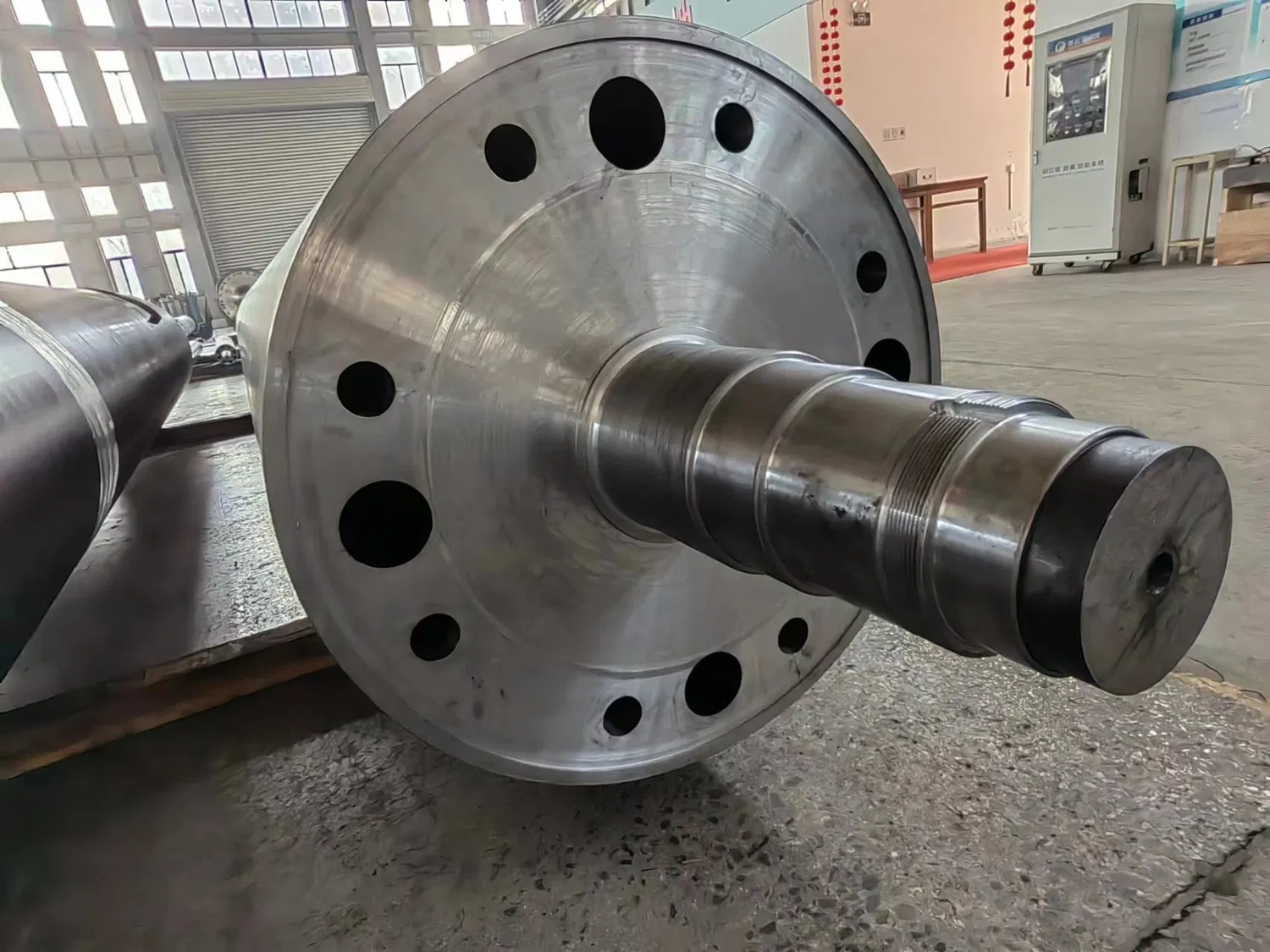

　　So, what exactly is a guide roll in the context of a paper machine? In essence, guide rolls are cylindrical components strategically placed throughout the paper machine's path to support, steer, and control the paper web. Their primary function is to ensure the continuous sheet of paper moves smoothly and precisely from one section to another without deviation, damage, or loss of tension. Think of them as the guardians of the paper web's journey. They come into contact with the paper under varying conditions – sometimes wet, sometimes dry, always moving at high speeds. Therefore, their design, material composition, and surface properties are critical. Common materials include steel, stainless steel, aluminum, and composite materials like carbon fiber, chosen based on factors like required stiffness, corrosion resistance, weight, and operating environment. The surface might be smooth, grooved, or covered with specific materials (like rubber or specialized coatings) depending on the application – whether it's primarily for guidance, tension adjustment, or preventing slippage. It's worth noting that even subtle variations in roll diameter, surface finish, or alignment can have significant impacts downstream. Their role extends beyond mere guidance; they are integral to maintaining consistent web tension, a factor absolutely crucial for preventing defects and ensuring uniform paper properties. Without properly functioning guide rolls, efficient paper production would frankly be impossible.

Why Guide Rolls are Non-Negotiable for Quality and Efficiency

　　The significance of guide rolls extends far beyond simple web transport. They are directly linked to the final quality of the paper and the overall operational efficiency of the machine. Consider the impact of misalignment or improper tension: the paper web can easily develop wrinkles, creases, or edge tears. These defects not only compromise the quality of the finished product, potentially leading to rejection, but can also escalate into full web breaks. A web break necessitates stopping the machine, cleaning up, re-threading the paper, and restarting production – a process that consumes valuable time and resources, drastically reducing overall equipment effectiveness (OEE). Furthermore, guide rolls play a critical role in maintaining the desired paper machine web handling characteristics. Consistent tension, managed effectively by guide rolls in conjunction with tension control systems, ensures uniform drying, calendering, and reeling. Uneven tension can lead to variations in paper thickness, density, and surface properties. Properly selected, installed, and maintained guide rolls contribute significantly to stable machine operation, minimizing unscheduled downtime and maximizing throughput. In my experience, neglecting guide roll condition is one of the most common, yet easily avoidable, causes of recurring production issues. Investing in high-quality rolls and meticulous maintenance practices pays dividends in terms of consistent product quality and reliable machine performance.

The Critical Impact of Tension Control

　　Let's delve deeper into the concept of web tension, as it's intrinsically linked to guide roll function. Maintaining precise and consistent tension throughout the paper machine is arguably one of the most challenging aspects of paper production. The paper web is subjected to numerous forces as it travels – pulling from downstream sections, drag from stationary elements, and the inherent stresses within the sheet itself, especially as its moisture content changes. Guide rolls, particularly those integrated into tension measurement and control loops (like load cell rolls), provide the physical means to manage these forces. If tension is too low, the web can become slack, leading to fluttering, poor tracking, wrinkles, and difficulties in subsequent processes like coating or calendering. Conversely, if tension is too high, the web can be stretched excessively, potentially causing narrowing (neck-in), thinning, or even breaking, particularly at weaker points or sheet defects. Guide rolls ensure the web wraps correctly around driven rolls and process rolls, allowing tension differentials between sections to be maintained accurately. The smooth, low-friction rotation of guide rolls is essential; excessive bearing friction can induce unwanted tension increases. Therefore, the condition of guide roll bearings and the overall roll balance are just as important as the roll's surface and alignment for effective tension management. Why is this approach so effective? Because it addresses a fundamental physical requirement for stable web transport at high speeds.

Exploring Different Types of Guide Rolls

　　Not all guide rolls are created equal; different locations and functions within the paper machine demand specific roll designs. The most common type is the plain guide roll, typically a simple, smooth-surfaced cylinder used primarily for supporting and directing the web. These are found throughout the machine, from the forming section through the press, dryer, and finishing sections. Then there are grooved rolls, which feature circumferential or helical grooves on their surface. These grooves can help manage air evacuation from under the web, particularly important in wet sections or at high speeds to prevent sheet flutter and maintain contact. They can also offer improved traction in certain applications. A particularly vital category is the spreader roll, also known as a bowed roll or curved roll. As the name suggests, these rolls have a slight bow or curve, designed to gently stretch the paper web outwards from the center towards the edges. This action is highly effective in removing wrinkles and preventing creases from forming, especially after processes that might introduce slackness or in wide machines where center-to-edge tension differentials can be problematic. Other specialized rolls exist too, such as heat transfer rolls (used in specific drying or calendering applications, though distinct from standard dryer cans) or rolls with specific engineered surfaces for unique web handling requirements. Understanding the purpose behind each type is key to troubleshooting and optimization.

Spotlight on Spreader Rolls

　　Let's focus more closely on spreader rolls, as their function is quite specialized and critical for defect prevention. Wrinkles are a common headache in paper manufacturing, often caused by uneven tension profiles across the web width or by slight misalignments leading to web contraction. A spreader roll combats this by inducing a controlled, gentle stretch. The roll typically consists of a stationary curved shaft around which rotate segmented bearing assemblies covered by a flexible, durable sleeve (often rubber or a synthetic polymer). As the paper web wraps around the rotating, bowed surface, the differential path length between the center and the edges forces the web to spread laterally. The amount of spreading action can often be adjusted by changing the orientation of the bow relative to the paper path. These rolls are strategically placed before critical processes like coating, sizing, calendering, or reeling, where a perfectly flat sheet is essential for uniform application or a smooth wind. Interestingly enough, the effectiveness of a spreader roll depends heavily on having sufficient wrap angle and adequate incoming web tension; without these, the roll cannot properly grip and spread the sheet. Selecting the right bow amount, cover material, and placement is crucial for optimal wrinkle removal without distorting the sheet or causing other issues. They are a prime example of how specialized roll design directly addresses specific production challenges.

Key Factors in Selecting the Right Guide Roll

　　Choosing the appropriate guide roll is not a one-size-fits-all decision. Several factors must be carefully considered to ensure optimal performance, longevity, and compatibility with the specific operating environment. Firstly, material compatibility is crucial. The roll material must withstand the chemical environment (e.g., water, sizing agents, coatings) and temperature variations it will encounter. Stainless steel offers excellent corrosion resistance for wet sections, while lighter materials like aluminum or carbon fiber might be preferred for high-speed applications or wide machines to minimize rotational inertia and deflection. Secondly, the surface finish and covering must match the application. A smooth surface might be adequate for simple guidance, but a specific coating (rubber, polyurethane, chrome, plasma coatings) might be needed for better grip, wear resistance, release properties, or preventing buildup. Grooving patterns, as mentioned earlier, can aid in air removal. Thirdly, operational parameters like speed, load, and tension requirements dictate the necessary roll stiffness, diameter, and bearing specifications. The roll must be rigid enough to resist deflection under load, which could otherwise cause tracking problems or uneven nip pressure if it's a lead-in roll. High speeds demand precision balancing and low-friction bearings. Finally, the overall machine design and paper grade influence the selection. A modern, high-speed machine producing delicate grades will have different guide roll requirements than an older machine running heavy board. Consulting with experienced suppliers who understand paper machine dynamics is often beneficial when selecting or upgrading your guide roll paper machine components.

Best Practices for Guide Roll Installation and Alignment

　　Even the highest quality guide roll will underperform or fail prematurely if not installed and aligned correctly. Proper installation begins with careful handling to avoid damaging the roll surface or bearing housings. Ensuring the mounting framework is clean, level, and structurally sound is fundamental. Bearings should be installed according to manufacturer specifications, using appropriate tools and techniques to avoid contamination or damage. However, the most critical aspect is alignment. Misalignment, even by small fractions of a degree, can cause a host of problems: uneven tension across the web, web tracking issues (wandering), increased friction and drag, uneven wear on roll surfaces and bearings, and ultimately, wrinkles or web breaks. Achieving precise alignment typically involves ensuring the roll is perfectly level and perpendicular (or parallel, depending on its function) to the machine centerline and adjacent rolls. Specialized tools like optical alignment systems or laser trackers are often used for critical applications to achieve the required precision for effective guide roll alignment procedures. It's not just about initial installation; alignment should be periodically checked, especially after maintenance interventions or if web handling problems arise. Many experts agree that meticulous alignment is one of the most cost-effective ways to improve machine runnability and reduce wear and tear on components. It requires patience and precision, but the payoff in stable operation is significant.

Essential Maintenance and Troubleshooting Strategies

　　Like any mechanical component operating in a demanding industrial environment, guide rolls require regular maintenance to ensure their continued reliable performance. A proactive maintenance schedule is far more effective than reactive repairs. Key maintenance tasks typically include:

• Cleaning: Regular cleaning prevents the buildup of fiber, dust, pitch, or coating residues on the roll surface. Such buildup can affect traction, cause marking on the paper, and potentially lead to imbalances. Cleaning methods depend on the roll surface and contaminant type.
• Lubrication: Bearings require proper lubrication according to the manufacturer's recommendations regarding type, amount, and frequency. Over-lubrication can be as detrimental as under-lubrication, potentially leading to increased operating temperatures or seal damage.
• Inspection: Regular visual inspections should check for surface damage (scoring, pitting, corrosion, wear), bearing noise or vibration, seal integrity, and any signs of misalignment or structural issues. More detailed inspections might involve measuring roll concentricity and balance.

Troubleshooting common issues often involves tracing back from the symptom. For instance, persistent wrinkles might point towards a misaligned guide roll, a malfunctioning spreader roll, or incorrect tension settings. Unusual bearing noise could indicate lubrication failure, contamination, or impending bearing collapse. Uneven wear on a roll surface often signals an alignment problem or uneven pressure. Keeping detailed maintenance logs and correlating observations with performance data can significantly aid in diagnosing recurring problems related to the guide roll paper machine system and implementing effective corrective actions before major failures occur.

Recognizing Early Warning Signs of Trouble

　　Proactive maintenance relies heavily on the ability to recognize subtle signs of impending problems with guide rolls before they escalate into major failures or cause significant production disruptions. What should maintenance personnel and operators be looking and listening for? Increased or unusual vibration emanating from the roll or its bearings is a classic early warning sign. This can be detected through handheld vibration analysis tools or sometimes even by touch (carefully!). Vibration often indicates bearing wear, imbalance, misalignment, or structural looseness. Similarly, changes in operating noise – grinding, squealing, or rumbling sounds from bearings – warrant immediate investigation. These noises usually suggest lubrication issues, contamination, or advanced wear within the bearing elements. Visual inspection can reveal uneven wear patterns on the roll surface, which strongly suggests misalignment or uneven loading. Look for localized polishing, scoring, or excessive wear on one side of the roll compared to the other. For covered rolls, check for cracking, blistering, or delamination of the cover material. Monitoring bearing temperatures using infrared thermometers can also provide clues; a bearing running significantly hotter than adjacent ones is often indicative of a problem. Frankly speaking, training operators and maintenance staff to be attentive to these subtle changes and encouraging prompt reporting can save enormous costs associated with unexpected breakdowns and emergency repairs. Ignoring these signs is rarely a winning strategy.

Innovations Shaping the Future of Guide Rolls

　　The field of guide roll technology is not static; continuous innovation aims to improve performance, efficiency, and reliability in paper manufacturing. One significant trend is the use of advanced materials. Lightweight materials like carbon fiber composites are increasingly employed, especially for very wide or high-speed machines. Their high stiffness-to-weight ratio reduces rotational inertia (allowing for faster acceleration/deceleration and potentially lower drive power) and minimizes deflection under load, which is critical for maintaining alignment and uniform nip pressures across wide spans. Another area of development is in surface coatings and treatments. New engineered coatings offer enhanced wear resistance, better release properties (reducing sticking and buildup), improved traction control, or specific functionalities tailored to unique process conditions. Think of coatings designed to resist aggressive chemical environments or high temperatures. Furthermore, the integration of smart technology is emerging. Guide rolls equipped with embedded sensors can provide real-time data on parameters like vibration, temperature, or even web tension directly at the roll. This data can feed into predictive maintenance systems, allowing for proactive interventions before failures occur, and can also provide valuable insights for process optimization. As demands for higher speeds, wider machines, and improved paper quality continue to grow, these innovations in guide roll design and functionality will play an increasingly vital role in pushing the boundaries of paper production efficiency. It's an exciting space to watch!

Optimizing Your Paper Machine with Quality Guide Rolls

　　In conclusion, the humble guide roll is far more than just a passive component within a paper machine; it is an active participant in ensuring product quality, operational efficiency, and overall profitability. From maintaining precise web alignment and tension control via effective paper machine web handling, to preventing costly defects like wrinkles and breaks, the impact of these rolls is profound. Achieving optimal performance hinges on a holistic approach encompassing careful selection based on application requirements, meticulous installation with precise alignment following recommended guide roll alignment procedures, and diligent, proactive maintenance routines focused on cleaning, lubrication, and regular inspection. Recognizing early warning signs of potential issues allows for timely intervention, preventing catastrophic failures and minimizing downtime. Have you recently evaluated the condition and performance of the guide rolls in your critical machine sections? Perhaps it's time to consider if upgrades or improved maintenance strategies could unlock further potential. Our company specializes in providing high-performance roll solutions and services tailored to the demanding needs of the paper industry. We understand the critical role these components play and offer expertise to help you select, install, and maintain the ideal guide rolls for your specific operational challenges, ultimately contributing to a smoother, more efficient, and higher-quality production process. Investing in the right Guide roll paper machine components is investing in the success of your entire operation.
