Welcome to the intricate world of papermaking, a process refined over centuries yet constantly evolving with technological advancements. At the heart of modern paper production lies sophisticated machinery designed for efficiency, speed, and quality. Among the most crucial components enabling this is the suction roll, a marvel of engineering pivotal to the dewatering process. Have you ever paused to consider how vast quantities of water are rapidly removed from the delicate paper web as it speeds through the machine? The answer, in large part, involves the clever application of vacuum technology embodied in the suction roll. Understanding its function, design, and maintenance is not just academic; it's fundamental for anyone involved in paper production, from operators and engineers to maintenance crews and mill managers. This component significantly impacts sheet properties, machine runnability, and overall operational costs, particularly energy consumption. Without effective dewatering facilitated by suction rolls, achieving the high speeds and consistent quality demanded by today's market would be, frankly speaking, impossible. This article delves deep into the mechanics, importance, and optimization of the suction roll paper machine, providing insights valuable for both seasoned professionals and those new to the field.
Understanding the Core Function: Dewatering Perfected

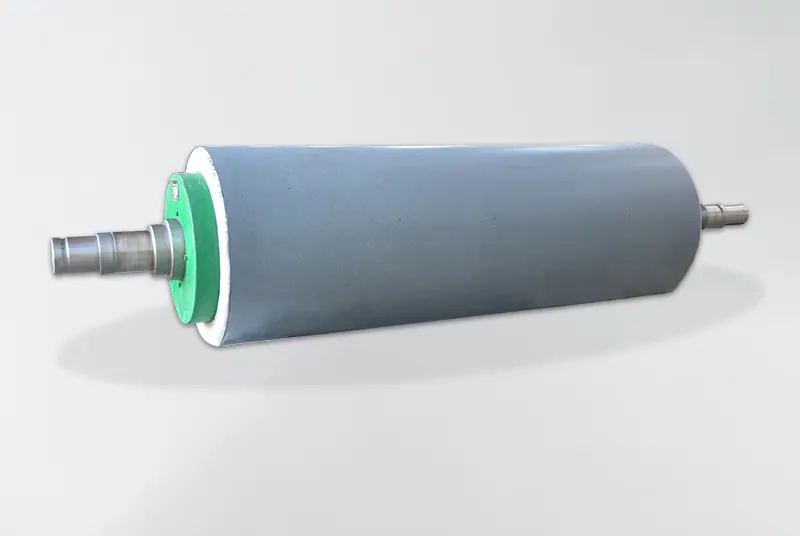

So, what exactly is a suction roll and why is it indispensable? At its core, a suction roll is a large cylindrical shell, typically made of bronze or stainless steel, perforated with thousands of precisely drilled holes. Inside this rotating shell sits a stationary vacuum box, sealed against the inner surface of the shell. This vacuum box is connected to a powerful vacuum system. As the wet paper web, often supported by a felt or fabric, travels over the rotating drilled surface, the vacuum applied through the holes draws water out of the sheet and into the internal box, from where it is discharged. This mechanism is central to paper machine dewatering principles. Suction rolls are strategically placed in critical sections of the paper machine, primarily the forming section (as a couch roll or pick-up roll) and the press section. In the forming section, the suction couch roll aids in transferring the fragile, newly formed web from the forming fabric to the press section while removing a significant amount of water. In the press section, suction press rolls work in conjunction with solid rolls, creating nips through which the sheet passes. The vacuum assists in removing water pressed out in the nip, preventing it from being reabsorbed by the sheet or the press felt, a phenomenon known as rewetting. This dual action – mechanical pressing and vacuum-assisted removal – dramatically increases dewatering efficiency compared to simple press rolls, allowing for higher machine speeds and producing a drier, stronger sheet entering the energy-intensive dryer section.
The Intricate Mechanics: How Suction Rolls Operate
Delving deeper into the mechanics, the effectiveness of a suction roll hinges on several key factors. The rotating outer shell, with its specific drilling pattern (often staggered for uniformity and noise reduction), provides the surface area for dewatering. The internal, stationary vacuum box is the heart of the operation. It doesn't typically span the entire inner circumference; instead, it's designed to apply vacuum only over a specific arc where dewatering is desired. Crucial to maintaining the vacuum are the seals – typically made of rubber or synthetic materials – positioned longitudinally along the edges of the vacuum box and circumferentially at the ends (end deckles). These seals rub against the smooth inner surface of the rotating shell, preventing air from leaking into the vacuum zone and ensuring that the vacuum pump's capacity is directed effectively towards pulling water through the holes. The level of vacuum applied is a critical operating parameter, carefully controlled based on the paper grade, machine speed, and desired sheet properties. Too little vacuum results in insufficient dewatering, while excessive vacuum can consume unnecessary energy, potentially damage the sheet or felt, and increase noise levels. The duration the sheet spends over the vacuum zone (dwell time), determined by the roll diameter, machine speed, and vacuum box width, also significantly influences the amount of water removed. It's a delicate balance, optimized through experience and careful process control.
Vacuum System Considerations
It's worth noting that the vacuum system itself is a complex and energy-intensive part of the paper machine. It typically involves large liquid ring vacuum pumps, separators to remove the extracted water from the air stream, and extensive piping. The design and maintenance of this system are paramount for the reliable and efficient operation of the suction rolls. Ensuring adequate vacuum pump capacity, minimizing leaks throughout the system (including the roll seals), and maintaining clean separators are essential tasks. Inefficient vacuum systems not only compromise dewatering performance but also represent a significant operational cost due to their high energy consumption. Many mills continuously seek ways to optimize their vacuum systems, exploring variable speed drives for pumps or implementing advanced control strategies to match vacuum generation with actual process needs, thereby reducing energy waste. Frankly speaking, optimizing the vacuum supply is just as important as maintaining the roll itself for overall system efficiency.
Design Variations and Material Choices
Not all suction rolls are created equal. Their design and materials are tailored to their specific position and function within the paper machine. Key suction roll design considerations include the shell material, drilling pattern, cover material (if used), internal vacuum box configuration, and sealing system. Shells were traditionally made from bronze alloys due to good corrosion resistance and machinability. However, stainless steel alloys (often duplex stainless steel) have become increasingly common, offering superior strength, corrosion resistance (especially against modern papermaking chemicals), and fatigue life. The drilling pattern – the size, number, and arrangement of holes – is meticulously designed to balance open area (for dewatering capacity) with shell strength and noise characteristics. Staggered patterns are generally preferred over straight patterns for reduced noise and more uniform vacuum application. Many suction rolls, particularly press rolls, feature rubber or polyurethane covers over the shell. These covers provide the desired nip properties (hardness, resilience), protect the shell from damage, and can influence dewatering and sheet release. The internal vacuum box can have single or multiple vacuum zones, allowing for different vacuum levels to be applied across the width or along the arc of contact, offering finer control over the dewatering process. Seal design and material are also critical for performance and longevity, with various proprietary designs aimed at minimizing friction, wear, and air leakage.
The Powerhouse of the Press Section: Suction Press Rolls
The press section's primary goal is to mechanically remove as much water as possible before the sheet enters the dryer section, as evaporating water with steam is far more expensive than removing it mechanically. Suction press rolls are instrumental in achieving this goal efficiently. When paired with a solid roll to form a press nip, the suction roll performs a vital dual function. As the sheet and felt(s) are compressed in the nip, water is squeezed out. The vacuum applied through the suction roll's holes immediately draws this expressed water away, preventing it from being reabsorbed by the sheet or felt as the pressure is released upon exiting the nip. This prevention of rewetting is a major advantage over plain presses, especially at higher speeds. Furthermore, the vacuum helps to hold the sheet onto the roll surface through the nip, which can improve runnability and sheet transfer. By significantly increasing sheet dryness leaving the press section (typically aiming for 40-50% dryness or higher), suction press rolls directly contribute to reduced steam consumption in the dryer section, leading to substantial energy savings and lower operating costs. They also influence paper properties such as density, smoothness, and strength. The configuration can vary – single-felted or double-felted presses, often arranged in multiple successive press nips, each potentially employing a suction roll to maximize water removal. Optimizing nip loading, vacuum levels, and felt conditioning is key to maximizing the performance of the suction press roll.
Essential Roles in the Forming Section: Couch and Pick-Up
While often highlighted for their role in pressing, suction rolls are also indispensable at the beginning of the process, in the forming section. The suction couch roll is typically the final roll supporting the forming fabric, located just before the sheet is transferred to the press section. Its primary functions are to assist in dewatering the newly formed sheet and to facilitate the transfer (or "couching") of the web off the forming fabric. The vacuum applied through the couch roll pulls water through the fabric and helps consolidate the sheet structure. Importantly, it provides the necessary vacuum holding force to ensure the fragile, wet web reliably separates from the forming fabric and adheres to the pick-up felt (or directly to the press felt in some configurations) for its journey into the press section. Without sufficient vacuum at the couch, sheet transfer becomes erratic, leading to web breaks and lost production. Another critical role, often found in twin-wire formers or machines with specific transfer needs, is played by the suction pick-up roll. This roll uses vacuum to lift the sheet cleanly from the forming fabric onto a transfer felt, ensuring a smooth and stable transition into the press section, particularly vital at high operating speeds where air dynamics can interfere with sheet transfer. The precise vacuum level and positioning of these forming section suction rolls are critical for machine runnability and the initial quality of the paper web.
Navigating Maintenance and Operational Hurdles
Despite their robust construction, suction rolls operate in a demanding environment and require diligent maintenance to ensure optimal performance and longevity. Common operational challenges include plugged holes, roll cover damage, shell corrosion or erosion, vacuum seal wear, and bearing issues. Plugged holes, often caused by fiber, fillers, or contaminants, reduce the open area and impair dewatering efficiency. Regular high-pressure water jet cleaning, both internal and external, is essential. Roll covers, if present, can suffer from wear, abrasion, chemical attack, or impact damage, affecting nip performance and potentially damaging felts. Regular cover inspection and periodic regrinding are necessary to maintain the correct profile and surface condition. Shell integrity is paramount; corrosion (especially in aggressive chemical environments) or erosion can weaken the shell, potentially leading to fatigue failure – a catastrophic event. Non-destructive testing methods are often employed during shutdowns to assess shell condition. Vacuum seal wear is another major concern, as worn or damaged seals lead to vacuum loss, increased energy consumption by the vacuum pumps, and reduced dewatering. Monitoring vacuum levels and seal water consumption can indicate seal problems. Regular inspection and timely replacement of seals and deckles are crucial. Bearing failures can also cause significant downtime and damage. Proper lubrication, alignment, and vibration monitoring are key preventative measures. In my experience, a proactive and well-documented maintenance strategy is far more cost-effective than reactive repairs.
Troubleshooting Common Suction Roll Issues
When dewatering performance drops or operational issues arise, systematic troubleshooting is required. Is the problem low sheet dryness after the press? Potential causes include low vacuum supply, plugged roll holes, worn seals, incorrect nip loading, or issues with the press felt (compaction, contamination). Are there streaks in the paper? This might indicate non-uniform vacuum due to plugged holes in specific areas, uneven nip loading, or a damaged roll cover. High noise levels? This could stem from the drilling pattern, excessive vacuum, worn seals creating turbulence, or bearing problems. High vacuum pump energy consumption? Check for leaks throughout the system, starting with the roll seals and extending to piping and separators. Addressing these issues often involves a combination of operational adjustments (e.g., vacuum level, nip load), thorough cleaning, component replacement (seals, covers), or mechanical repairs. Having skilled maintenance personnel familiar with suction roll intricacies is invaluable. Our company often assists clients in diagnosing complex suction roll problems, leveraging our expertise in roll design and paper machine operation to find effective solutions.
Pushing the Boundaries: Advancements and Innovations
The technology behind the suction roll paper machine is not static; continuous innovation aims to improve efficiency, reliability, and performance. Material science plays a significant role, with ongoing development of advanced stainless steel alloys and composite materials offering enhanced strength-to-weight ratios, superior corrosion resistance, and longer fatigue life for shells. Roll cover technology also advances, with new polymer formulations providing better wear resistance, improved water release characteristics, and tailored hardness profiles for specific applications. Drilling technology and pattern optimization are areas of focus, using computational fluid dynamics (CFD) and finite element analysis (FEA) to design hole geometries and arrangements that maximize dewatering while minimizing noise, energy consumption, and stress concentrations in the shell. Seal designs are constantly being refined to reduce friction, improve sealing effectiveness over a wider range of operating conditions, and extend service life, thereby minimizing air leakage and vacuum pump load. Furthermore, integration with advanced process control systems allows for more precise, real-time adjustment of vacuum levels based on measured sheet properties or machine conditions, optimizing dewatering and energy use dynamically. It's truly fascinating how seemingly minor refinements in design or materials can translate into significant gains in overall paper machine efficiency and product quality. We pride ourselves on incorporating these state-of-the-art features into our suction roll solutions.
Optimizing Performance for Peak Efficiency
Achieving peak performance from a suction roll requires more than just having a well-designed and maintained component; it demands careful operational optimization. Operators and engineers need to understand the interplay between various parameters. Adjusting vacuum levels is a primary tool: finding the sweet spot that maximizes water removal without causing sheet sealing (where airflow is excessively restricted) or consuming excess energy is key. For suction press rolls, nip loading must be set correctly in conjunction with vacuum application; simply increasing pressure doesn't always yield better results and can damage the roll cover or felt. Monitoring the condition of press felts is also crucial, as a compacted or contaminated felt cannot effectively receive or transport water away, regardless of how well the suction roll is functioning. Implementing rigorous and regular cleaning schedules for the roll shell (both internal and external surfaces) prevents hole plugging and maintains maximum open area. Keeping accurate records of operating parameters, maintenance activities, and performance indicators (like sheet dryness, vacuum levels, drive loads) allows for trend analysis and early detection of potential problems. Have you considered how seemingly small adjustments in vacuum or nip pressure could impact your final paper quality and energy bills? Regularly reviewing and fine-tuning these settings based on operational data and product requirements is essential for sustained efficiency.
Conclusion: The Indispensable Role in Modern Papermaking
In summary, the Suction roll paper machine stands as a cornerstone of efficient and high-quality paper production. From its crucial role in initial dewatering and sheet transfer in the forming section to its powerhouse performance in maximizing water removal in the press section, its impact is profound. The sophisticated interplay of the perforated shell, internal vacuum system, and precision seals allows for rapid, controlled water removal, enabling higher machine speeds, reducing energy consumption in the dryer section, and influencing critical final paper properties. Understanding the design variations, operational principles, maintenance requirements, and optimization strategies associated with suction rolls is therefore essential for any papermaking operation striving for excellence. Addressing challenges like hole plugging, seal wear, and optimizing vacuum levels requires a combination of diligent maintenance, skilled operation, and leveraging technological advancements. As demands for efficiency and sustainability continue to grow, the ongoing refinement and optimal utilization of suction roll technology will remain paramount. If you are looking to enhance your paper machine's dewatering efficiency, improve runnability, or address specific challenges related to your existing suction rolls, exploring advanced solutions and expert support is a logical next step.
