Welcome to an in-depth exploration of a truly pivotal component within the complex world of papermaking: the press section. While every stage of the paper machine plays its part, the press section holds a unique significance, acting as the primary mechanical dewatering stage after the forming section. Have you ever stopped to consider just how much water needs to be removed and the sheer mechanical forces involved? It's quite staggering. The efficiency and effectiveness of the press section directly impact not only the dryness of the paper web entering the dryer section but also crucial final paper properties like strength, smoothness, and bulk. Frankly speaking, a poorly performing press section can lead to increased energy consumption in the dryers (the most energy-intensive part of the process), reduced machine speed, and compromised paper quality. Understanding the intricacies of the Press roll paper machine components, their operational dynamics, and maintenance requirements is therefore paramount for any papermaking operation striving for optimal efficiency and product excellence. This critical stage involves passing the wet paper web, supported by porous felts, through one or more nips formed by large, heavily loaded rolls. The intense pressure in these nips squeezes water out of the sheet and into the felts, significantly increasing the web's solids content before it encounters the heat of the dryers.
The Critical Role of Dewatering in the Press Section
The fundamental purpose of the press section is deceptively simple: remove as much water as mechanically possible before the paper sheet enters the dryer section. However, the underlying physics and engineering are remarkably complex. Why is this mechanical dewatering so vital? It's primarily about energy efficiency and paper quality. Removing water mechanically in the press section is significantly cheaper, energetically speaking, than evaporating it in the dryer section. Every percentage point increase in sheet dryness leaving the press section translates directly into substantial energy savings and potentially higher machine speeds. Think about the sheer volume of water present in the sheet after the forming section – it can still be over 80% water! The press section aims to bring this down dramatically, often targeting exit consistencies of 40-50% solids or even higher in modern machines. Beyond energy, the pressing process fundamentally alters the sheet structure. The compressive forces consolidate the fibre network, bringing fibres closer together, which significantly enhances sheet strength (like tensile and burst strength) and improves surface properties such as smoothness. This consolidation also influences the sheet's density and caliper (thickness). It's worth noting that the manner in which this pressure is applied – the nip pressure profile, dwell time, and roll/felt properties – all interact to determine the final outcome. Effective paper dewatering here sets the stage for efficient drying and determines many end-use characteristics of the paper.
Key Components and Their Functions

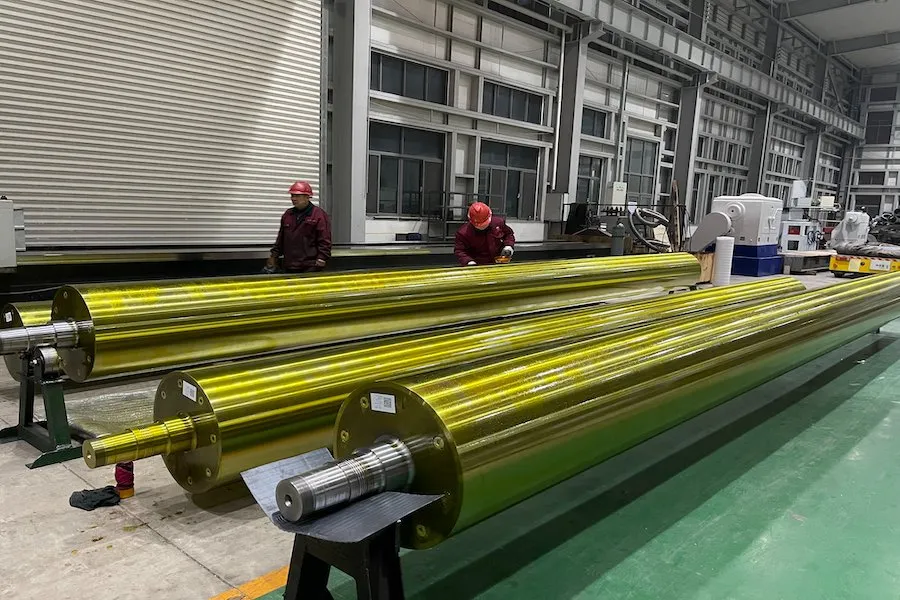

A typical press section is an assembly of several critical components working in concert. At the heart are the press rolls themselves. These are large, heavy cylinders that form the pressure nips. They come in various designs, each suited for specific applications and positions. Common types include solid (plain) rolls, suction rolls (with internal vacuum boxes to help pull water through drilled holes), blind-drilled rolls (holes that don't go all the way through, creating void volume for water), and grooved rolls (with surface grooves to provide channels for water escape). The choice of roll type and its surface characteristics (the roll cover) is crucial for efficient water removal and avoiding sheet marking. Supporting and carrying the fragile paper web through these high-pressure nips are the press felts. These are highly engineered textiles, typically made from synthetic fibres, designed to be porous, resilient, and durable. Their job is twofold: to cushion the sheet as it passes through the nip and, critically, to accept the water squeezed from the sheet and carry it away to be removed by conditioning systems (like uhle boxes). The condition and design of the felt are paramount for performance. Finally, robust loading systems (hydraulic or pneumatic) apply the necessary pressure between the rolls, while doctor blades keep roll surfaces clean, and various guiding and tensioning rolls manage the felt runs. Understanding how each part contributes is key to troubleshooting and optimization.
Understanding Different Press Roll Types
Diving deeper into the press rolls reveals a fascinating array of designs tailored for specific dewatering challenges. The choice isn't arbitrary; it depends on the paper grade, machine speed, and position within the press section. Suction rolls, for instance, are often used in early press positions or on faster machines. By applying vacuum through the shell perforations, they actively assist water removal from both the sheet and the felt, reducing the risk of sheet crushing at high speeds and loads. However, they can sometimes leave a shadow mark on the sheet and require significant vacuum energy. Grooved rolls offer an alternative pathway for water expulsion. The grooves machined into the roll cover provide channels for water pressed into the felt to flow out of the nip area axially or circumferentially, preventing hydraulic pressure buildup within the nip that could re-wet the sheet or cause crushing. They are effective and widely used but require careful maintenance to keep the grooves clean. Blind-drilled rolls represent a sort of hybrid concept. The blind (non-penetrating) holes create void volume within the roll cover itself, acting as temporary reservoirs for water during the nip dwell time. This reduces hydraulic pressure without requiring external vacuum or open grooves, often resulting in good dewatering with less sheet marking potential than suction or grooved rolls in some applications. Plain or solid rolls are simpler but generally offer lower dewatering capacity as water must travel further through the felt structure to escape the nip. The synergy between the roll type, its cover material, and the felt design is what ultimately dictates performance.
The Mechanics of Nip Pressure and Water Removal
The magic of water removal in the press section happens within the nip – the small contact zone where two rolls press together with the felt and paper sheet sandwiched between them. The intensity of pressure (nip load divided by nip width) and the duration the sheet spends under this pressure (dwell time, related to machine speed and nip width) are the primary drivers of dewatering. As the sheet and felt enter the nip, the pressure rapidly increases, compressing the structure. This compression reduces the void volume within the paper sheet, forcing water out into the more porous felt structure. Simultaneously, the felt itself is compressed, reducing its own water-holding capacity and creating a pressure gradient that drives water away from the sheet-felt interface. It's a dynamic process influenced by multiple factors. Higher nip pressure generally leads to more water removal, but there's a limit – excessive pressure can crush the sheet structure, damage fibres, or cause detrimental densification. The characteristics of the roll covers (hardness, material) and the felt (compressibility, void volume, permeability) play a huge role in determining the actual pressure profile within the nip and how efficiently water is transferred and removed. Effective nip pressure control paper making strategies involve not just setting the right load but also ensuring that pressure is uniformly distributed across the machine width to achieve a consistent moisture profile in the final sheet. Have you considered how variations in roll diameter or cover hardness across the machine width could impact this uniformity?
Importance of Roll Covers and Felt Technology
The surfaces that actually contact the paper web and felt under intense pressure are the roll covers. These are not merely protective layers; they are highly engineered components critical to press performance. Materials like rubber, polyurethane, and advanced composites are used, each offering different properties in terms of hardness, resilience, wear resistance, and water affinity. The cover's hardness, for example, directly influences the nip width and the peak pressure experienced by the sheet. Softer covers create wider nips and lower peak pressures, which can be beneficial for certain grades or preventing sheet crushing, while harder covers yield narrower, more intense nips, potentially maximizing water removal. Cover design, such as grooves or blind drilling as discussed earlier, provides the necessary void volume or escape channels for expressed water. Equally important are the press felts. Modern felts are sophisticated structures, often multi-layered, designed to optimize water handling, provide excellent sheet support, resist compaction over time, and be easily cleaned. The felt's permeability, void volume, surface characteristics, and compressibility must be carefully matched to the machine conditions, paper grade, and press roll types. A felt that compacts too quickly or becomes plugged with contaminants will lose its ability to accept water, drastically reducing press efficiency. In my experience, investing in the right combination of advanced roll covers and high-performance felts, tailored to the specific application, often yields significant returns through improved dewatering, longer component life, and better sheet quality. Continuous felt conditioning (cleaning and dewatering) is also non-negotiable for sustained performance.
Strategies for Press Section Optimization
Achieving peak performance from a press section isn't a one-time setup; it requires ongoing monitoring, analysis, and adjustment. Effective paper machine press section optimization involves a holistic approach. One cornerstone is ensuring nip uniformity. Using tools like electronic nip impression systems allows mills to precisely measure the pressure profile across the machine width and make corrective adjustments to roll crowns or loading systems. Uneven nip pressure is a common culprit behind moisture profile issues downstream. Regular and effective felt conditioning is another critical area. This includes optimizing uhle box vacuum levels, ensuring shower pressures and placements are correct, and potentially employing chemical cleaning programs to remove contaminants that clog the felt structure. Monitoring felt permeability and caliper over its lifespan provides valuable data for deciding replacement intervals. Furthermore, careful selection and maintenance of roll covers are essential. This includes periodic grinding to maintain the correct profile and surface condition, as well as monitoring for wear or damage. Analyzing process data – incoming/outgoing sheet moistures, felt water content, drive loads, vacuum levels – can reveal trends and opportunities for improvement. Many experts agree that implementing advanced process control strategies, potentially leveraging real-time sensor data, can help maintain optimal operating conditions automatically. Our company offers specialized roll cover solutions and diagnostic services designed to tackle these optimization challenges, helping mills achieve higher dryness levels and more stable operation.
Maintenance Practices and Troubleshooting Common Issues
Like any hard-working industrial equipment, the press section requires diligent maintenance to ensure reliability and longevity. Preventative maintenance is far more cost-effective than dealing with unexpected breakdowns. Regular inspections should focus on key wear components: roll covers (checking for cracks, delamination, wear), bearings (listening for noise, checking temperature, lubrication), felts (visual inspection for wear patterns, damage, contamination), doctor blades (checking for wear, proper loading, oscillation), and loading systems (checking for leaks, proper pressure). Lubrication schedules for bearings and other moving parts must be strictly adhered to. Roll alignment is also critical; misaligned rolls can cause uneven nip pressure, premature felt wear, and tracking issues. Troubleshooting common problems often requires a systematic approach. For instance, if the moisture profile exiting the press is uneven, potential causes include non-uniform nip pressure, uneven felt permeability (plugging), or issues further upstream. Felt plugging itself might be caused by stickies, fillers, or inadequate conditioning. Roll barring or vibrations can indicate bearing issues, roll imbalance, or problems with the cover or doctoring. Sheet marking might point to dirty felts, damaged roll covers, or improper vacuum levels on suction rolls. Keeping detailed maintenance logs and tracking operational parameters helps identify patterns and diagnose root causes more effectively. Frankly speaking, neglecting routine maintenance is almost guaranteed to lead to costly downtime and suboptimal performance over time.
Impact on Final Paper Quality
The influence of the press section extends far beyond just water removal and energy savings; it profoundly shapes the final quality attributes of the paper. The consolidation that occurs under nip pressure significantly impacts the sheet's structural integrity. Increased fibre-to-fibre bonding enhances tensile strength, burst strength, and stiffness, which are critical for many paper grades, from packaging boards to printing papers. Surface properties are also heavily influenced. Pressing tends to smooth the sheet surface, reducing roughness and improving printability. A smoother surface allows for better ink transfer and higher print gloss. However, the type of pressing matters. For instance, excessive or harsh pressing can lead to a loss of bulk (thickness) and opacity, which might be undesirable for certain grades like book papers or tissues. The goal is often to find the optimal balance – achieving sufficient strength and smoothness without sacrificing too much bulk or causing detrimental densification. Therefore, strategies aimed at paper quality improvement press rolls and felts focus on achieving uniform pressure application and efficient water removal without damaging the sheet structure. Issues like sheet marking from rolls or felts, or two-sidedness caused by uneven water removal, are direct quality defects originating in the press section. Controlling the process here is fundamental to meeting the end-user's specifications for strength, appearance, and convertibility.
Emerging Technologies and Future Trends
While the fundamental principles of press dewatering remain, technology continues to evolve, pushing the boundaries of efficiency and quality. One significant development over the past few decades has been the advent of the shoe press (also known as an Extended Nip Press or ENP). Unlike traditional roll presses that create a narrow, high-intensity nip, a shoe press utilizes a hydraulically loaded stationary "shoe" pressing against a roll. This creates a much wider nip, allowing for significantly longer dwell time under pressure. This extended dwell time, even at moderate peak pressures, allows for more water removal compared to conventional roll nips, particularly on heavier grades or faster machines. Shoe presses can often achieve exit solid contents exceeding 55%, leading to substantial energy savings in the dryer section and potential for increased production. Ongoing developments focus on optimizing shoe press designs, improving belt and roll cover materials for longer life and better performance, and refining control strategies. Other areas of innovation include advanced sensor technologies for real-time monitoring of nip profiles and felt conditions, smarter diagnostic systems leveraging machine learning to predict failures or optimize settings, and novel roll cover materials offering enhanced dewatering or specific surface properties. The drive for greater energy efficiency, higher speeds, improved quality, and the ability to process more recycled fibre continues to spur innovation in press section technology. It’s an exciting area to watch as papermakers seek ever-higher levels of performance.
Conclusion: Mastering the Press Section for Optimal Papermaking
In conclusion, the Press roll paper machine section stands as a critical control point in the papermaking process, wielding significant influence over energy consumption, machine speed, and final product quality. From the fundamental mechanics of nip pressure and water removal to the sophisticated interplay between rolls, covers, and felts, mastering this section requires a blend of solid engineering principles, careful operational control, and diligent maintenance. We've explored the core components, the physics of dewatering, the importance of materials technology in covers and felts, and strategies for optimization and troubleshooting. Understanding how factors like nip uniformity, felt conditioning, and roll cover integrity impact both efficiency and sheet properties is essential. Technologies like shoe presses represent significant advancements, but even conventional press sections offer considerable scope for improvement through careful management. Is your press section currently operating at its full potential? Evaluating its performance, focusing on preventative maintenance, and exploring optimization opportunities – perhaps related to nip analysis, felt conditioning, or upgraded components like those our company provides – are clear next steps towards enhancing your overall papermaking operation. Investing time and resources in understanding and optimizing your press section is, without doubt, a high-leverage activity for improving both your bottom line and the quality of your paper.
