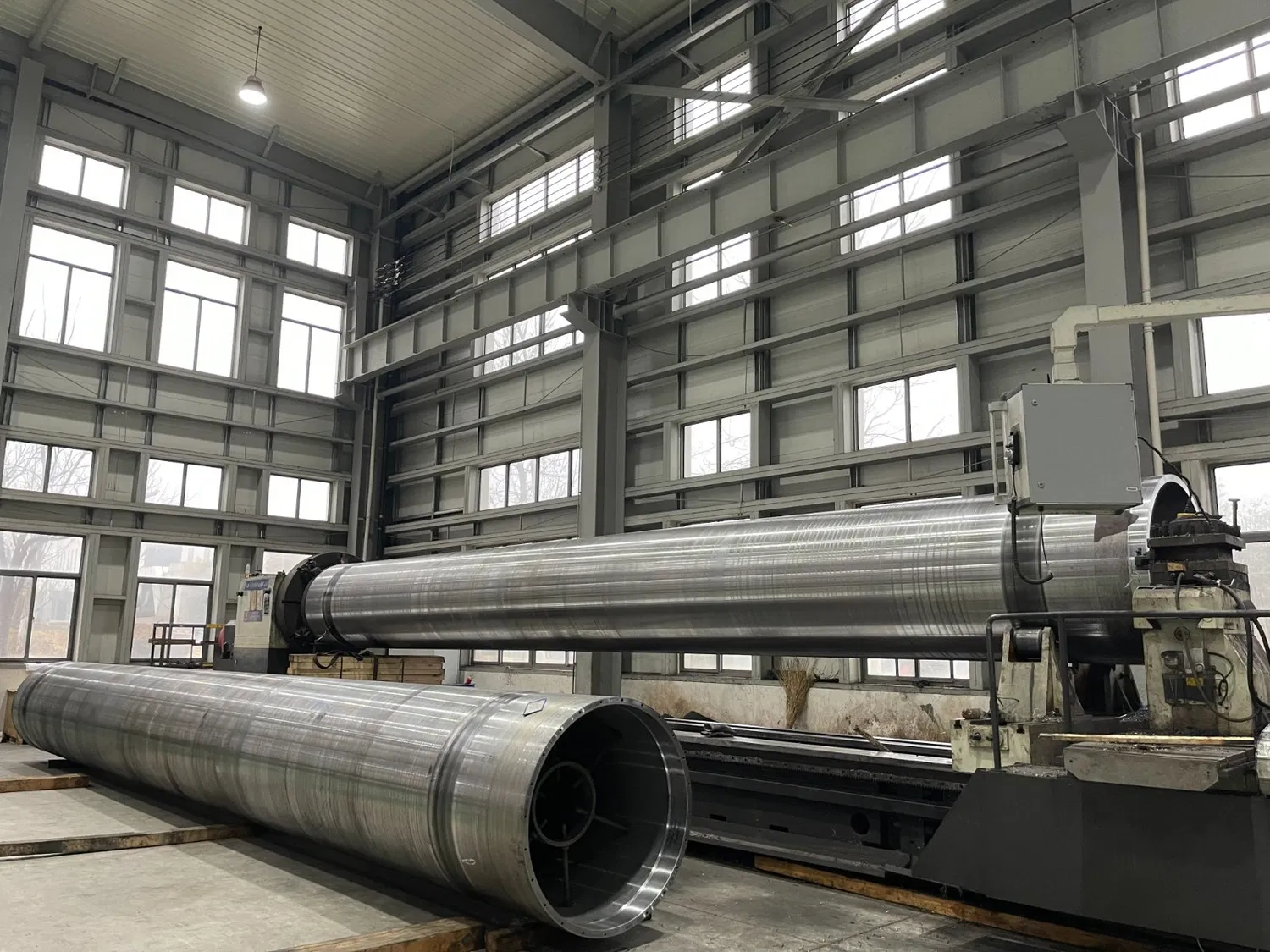

Stepping into the world of papermaking machinery, one quickly realizes the incredible complexity involved in transforming a slurry of fibers into the paper we use every day. At the heart of this intricate process are the paper machine rolls. These cylindrical workhorses, found throughout the machine's many sections, are far more than just spinning cylinders; they are precision-engineered components, each with specific types and vital functions critical to the speed, quality, and efficiency of paper production. Understanding these roles is truly essential for anyone involved in operating, maintaining, or designing paper machines. Frankly speaking, without the right roll doing the right job in the right place, the entire papermaking process grinds to a halt or produces substandard results. This guide aims to illuminate the diverse landscape of paper machine rolls, breaking down their types and the crucial functions they perform at each stage of the journey from pulp to finished product.
Understanding the Role of Rolls in the Papermaking Process Lifecycle
To appreciate the importance of different paper machine roll types and their functions, it's helpful to have a basic grasp of the overall papermaking process itself. The journey typically begins at the wet end, where the fiber slurry is formed into a nascent sheet, progresses through pressing to remove water mechanically, moves into drying where thermal energy evaporates remaining moisture, and concludes with finishing stages like calendering and reeling. Each of these sections presents unique challenges and requirements for the rolls operating within them. The environment can range from wet and corrosive at the beginning to hot and demanding at the end. Consequently, the rolls designed for each stage must possess specific characteristics – perhaps a particular surface covering for water removal, robust internal cooling for high temperatures, or precise surface finish for sheet quality. It's a fascinating interplay of engineering, materials science, and physics, all embodied in these seemingly simple cylinders. The sheer variety of tasks assigned to rolls across this lifecycle underscores why a detailed look at specific types and their functions is so necessary; they are the silent, often unsung heroes of high-speed paper production.
Essential Roll Types in the Forming Section: Initiating Sheet Formation and Dewatering
The forming section, sometimes called the wet end, is where the paper sheet is born. Here, the dilute fiber suspension flows onto a moving forming fabric, and water begins to drain away, leaving the fibers behind to form a mat. Rolls in this section are primarily involved in supporting the forming fabric, assisting initial dewatering, and transferring the fragile wet sheet to the next section. Key players include the breast roll, which supports the forming fabric at the point where the stock jet lands, and various table rolls or foils and suction boxes further down, though these aren't always classified strictly as 'rolls' in the same sense. More prominently, the couch roll is a critical roll type found at the very end of the forming section. Its main function is to consolidate the weakly formed sheet and remove a significant amount of water using vacuum, preparing it for the press section. Couch rolls are often large, perforated, and equipped with internal vacuum boxes. Their design is crucial to prevent disturbing the delicate fiber structure while maximizing water removal and ensuring a smooth transfer of the sheet off the forming fabric onto the press felt. The materials and drilling patterns of these rolls are carefully selected to manage vacuum levels and water flow efficiently, directly impacting initial sheet strength and consistency.
The Crucial Function of the Couch Roll in Wet End Dewatering
Focusing specifically on the couch roll within the forming section, its function is perhaps one of the most demanding at the wet end. As the fragile, still very wet sheet reaches the couch roll, it passes over suction boxes located inside the perforated shell of the roll. The vacuum pulls air and water through the sheet and the forming fabric, significantly increasing the sheet's solids content – often from less than 1% on the fabric to around 18-22% solids after the couch. This dewatering is vital because it reduces the amount of water that needs to be removed in the energy-intensive press and dryer sections. Beyond dewatering, the couch roll also serves to transfer the sheet from the forming fabric to the felt that will carry it into the press section. This transfer must be smooth and consistent to avoid sheet breaks, which are a major cause of downtime. Believe it or not, the design of the couch roll's shell, its vacuum system, and its surface condition are all finely tuned to achieve this delicate balance of robust dewatering and gentle sheet handling. Any issues here, from improper vacuum levels to roll cover damage, can have ripple effects throughout the rest of the paper machine, highlighting the essential nature of this specific roll type and its functions early in the process.
Key Roll Functions in the Press Section: Maximizing Mechanical Water Removal
Following the forming section, the sheet enters the press section, where mechanical pressure is the primary method of water removal. This stage is incredibly important because it's far more energy-efficient to squeeze water out than to evaporate it later in the dryers. The press section typically consists of a series of nips formed by pairs of rolls, often with felts running through them alongside the sheet. Press rolls come in various types, including plain press rolls, grooved rolls, blind-drilled rolls, and suction press rolls. Each type is designed to facilitate water removal under high pressure. Grooved and blind-drilled rolls provide channels or voids for the pressed-out water to escape into temporarily, preventing it from being reabsorbed into the sheet. Suction press rolls combine pressure with vacuum, similar to the couch roll but under higher load, for enhanced dewatering. The functions here are twofold: removing water and consolidating the sheet by pressing the fibers closer together, which increases sheet density and strength. The coverings on press rolls are also critical; they must withstand high pressures and temperatures, resist wear, and interact correctly with the sheet and felt. In my experience, the performance of the press section rolls has a monumental impact on both energy consumption (due to reduced dryer load) and final paper properties like strength and caliper. Getting the right roll type, nip pressure, and covering is an intricate science.
Exploring Different Press Roll Designs and Their Dewatering Functions
Delving deeper into press roll types reveals fascinating design choices driven by the need for efficient water handling under load. Plain press rolls exert pressure, but without specific water escape routes, they rely heavily on the press felt to absorb the water, which can limit speed and dewatering. Grooved rolls feature circumferential or spiral grooves cut into the roll cover surface; these grooves act as conduits to move water away from the nip. Blind-drilled rolls have a pattern of blind holes drilled into the cover, providing small reservoirs for water within the nip area itself. Both grooved and blind-drilled designs are superior to plain rolls for faster machines as they manage water more effectively, allowing for higher pressing forces without flooding the nip. Suction press rolls, incorporating internal vacuum boxes and a perforated shell, add another layer of dewatering by actively pulling water through the sheet and felt within the nip. The choice among these types depends on the grade of paper being produced, machine speed, and desired dryness level entering the dryer section. Ultimately, the function of all these press roll types is to apply controlled pressure to the paper sheet to squeeze out as much water as possible mechanically, significantly reducing the energy required for subsequent drying and enhancing the physical properties of the paper. Have you ever considered how these subtle differences in roll surface design can make such a big impact on the final product?
Supporting the Sheet: Vital Roll Types and Functions in the Dryer Section
Once the sheet leaves the press section, it enters the dryer section, a long series of heated cylinders (dryer cans) where residual moisture is evaporated. While the dryer cans themselves are the primary heat source, numerous other rolls play crucial supporting and guiding roles within this high-temperature environment. These include felt rolls, guide rolls, and carrier rolls. The main function of felt rolls in the dryer section is to support and guide the dryer felts or fabrics, which hold the sheet in close contact with the heated dryer cans and provide tension. These felt rolls ensure uniform contact and prevent the sheet from fluttering or wrinkling. Guide rolls, often featuring automatic control systems, sense the position of the felt or fabric and adjust their angle slightly to keep the felt running straight and prevent it from wandering off course. Carrier rolls are used in certain dryer section configurations to carry the sheet over open draws between dryer groups or sections, preventing the still relatively fragile hot sheet from breaking. Interestingly enough, rolls in the dryer section must withstand not only tension and pressure but also high temperatures and potentially humid conditions. Their bearings and internal structure are designed to dissipate heat and maintain stability under these challenging operating parameters. Their essential function is to ensure the sheet moves smoothly and consistently through the drying process, maximizing heat transfer and minimizing breaks.
Achieving Final Quality: Rolls in the Calender and Reel Sections
After drying, the paper sheet has reached its final moisture content but may require further processing to achieve the desired thickness, smoothness, and surface finish. This is where the calender and reel sections come into play, utilizing specialized rolls to perform these critical finishing functions. The calender stack typically consists of a series of hard-nip rolls, often heated, through which the paper sheet passes. The function of calender rolls is to compress the sheet, reducing its caliper (thickness) and smoothing its surface. Different types of calender rolls exist, including chilled iron rolls for high hardness and durability, and sometimes softer, covered rolls in certain types of calenders (like soft calenders) to provide a more gentle nip and different surface properties. The number and arrangement of rolls in the calender stack, along with pressure and temperature, determine the final surface characteristics of the paper, from rough newsprint to smooth graphic papers. Following calendering, the paper is wound into large parent rolls on the reel. The reel spool, essentially a large shaft, is the core around which the paper is wound. The primary function of the reel is to wind the paper smoothly and tightly, creating a uniform roll free from wrinkles or telescoping, ready for slitting and further processing. This requires precise control of tension and speed, often managed by rider rolls or other tensioning mechanisms acting on the reel spool. The quality of the paper roll produced here is paramount for downstream converting operations.
Specialty Roll Types and Their Critical Niche Roles in Papermaking
Beyond the primary sections of forming, pressing, drying, calendering, and reeling, paper machines employ a variety of specialty rolls designed for specific, critical functions that enhance process control and paper quality. Spreader rolls, for example, are designed with a bowed shape or segmented surface to gently spread the sheet or felt laterally, removing wrinkles and ensuring uniform width before entering a nip or winding onto a reel. Their function is essential for maintaining sheet integrity and preventing defects caused by wrinkles. Lead rolls, sometimes called idler rolls, are essentially unpowered rolls used to guide the sheet or fabric along a specific path. While seemingly simple, their alignment, balance, and surface condition are important to prevent marking the sheet or causing tension variations. Felt and wire guide rolls, as mentioned briefly before, use mechanical or hydraulic systems to automatically adjust position and keep the endless felts or fabrics running true. Dandy rolls, used in some forming sections, are large, open-structured rolls that ride on top of the forming fabric to improve formation and potentially apply a watermark. Each of these specialty rolls performs a function that, while perhaps not as overtly dramatic as dewatering or pressing, is nonetheless vital to the overall smooth and efficient operation of the paper machine and the quality of the final paper product. Their diverse types and functions showcase the myriad ways cylindrical components are leveraged in this complex industry.
The Importance of Roll Materials, Coverings, and Maintenance for Optimal Function
The effectiveness of any paper machine roll type in performing its intended function is heavily reliant on the materials from which it is constructed, the nature of its surface covering (if any), and the quality of its ongoing maintenance. Rolls are typically made from steel, cast iron, or composites, chosen for strength, rigidity, and resistance to corrosion and wear. However, the surface layer is often the most critical functional component. Roll coverings can be made from rubber, polymers, ceramics, or composites, each offering specific properties like hardness, elasticity, chemical resistance, and grip. For instance, a soft rubber cover on a press roll helps create a wider nip for gentle pressing of sensitive grades, while a hard ceramic cover offers extreme wear resistance in abrasive environments like the forming section. The proper selection of covering type is paramount to achieving the desired function, whether it's efficient dewatering, wrinkle removal, or precise calendering. Furthermore, diligent maintenance, including regular inspection, grinding, balancing, and bearing lubrication, is absolutely essential. Worn, damaged, or imbalanced rolls cannot perform their functions effectively, leading to operational issues, sheet defects, and potential machine damage. In my experience, investing in high-quality roll manufacturing and proactive maintenance programs pays dividends in terms of machine uptime, product quality, and overall operational efficiency. It ensures these critical components can reliably perform their essential functions day in and day out.
To be honest, keeping a paper machine running at peak performance requires not just understanding the different types of rolls and their functions, but also ensuring they are manufactured to precise specifications and maintained expertly. Rolls are subjected to extreme stresses – high loads, temperatures, speeds, and often corrosive environments. The integrity of the roll shell, the accuracy of its dynamic balance, the condition of its bearings, and the suitability and state of its covering are all factors that directly influence how well it performs its intended function. A seemingly minor issue, like bearing wear or a small defect in a roll cover, can escalate quickly, causing sheet breaks, uneven moisture profiles, poor finish, or even catastrophic failure. This is where specialized expertise in roll manufacturing and servicing becomes invaluable. Ensuring rolls are designed for the specific demands of their position in the machine, made from appropriate materials, and kept in optimal condition through regular maintenance is fundamental to reliable and efficient papermaking. Many experts agree that proactive roll management is a cornerstone of operational excellence in the paper industry. Our company understands these challenges deeply and offers solutions aimed at ensuring your paper machine rolls perform their essential functions flawlessly.
In conclusion, paper machine rolls are indispensable components, with a remarkable diversity of types, each engineered to perform specific, essential functions at various stages of the papermaking process. From the initial dewatering and sheet formation facilitated by couch rolls and other forming section rolls, through the crucial mechanical water removal functions of the varied press rolls, to the supporting and guiding roles in the high-temperature dryer section, and finally, the surface modification and winding tasks performed by calender and reel rolls, every roll type is vital. Specialty rolls provide additional control and quality enhancement. The selection of appropriate roll materials, coverings, and the implementation of robust maintenance practices are critical factors determining how effectively these rolls perform their complex and demanding functions. Understanding this essential guide to paper machine roll types and their functions is key to optimizing performance and quality in papermaking. What do you think is the most challenging roll function to maintain for peak performance?
