When you hold a sheet of high-quality paper, feeling its smoothness, admiring its consistent thickness, and perhaps noting a subtle sheen, you're experiencing the direct result of a critical process known as calendering. This transformation from a relatively rough web into a refined surface is orchestrated by the paper machine calender stack, and at the very heart of this stack are the calender rolls. These seemingly simple cylinders are, in reality, highly engineered components, precision-crafted to withstand immense pressure and temperature variations while imparting the desired finish and caliper uniformity to the paper web. Understanding their function, types, and maintenance is paramount for any paper manufacturer aiming for consistent quality and efficient production. To be honest, without properly functioning calender rolls, achieving the specific surface properties required for modern printing, packaging, and specialty papers would be virtually impossible.
Understanding the Paper Calendering Process
The fundamental purpose of the paper calendering process is to enhance the physical properties of the paper sheet, primarily smoothness, gloss, density, and caliper (thickness) consistency. As the paper web passes through one or more nips formed by pairs of rolls under pressure, the fibers and fillers in the sheet are compressed and rearranged. This compression reduces bulk and internal voids, leading to a denser, smoother surface. Calendering can be performed online as part of the paper machine itself (machine calendering) or offline in a separate unit (supercalendering), often involving multiple nips and higher pressures and temperatures to achieve a greater degree of finish, particularly high gloss. The selection of calender type and the configuration of the rolls within the stack are dictated by the desired final paper properties and the specific grade being produced. Interestingly enough, even subtle variations in roll surface temperature or pressure across the web can significantly impact the final product's appearance and performance characteristics, highlighting the precision required.
Types and Configuration of Calender Rolls
Paper machine calender rolls come in various types, each designed for specific roles within the calendering process. The most common include hard rolls, typically made of chilled cast iron or hardened steel, and soft rolls, which are covered with materials like polymers, composites, or cotton (for supercalenders). Hard rolls are durable and provide a stable surface, often used in machine calenders to set caliper and basic smoothness. Soft rolls conform slightly to the paper web, allowing for more intimate contact, which is essential for achieving higher levels of smoothness and gloss, especially in supercalendering. Heated rolls, either hard or soft, utilize steam, hot oil, or electrical induction to raise the paper temperature, making the fibers more pliable and receptive to deformation, thus enhancing gloss and density. Chilled rolls, conversely, can be used to control temperature or set coatings. The arrangement of these different roll types in a stack (e.g., two-roll, multi-roll, extended nip) is carefully engineered to achieve specific paper finishes and manage the complex interactions of heat, pressure, and moisture with the paper web.
Materials and Precision Engineering

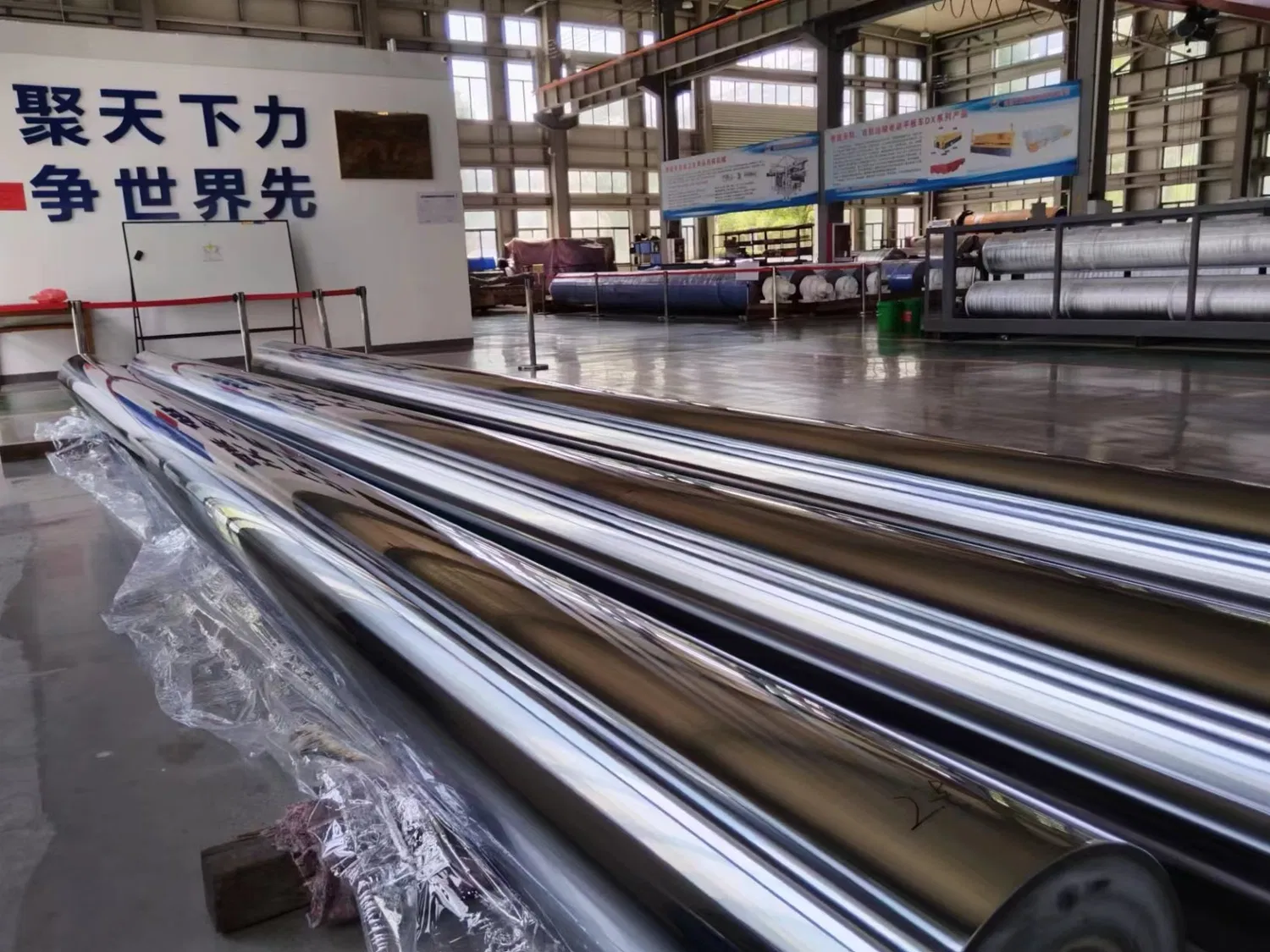

The construction of a high-quality paper machine calender roll involves sophisticated metallurgy and precision engineering. Hard rolls are commonly made from chilled cast iron, a material selected for its extreme hardness and wear resistance. Alternatively, some applications utilize forged steel alloys for increased strength and durability. The surface of these rolls is ground and polished to incredibly tight tolerances, measured in microns, to ensure uniform contact with the paper web and prevent surface defects like streaks or barring. Soft rolls consist of a robust metal core overlaid with a cover material. The choice of cover material is critical, depending on the operating parameters (temperature, pressure, speed) and the desired paper grade. Modern polymer and composite covers offer excellent resilience, heat resistance, and consistent performance compared to traditional materials. The internal design of heated or chilled rolls is also complex, ensuring uniform temperature distribution across the roll face, which is vital for preventing caliper variations and achieving a consistent finish profile across the full width of the paper sheet. Franky speaking, the precision required in manufacturing these rolls is astounding, given the size and the forces they must endure.
The Critical Nature of the Roll Surface
The surface of the paper machine calender roll is where the direct interaction with the paper web occurs, making its condition paramount to achieving desired paper quality. A roll surface must possess specific properties: optimal hardness, extreme smoothness, uniform temperature distribution, and resistance to abrasion, chemicals, and potential pickup from the paper or coatings. Any imperfection on the surface – a scratch, a pit, or even a subtle variation in hardness or temperature – can be directly translated onto the paper web, resulting in visible defects like chatter marks, barring, streaks, or non-uniform gloss and caliper. The surface finish, measured in roughness (e.g., Ra), dictates the degree of micro-smoothness imparted to the paper. Maintaining the integrity and cleanliness of the roll surface is therefore a continuous process involving regular inspection, cleaning, and when necessary, grinding or polishing. For soft rolls, the condition and properties of the cover are equally vital; damage or wear to the cover directly compromises the calendering effect and necessitates replacement or repair.
Optimizing Performance Through Roll Management
Achieving optimal paper quality and production efficiency from the calendering process relies heavily on effective management of the calender rolls. This goes beyond just having the right type of roll; it involves understanding how operating parameters like nip pressure, roll temperature, and line speed interact with the specific roll properties and the paper grade being run. Sophisticated control systems are employed to precisely regulate pressure profiles (often using variable crown rolls to compensate for deflection), maintain consistent temperatures, and synchronize speeds. Proper roll alignment is also non-negotiable, as misalignment can lead to uneven wear, poor quality, and potential roll damage. Regular monitoring of roll condition, including surface inspection, temperature profiles, and vibration analysis, provides crucial data points for predictive maintenance and process adjustments. Why is this approach so effective? Because proactively addressing minor issues before they escalate prevents costly downtime, reduces waste, and ensures consistent, high-quality output.
Factors Influencing Roll Performance and Lifespan
The demanding environment of the paper machine takes a toll on calender rolls, and their performance and lifespan are influenced by a multitude of factors. Abrasion from the paper web and fillers is a constant source of wear, slowly reducing the roll's diameter and altering its surface profile. High operating temperatures can lead to thermal stresses, potentially causing cracking or surface degradation over time. The immense nip pressures can cause fatigue in the roll material or core. Chemical exposure from papermaking additives or coatings can also affect roll surfaces, particularly polymer covers. Mechanical issues like bearing failure, vibration, or improper handling during installation or storage can lead to damage. Even operational choices, such as running abrasive paper grades or operating outside recommended temperature/pressure ranges, can significantly shorten a roll's effective life. Recognizing these factors is the first step in implementing strategies to mitigate their impact and maximize the return on investment in these critical components. Have you ever wondered just how much abuse these rolls withstand day in and day out?
Essential Maintenance Practices for Calender Rolls
Effective maintenance is the cornerstone of maximizing the performance and lifespan of paper machine calender rolls. This includes a combination of routine checks, preventative measures, and planned interventions. Daily or weekly inspections for surface damage, cleanliness, and proper lubrication of bearings are fundamental. More detailed inspections might involve using specialized equipment to check for internal defects or measure surface roughness and profile. Scheduled grinding or re-covering of rolls is necessary to restore their original surface geometry and finish after periods of wear or damage. Proper handling and storage of spare rolls are also vital to prevent damage when they are not in the machine. Furthermore, establishing a robust maintenance schedule based on operating hours, paper grade, and observed wear patterns helps predict when service will be needed, minimizing unplanned shutdowns. In my experience, facilities that invest in proactive, data-driven calender roll maintenance consistently achieve higher paper quality and lower operating costs over time.
Troubleshooting Common Calendering Issues
Even with rigorous maintenance, issues can arise in the calendering section, often manifesting as paper quality problems. Uneven caliper might indicate roll deflection, non-uniform pressure application, or uneven temperature profiles. Poor or inconsistent gloss could be linked to surface contamination, incorrect temperature settings, or issues with the soft roll cover. Visible marks on the paper, such as barring or chatter, often point to roll vibration, surface defects, or issues with bearings or gearing. Troubleshooting these problems requires a systematic approach, examining the calender roll condition, operating parameters, and related mechanical systems. Identifying the root cause quickly minimizes waste and downtime. Many experts agree that having well-trained personnel who understand the nuances of calender roll behavior and diagnostics is invaluable for efficient problem-solving in a paper mill environment.
Innovations in Calender Roll Technology
The field of calender roll technology is not stagnant; continuous innovation aims to improve performance, increase lifespan, and offer greater flexibility in paper finishing. Variable crown (VC) rolls, which allow for dynamic adjustment of the roll profile to compensate for deflection and control the nip pressure distribution across the web width, are now standard in many modern calenders. Heated composite and polymer covers offer improved heat transfer, higher operating temperatures, and enhanced resistance to wear and chemicals compared to earlier materials. Advanced surface coatings, such as hard chrome plating or ceramics, are used on hard rolls to further enhance durability and surface properties. Furthermore, integrating online monitoring systems for temperature, vibration, and profile measurement provides real-time data, enabling operators to make immediate adjustments and facilitating predictive maintenance strategies. These technological advancements contribute significantly to achieving tighter quality control and running paper machines at higher speeds.
Selecting the Right Paper Machine Calender Roll
Choosing the appropriate paper machine calender roll for a specific application is a critical decision that impacts both the quality of the final product and the efficiency of the operation. The selection process involves considering several factors: the type of paper grade being produced (newsprint, fine paper, board, specialty grades), the desired finish properties (smoothness, gloss, density, caliper), the type of calender stack (machine calender, supercalender), operating parameters (speed, temperature, pressure), and budget constraints. For instance, achieving high gloss on coated paper often requires supercalender rolls with specific soft covers and the ability to operate at high temperatures and pressures. For basic caliper control and smoothness on uncoated grades, hard rolls in a machine calender might suffice. Consulting with experienced suppliers and engineers who understand the complex interplay of these factors is highly recommended to ensure the selected paper machine calender roll is ideally suited for the intended application, delivering both performance and longevity.
Ultimately, the performance of the paper machine calender roll is intrinsically linked to the quality and profitability of the paper manufacturing process. These precision components require careful selection, expert installation, and diligent maintenance to deliver consistent results. Addressing issues proactively, leveraging technological advancements, and ensuring that maintenance personnel are well-trained are all vital steps in maximizing the return on investment in your calendering equipment. Our company specializes in providing high-quality paper machine calender roll solutions, from new rolls incorporating the latest materials and designs to expert maintenance, grinding, and re-covering services. We understand the challenges paper manufacturers face and offer tailored solutions designed to improve paper quality, reduce downtime, and extend the life of your valuable assets. By partnering with us, you gain access to expertise that helps you optimize your calendering process and achieve your production goals.
Selecting and maintaining the right paper machine calender roll isn't just about buying a component; it's about investing in the core of your paper finishing process. With the right rolls and proper care, you can consistently produce paper that meets the stringent demands of today's market. Don't let outdated equipment or inadequate maintenance compromise your quality. Take the next step towards optimizing your calendering operations. For more detailed information, please visit our official website: paper machine calender roll
