The papermaking process is a delicate dance between high-speed mechanics and precise material handling. Central to this operation are the numerous rolls that transport, press, dry, and finish the paper sheet. Two fundamental operating parameters, machine speed and web tension, exert a profound influence on the performance, longevity, and efficiency of these critical components. Understanding this relationship isn't just academic; it's essential for maintaining paper quality, minimizing downtime, and ensuring the overall profitability of a paper mill. Frankly speaking, overlooking the subtle (and sometimes not-so-subtle) effects of speed and tension variations can lead to a cascade of problems, from premature roll failure and excessive energy consumption to inconsistent product quality and frustrating web breaks. As machines are pushed to ever-higher speeds to meet production demands, the stresses placed on rolls intensify, making careful management of these variables more critical than ever. It's a continuous balancing act where even minor deviations can have significant consequences down the line, affecting everything from bearing life to the final finish of the paper.
The Crucial Role of Operating Speed
Increasing paper machine speed is often seen as the most direct route to boosting output. However, higher speeds introduce significant mechanical challenges for the rolls. One major concern is vibration. As rotational speeds increase, even minor imbalances in a roll, which might be negligible at lower speeds, can induce significant vibrations. These vibrations aren't just noisy annoyances; they can lead to uneven pressure application in press nips, causing barring or caliper variations in the paper sheet. Furthermore, sustained vibration accelerates wear on bearings, seals, and roll covers, shortening their operational lifespan considerably. Dynamic balancing becomes absolutely critical at higher speeds, requiring precision far exceeding that needed for slower operations. It's worth noting that the natural frequency of the roll and its supporting structure also comes into play; operating near a critical speed can amplify vibrations dramatically, risking catastrophic failure. Heat generation is another consequence. Increased surface speeds, particularly in nips or where friction is involved (like with doctor blades or seals), lead to higher operating temperatures. This heat can degrade roll cover materials, alter their properties (like hardness or elasticity), and potentially cause debonding from the roll core. For rolls involved in drying, managing speed's impact on heat transfer dynamics is also vital for efficiency.
Balancing and Resonance Challenges
Achieving perfect balance in massive, high-speed paper machine rolls is, to be honest, a complex engineering feat. Static balance addresses weight distribution when the roll is stationary, but dynamic balance is crucial for smooth operation at speed. It accounts for forces generated by uneven mass distribution along the roll's length. As speeds climb, the centrifugal forces generated by even tiny imbalances grow exponentially (proportional to the square of the speed). This necessitates multi-plane dynamic balancing to very tight tolerances. Modern balancing equipment and techniques are essential, but the challenge doesn't end there. Rolls can flex slightly at high speeds (a phenomenon sometimes called "rope skipping" if severe), changing their dynamic characteristics. Furthermore, the entire system – roll, bearings, frame – has natural frequencies. If the operating speed excites one of these frequencies, resonance occurs, leading to potentially destructive vibrations. Identifying and avoiding these critical speeds is paramount during machine design and operation. Sometimes, modifications to the roll's structure or the support system are needed to shift these resonant frequencies away from the desired operating range. This often involves sophisticated analysis, like Finite Element Analysis (FEA), during the design phase.
Web Tension: The Silent Force
Web tension, the force exerted longitudinally on the paper sheet as it travels through the machine, is equally critical, though perhaps less obviously dramatic than speed. Incorrect tension – whether too high or too low – has far-reaching consequences for both the paper and the rolls. Excessive tension places significant loads on the rolls, particularly guide rolls and those defining the web path. This increased load translates directly to higher stress on bearings, potentially leading to premature failure. High tension can also cause roll deflection, especially on longer rolls or those with smaller diameters. Even slight deflection can lead to uneven nip pressure profiles, resulting in moisture streaks, caliper variations, or poor coating application. Think about a calender stack; if roll deflection occurs due to high tension, the desired smoothness and gloss uniformity simply won't be achieved. Furthermore, excessive tension can stretch or even tear the fragile paper web, leading to costly web breaks and machine downtime. It's a constant source of frustration for operators when tension spikes cause the sheet to snap, necessitating a time-consuming re-threading process. The interaction between the web and the roll surface under high tension can also accelerate cover wear, particularly on driven rolls where slight slippage might occur.
Tension Control and Its Impact on Roll Performance
Maintaining consistent and appropriate web tension across the entire width and length of the paper machine is vital. Too little tension is just as problematic as too much. Insufficient tension can lead to web flutter, wrinkling, and poor tracking. The sheet might wander sideways, potentially running off the edge of rolls or causing creases as it enters a nip. Slack edges are a common issue stemming from uneven tension profiles, often leading to defects or breaks. Effective tension control relies on a sophisticated system of load cells, dancers, and responsive drive controls. Load cells measure the actual tension, providing feedback to the drive system, which adjusts the speed differential between sections to maintain the target tension. Dancer rolls use position feedback to buffer minor, transient tension variations. However, the rolls themselves play a part. Their surface properties (friction coefficient), diameter consistency, and alignment all influence how effectively tension is transmitted and maintained. A roll with a worn or inconsistent cover might slip, causing localized tension loss. A misaligned roll can create uneven tension across the web width. Therefore, roll condition is intrinsically linked to the performance of the tension control system. Have you ever analyzed the tension profile data across your machine width? Often, variations reveal underlying issues with roll condition or alignment.
The Interplay Between Speed and Tension
It's crucial to recognize that speed and tension don't operate in isolation; they interact in complex ways. Increasing machine speed often necessitates adjustments in web tension. Why? Because at higher speeds, aerodynamic effects become more significant – the sheet might try to lift off rolls or flutter more readily, requiring slightly higher tension for stability. However, this increase in tension, combined with the higher speed, further exacerbates the issues discussed earlier: higher bearing loads, increased risk of vibration, greater potential for heat generation, and accelerated cover wear. Finding the optimal balance is key. For instance, running a lightweight grade at very high speeds might demand precise tension control to prevent breaks, while simultaneously requiring perfectly balanced rolls to avoid vibration-induced quality defects. The "operating window" where both speed and tension are within acceptable limits for stable operation and good quality might become narrower as speeds increase. This interaction also affects drive power requirements. Higher speeds naturally require more power, but increased tension adds to the load, further demanding more from the motors and drives, impacting energy efficiency. In my experience, mills that successfully push speed limits are those that have mastered this intricate relationship through advanced control strategies and meticulously maintained rolls.
Impact on Specific Roll Types
The effects of speed and tension manifest differently depending on the roll's function and position in the machine. Consider press rolls. Here, high speed and the nip load (related to tension and pressing force) combine to stress the roll covers intensely. Heat buildup in the nip can be substantial, demanding covers with excellent thermal stability. Vibration induced by imbalance at high speed can cause barring in the sheet. Now think about dryer cans. While web tension itself might be less critical *on* the can surface (due to the wrap angle and steam pressure), the tension in the draws *between* dryer sections is vital. Speed influences the dwell time on the cans, affecting drying efficiency. High speeds also place demands on the bearings and steam/condensate systems. For calender rolls, speed and tension critically influence the finishing process. High speed requires extremely smooth, well-balanced rolls to avoid marking the sheet. Tension variations entering the calender nip can cause non-uniform gloss or caliper. Roll deflection under load (influenced by tension) is a major concern for achieving uniform finish. Even seemingly simple guide rolls are affected. At high speeds, they need low inertia and perfect balance to avoid inducing vibration or damaging the sheet. High tension increases their bearing loads significantly. Each roll type presents unique challenges related to managing speed and tension effectively.

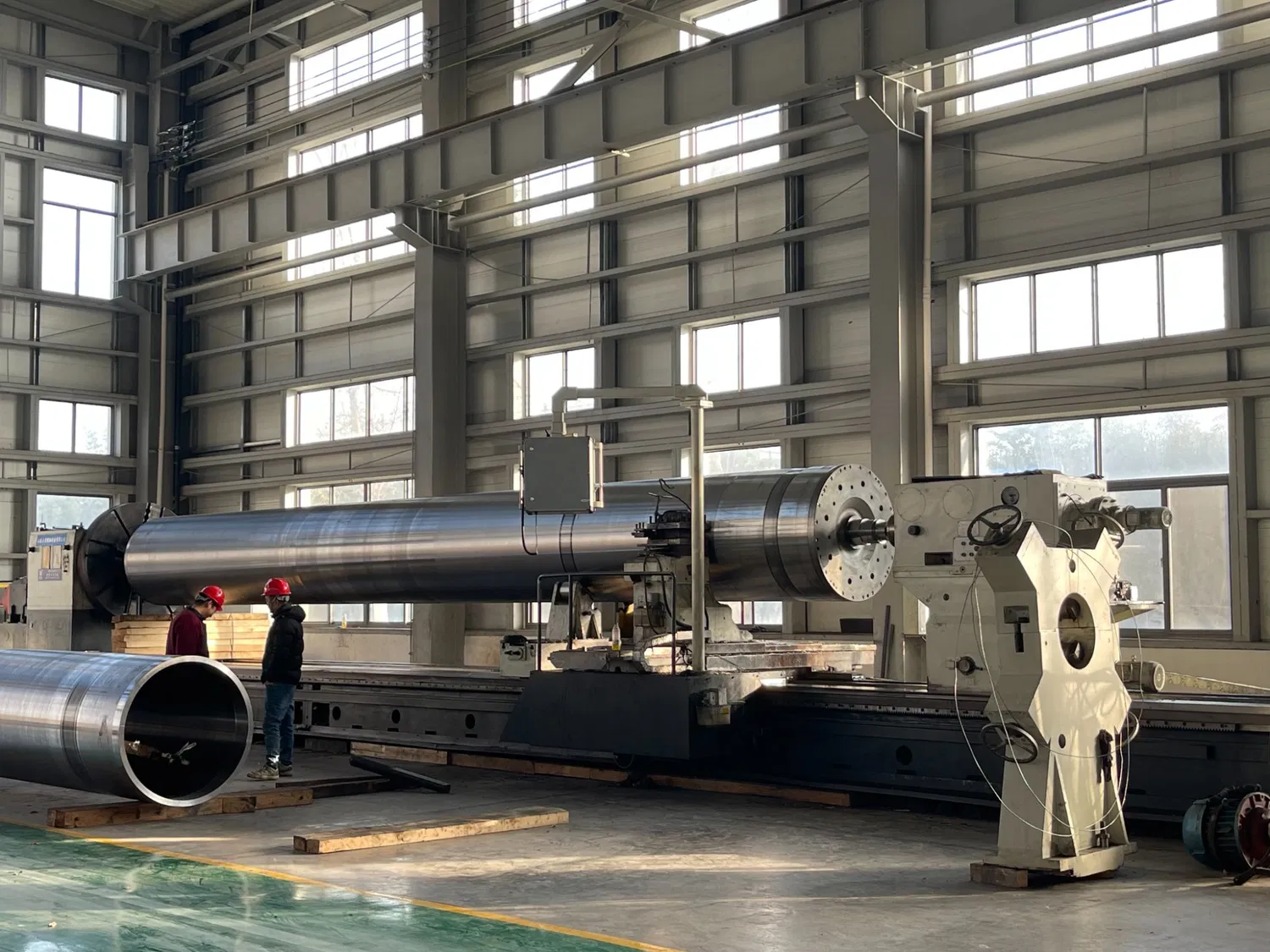

Material Science and Roll Construction
The materials used for roll cores and covers, along with the roll's structural design, are fundamental to how well it withstands the rigors of high speed and tension. Roll cores, typically steel or cast iron, must possess sufficient stiffness to resist deflection under load (influenced by web tension and nip forces) and be dimensionally stable across varying temperatures. The design must also facilitate effective balancing. For roll covers, the demands are even more complex. Materials like rubber, polyurethane, composites, or ceramics are chosen based on the application (pressing, guiding, calendering, coating). These covers must offer the correct surface properties (hardness, friction), resist abrasion and chemical attack, maintain their properties at operating temperatures (which increase with speed), and adhere strongly to the core. High speeds generate significant centrifugal forces trying to pull the cover away from the core, while high tension contributes to stress and potential fatigue. The development of advanced cover materials with improved durability, thermal stability, and resistance to wear under high-speed, high-tension conditions is an ongoing area of research and development. Frankly speaking, the longevity and performance of a roll are often dictated as much by the cover material science as by the mechanical design.
Operational Challenges and Monitoring
Effectively managing speed and tension requires robust monitoring and control systems, but also skilled operators and maintenance practices. Operators need real-time feedback on speed and tension values across different machine sections. Interpreting this data and making appropriate adjustments requires experience and understanding of the process dynamics. Automated control systems are essential, but they rely on accurate sensors (like load cells and speed encoders) and well-tuned control loops. Sensor calibration and maintenance are critical; a faulty load cell can lead to incorrect tension control, causing breaks or quality issues. Vibration monitoring systems are increasingly used for condition-based maintenance. Accelerometers mounted on bearing housings can detect early signs of imbalance, bearing damage, or resonance issues, allowing for proactive intervention before a catastrophic failure occurs. Thermal imaging can also be useful for spotting overheating bearings or uneven temperature profiles on roll surfaces, potentially indicating issues related to loading or friction. The challenge lies in integrating these disparate data sources into a coherent picture of roll health and operational stability. It's not just about having the data; it's about using it effectively to optimize performance and prevent problems. Why is this proactive approach so effective? Because it shifts maintenance from a reactive, break-fix cycle to a planned, preventative strategy, minimizing costly unscheduled downtime.
Optimization Through Advanced Solutions
Addressing the challenges posed by high speeds and tensions often requires going beyond standard operational adjustments. This is where advanced engineering and specialized products come into play. For instance, precision roll balancing using state-of-the-art equipment is non-negotiable for high-speed machines. Similarly, ensuring precise roll alignment minimizes uneven loading and tracking issues exacerbated by high tension. Investing in advanced roll cover materials, specifically designed for high-speed and high-load conditions, can significantly extend roll life and maintain performance consistency. These modern covers often offer better resistance to heat, abrasion, and chemical attack. Our company specializes in providing solutions tailored to these demanding environments. We offer high-performance roll covers engineered for specific applications, considering the unique combination of speed, tension, pressure, and chemical exposure. Furthermore, our precision manufacturing and dynamic balancing services ensure rolls meet the tight tolerances required for smooth, high-speed operation. We also provide diagnostic services, including vibration analysis and alignment checks, to help mills identify and rectify issues before they lead to major problems. By leveraging these specialized products and services, paper mills can push their operational boundaries more safely and efficiently, mitigating the negative impacts of speed and tension.
Conclusion: Mastering Speed and Tension for Peak Performance
In conclusion, the interplay between machine speed and web tension is a defining factor in the performance, reliability, and longevity of paper machine rolls. As the industry continually pushes for higher production rates, the stresses induced by these parameters become increasingly significant. High speeds amplify the effects of imbalance, leading to vibration, heat generation, and accelerated wear, while improper tension control causes issues ranging from roll deflection and bearing overload to web breaks and quality defects. These factors are interconnected, often compounding each other's effects. Successfully navigating these challenges requires a holistic approach, encompassing precise roll design and manufacturing, advanced material science for cores and covers, sophisticated monitoring and control systems, and diligent maintenance practices. Understanding and proactively managing the impact of speed and tension is not merely an operational necessity; it is fundamental to achieving consistent paper quality, maximizing machine uptime, and ensuring the economic viability of the papermaking process. Many experts agree that continued innovation in roll technology and process control will be essential for meeting future production demands.
