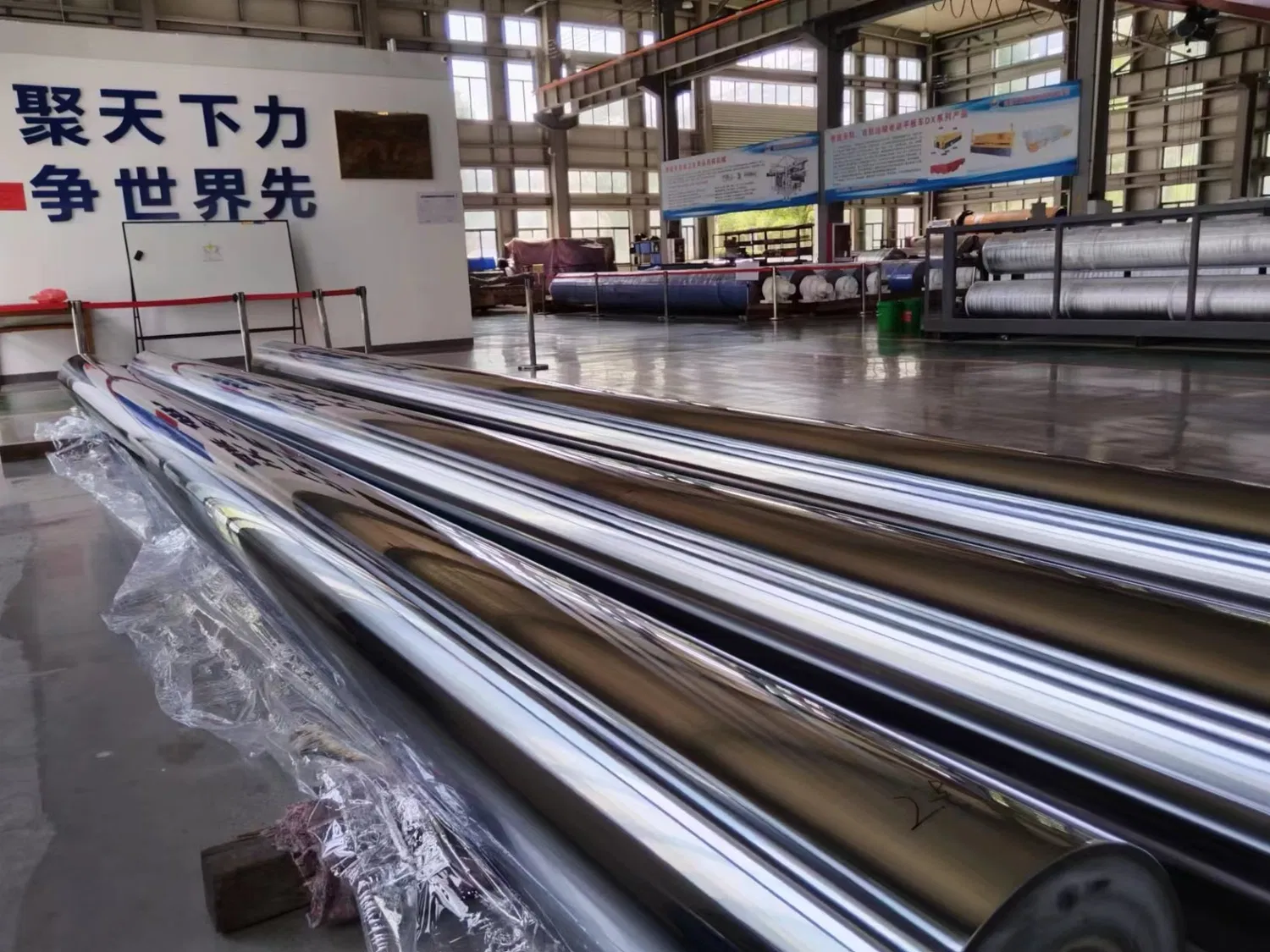

Conducting a thorough inspection of paper machine rolls isn't just a routine maintenance task; it's a critical process that directly impacts paper quality, operational efficiency, and, quite frankly, the safety of personnel working around these massive, rotating components. A superficial glance simply won't cut it. What we're aiming for is a deep dive, a comprehensive evaluation that identifies potential problems long before they lead to catastrophic failures or costly unscheduled downtime. Think about the forces and temperatures these rolls endure day in, day out. Small imperfections can quickly escalate under such demanding conditions. Therefore, understanding how to conduct a thorough inspection involves more than just looking; it requires a systematic approach, the right tools, and a keen eye for detail, backed by knowledge of what constitutes a potential risk versus normal operational wear. It's about proactively managing asset health rather than reactively fixing breakdowns. Many mills, in my experience, underestimate the ROI of investing time and resources into truly rigorous roll inspection protocols, often learning the hard way when a failure occurs. Why wait for disaster when a structured inspection can provide invaluable foresight?

Preparing for a Comprehensive Roll Inspection

　　Before even approaching the paper machine roll, meticulous preparation lays the foundation for an effective and truly thorough inspection. Rushing into the physical checks without adequate groundwork often leads to missed details or inefficient use of valuable shutdown time. First and foremost, safety protocols must be paramount. Ensuring the machine section is properly locked out and tagged out (LOTO) is non-negotiable. Appropriate personal protective equipment (PPE) – hard hats, safety glasses, gloves, steel-toed boots, and potentially hearing protection or respirators depending on the specific environment and tasks – must be worn. Gather all necessary tools and equipment beforehand; this includes inspection checklists, previous inspection reports for historical context, manufacturer’s specifications and tolerances for the specific roll, measuring instruments (calipers, micrometers, feeler gauges, straight edges), cleaning supplies, high-intensity flashlights, marking tools, and any required NDT equipment. It's also incredibly useful to review the maintenance logs and operator feedback regarding the roll's recent performance. Have operators reported any unusual noises, vibrations, or paper quality issues potentially linked to this roll? This background information provides crucial context. Frankly speaking, walking up to a roll unprepared is like navigating without a map – you might stumble upon something, but you're far more likely to miss critical indicators hidden beneath the surface or documented in past findings.

The Critical Role of Visual Examination

　　The initial visual examination is arguably one of the most fundamental yet revealing steps in a paper machine roll inspection. While it might seem basic, a trained eye can detect a surprising number of potential issues. This isn't just a quick look-over; it requires methodical scrutiny of every accessible surface and component. Start with the roll surface itself. Look for any signs of damage such as pitting, corrosion, grooves, scratches, dents, or uneven wear patterns. Pay close attention to the roll ends and edges, as these areas can sometimes show early signs of stress or handling damage. Is there any build-up of stock, scale, or other contaminants? Such build-up can affect heat transfer (in dryer rolls) or pressure distribution (in press rolls), leading to operational problems. For covered rolls, inspect the cover integrity meticulously. Look for cracks, blisters, debonding from the shell, cuts, or excessive wear. The condition of the cover is absolutely critical for paper quality and efficient water removal or surface finishing. It’s worth noting that subtle changes in surface texture or colour can sometimes indicate underlying issues like localized overheating or chemical attack. Don't forget to examine the roll body for any structural deformities or signs of cracking, especially near welds or changes in section. A high-intensity flashlight and sometimes a magnifying glass can be invaluable aids during this phase. Remember, seemingly minor visual defects can be symptomatic of larger, hidden problems, making this step far more than just a formality.

Inspecting Bearings, Journals, and Structural Integrity

　　Beyond the roll surface, a thorough inspection must delve into the critical components supporting and driving the roll: the journals and bearings. These elements are fundamental to the roll's ability to rotate smoothly and maintain its position under load. Begin by visually inspecting the journals – the shaft ends that sit within the bearings. Look for signs of wear, scoring, fretting corrosion (often seen as a reddish-brown dust), or heat discoloration. Any damage here can compromise bearing fit and performance. Measure journal dimensions if significant wear is suspected, comparing them against manufacturer specifications. Next, turn your attention to the bearing housings. Check for cracks, looseness in the mounting bolts, or signs of lubricant leakage from seals. Failed seals are a common issue, allowing contaminants in and lubricant out, drastically shortening bearing life. While the machine is shut down, try to feel for any excessive play or roughness by attempting to manually move the journal end, though this is often difficult with large rolls. Listen for any unusual noises if the roll can be safely rotated by hand or barring gear. Temperature is another key indicator; while best checked during operation with infrared thermometers or sensors, look for residual signs of overheating like discolored paint or burnt lubricant residue around the housing. Checking lubrication lines and systems associated with the bearings is also crucial – ensure proper flow and lubricant condition. To be honest, bearing failures are a frequent cause of major roll incidents, so dedicating sufficient time to this part of the inspection is absolutely essential for reliability.

Leveraging Non-Destructive Testing (NDT) Methods

　　While visual inspection is indispensable, it can only reveal surface-level issues. Many critical flaws, such as internal cracks, voids, wall thinning, or subsurface defects in covers, remain hidden. This is where Non-Destructive Testing (NDT) methods become vital for a truly thorough inspection of paper machine rolls. NDT allows us to assess the internal integrity and subsurface condition of a roll without causing any damage. Several techniques are commonly employed, each suited for detecting specific types of flaws in particular materials. Have you ever wondered how engineers can 'see' inside a massive steel shell? Ultrasonic Testing (UT) is a workhorse, using high-frequency sound waves to detect internal discontinuities like cracks or voids, measure wall thickness accurately (crucial for pressure vessels like dryer cans), and check for debonding between roll shells and covers. Magnetic Particle Inspection (MPI) is highly effective for detecting surface and near-surface cracks in ferromagnetic materials (like cast iron or steel) by magnetizing the part and applying iron particles that accumulate at flux leakage fields caused by defects. For surface-breaking cracks in non-porous materials (including non-magnetic ones), Liquid Penetrant Testing (PT) is often used, where a colored or fluorescent dye seeps into flaws and is later drawn out by a developer. Eddy Current Testing (ECT) can detect surface flaws, measure coating thickness, and even assess material hardness variations. Selecting the appropriate NDT method(s) depends on the roll material, type, expected defects, and accessibility.

Deep Dive into Ultrasonic Testing (UT) Applications

　　Let's delve deeper into Ultrasonic Testing (UT), as it's one of the most versatile and informative NDT methods for paper machine roll inspections. Its ability to penetrate deep into materials makes it invaluable for assessing conditions that are impossible to see. For large rolls like dryer cans or press rolls, UT is routinely used to measure shell thickness at multiple points across the face and around the circumference. This identifies areas of thinning due to corrosion or erosion, which is critical for maintaining structural integrity, especially in pressurized steam dryers. Unexpectedly thin walls pose a significant safety hazard. UT can also detect internal manufacturing flaws or fatigue cracks that initiate below the surface. In covered rolls (e.g., rubber, polyurethane, composite covers on press or size press rolls), specialized UT techniques can assess the bond integrity between the cover and the metal shell. A disbonded area can lead to cover failure, vibration, and poor performance. Detecting these early allows for planned repairs rather than catastrophic failure during operation. Furthermore, UT can sometimes help identify cracks propagating from journal fillets or internal defects within the roll body itself. Effective UT requires skilled, certified technicians who understand the geometry of the roll, the properties of the materials, and the specific techniques (like angle beam or phased array) needed to get reliable results. Surface preparation is also key; a smooth, clean surface is necessary for good sound transmission.

Inspecting Specific Roll Types: Press Rolls

　　Different types of paper machine rolls have unique functions and are subject to specific stresses, requiring tailored inspection approaches. Let's consider press rolls, which are critical for water removal and sheet consolidation. A thorough inspection here goes beyond general checks. The condition of the roll cover is paramount. Using gauges and visual inspection, check for uniform cover hardness across the roll face. Variations can lead to uneven pressing and moisture streaks in the paper sheet. Look closely for signs of chemical attack, abrasion, cuts, or impact damage on the cover. For grooved or drilled rolls, ensure the grooves or holes are clear and not plugged, as this directly impacts dewatering efficiency. Check for any signs of cover-to-shell debonding, often indicated by blisters or localized bulges. Verifying the roll's crown profile is also crucial. An incorrect crown (the slight curvature ground into the roll) leads to uneven nip pressure distribution. This might require specialized measurement tools or profile analysis. Nip impression tests, often done using carbon paper or specialized sensors, can provide direct evidence of how uniformly the pressure is distributed across the machine width when the press is loaded. Bearing and journal inspections remain critical, given the high loads in the press section. Any issues here can quickly translate into vibration, barring marks on the cover or sheet, and potentially catastrophic failure. In my experience, paying extra attention to the interface between the cover and the shell edge often reveals early signs of trouble.

Inspecting Specific Roll Types: Dryer Cans and Calender Rolls

　　Moving through the paper machine, dryer cans and calender rolls also demand specific inspection focus. Dryer cans, being pressure vessels typically filled with steam, require rigorous safety-focused inspections. As mentioned earlier, shell thickness testing using UT is vital to monitor for corrosion and ensure the can meets pressure vessel code requirements. Inspect the external surface for uniform heat transfer; cold spots might indicate internal condensate removal issues. Check the syphon pipes and condensate removal system components for blockages or damage. Manhole covers and gaskets must be inspected for integrity and proper sealing. Journal inspections are important, particularly checking for steam leaks at the rotary joints. Safety regulations often mandate periodic hydrostatic testing for dryer cans. Now, shifting to calender rolls, the focus changes dramatically to surface finish and dimensional accuracy, as these rolls impart smoothness and gloss to the paper. The surface must be flawlessly smooth, free from any marks, scratches, or defects that could transfer to the sheet. Hardness and profile must be extremely precise and uniform. Even minor deviations can cause caliper variations in the paper. Check for signs of barring or chatter marks, which often indicate vibration issues originating from bearings, drives, or the roll itself. Heating systems (if applicable, e.g., heated calender rolls) need inspection for proper function and temperature uniformity across the roll face. Measurement of roll diameter and profile using precision instruments is often a key part of calender roll inspection. Why is this precision so critical? Because the final quality and printability of the paper often depend heavily on the perfection of the calender stack.

Incorporating Dynamic Analysis and Monitoring

　　While static inspections during shutdowns are essential, a truly thorough inspection strategy should also incorporate dynamic analysis and condition monitoring techniques performed while the machine is running. These methods provide insights into the roll's operational behavior that cannot be obtained when it's stationary. Vibration analysis is perhaps the most powerful tool here. By placing sensors on the bearing housings, experienced analysts can detect imbalances, misalignments, bearing defects, gear mesh problems, looseness, and resonance issues long before they become critical. Periodic vibration surveys or permanently installed online monitoring systems can track trends and provide early warnings of developing faults. Think about it – subtle changes in vibration signatures often precede audible noise or visible damage. Infrared thermography is another valuable dynamic tool. Scanning bearing housings, roll surfaces (especially dryers and heated calenders), and drive components can quickly identify abnormal temperatures indicative of friction, poor lubrication, faulty steam traps, or uneven heating/cooling. Monitoring drive motor currents can also reveal load fluctuations potentially related to roll or bearing problems. Integrating data from these dynamic techniques with the findings from static NDT and visual inspections provides a much more complete picture of the roll's health. Our company, for instance, offers advanced condition monitoring solutions that integrate various sensor technologies to provide comprehensive real-time insights, helping maintenance teams move towards predictive, rather than just preventive, strategies.

The Importance of Documentation and Trend Analysis

　　A meticulous inspection is only truly valuable if the findings are accurately and comprehensively documented. Creating detailed records is not just administrative busywork; it's fundamental to effective asset management and preventative maintenance for paper machine rolls. Each inspection report should clearly identify the roll, the date of inspection, the methods used (visual, UT, MPI, etc.), and the technicians involved. All findings, both positive and negative, should be recorded systematically. This includes measurements taken (e.g., shell thickness, journal dimensions, cover hardness), descriptions and locations of any defects or wear observed (supported by sketches or photos where possible), and NDT results. Standardized checklists can help ensure consistency and completeness. But documentation goes beyond just recording the current state. It's the foundation for trend analysis. By comparing current inspection data with previous reports, maintenance engineers can track the rate of wear, the growth of known defects, or changes in operational parameters like vibration levels. This historical perspective is crucial for making informed decisions about repair scheduling, roll replacement planning, or adjustments to operating procedures. Are we seeing accelerated wear on a specific press roll cover? Is the wall thinning on a dryer can approaching its retirement limit? Trend analysis answers these questions, allowing for proactive interventions rather than reactive repairs. Frankly speaking, without robust documentation and analysis, you're essentially starting fresh with each inspection, losing invaluable insights hidden in the historical data.

Ensuring Safety Throughout the Inspection Process

　　It cannot be overstated: safety must be the absolute priority throughout every stage of a paper machine roll inspection. These are large, heavy components, often located in confined or elevated spaces, and part of complex machinery. Adherence to strict safety protocols is non-negotiable to prevent accidents and injuries. The Lockout/Tagout (LOTO) procedure is the first line of defense, ensuring that the machine section being inspected cannot be accidentally started. All energy sources – electrical, mechanical, hydraulic, pneumatic, thermal (steam) – must be isolated and dissipated. Proper fall protection is required when working at heights, such as on top of dryer sections. Confined space entry procedures must be followed if inspection requires entering dryer cans or other enclosed areas. This includes air quality monitoring, attendant personnel, and rescue plans. Using the correct, well-maintained tools and equipment is also a safety factor; damaged tools or ladders can lead to accidents. Proper handling techniques are essential when moving inspection equipment or dealing with potentially heavy roll components like bearing housings. Awareness of surroundings is critical – watch out for pinch points, rotating equipment in adjacent areas (if LOTO is localized), hot surfaces, and potential slip or trip hazards. Good housekeeping in the inspection area contributes significantly to safety. Have you considered all potential hazards before starting? A pre-task safety briefing or job safety analysis (JSA) is always a good practice, especially for non-routine or complex inspection tasks. Ultimately, a thorough inspection is worthless if it comes at the cost of someone's safety.

Conclusion: The Value of Diligence in Roll Inspection

　　In conclusion, conducting a thorough inspection of paper machine rolls is a multi-faceted process that demands diligence, expertise, and a systematic approach. It extends far beyond a simple visual check, integrating careful preparation, detailed surface and structural examination, advanced Non-Destructive Testing techniques, specific considerations for different roll types, dynamic operational monitoring, and meticulous documentation. The benefits of such rigor are clear: enhanced paper quality through consistent roll performance, improved machine uptime by preventing unexpected failures, significant cost savings by avoiding catastrophic damage and optimizing maintenance schedules, and, most importantly, a safer working environment for everyone in the mill. Neglecting roll inspection or performing only superficial checks is, frankly, a high-risk gamble. Investing in the time, training, and appropriate tools – including potentially partnering with specialists or utilizing advanced monitoring technologies like those our company provides – yields substantial returns in reliability and operational excellence. The health of your paper machine rolls is intrinsically linked to the health of your entire papermaking operation. Therefore, embracing a truly thorough inspection philosophy isn't just best practice; it's essential for long-term success and sustainability in this demanding industry.
