The journey from pulp slurry to a finished sheet of paper is a complex, high-speed ballet of mechanical precision, and at the heart of this process lie the paper machine rolls. These aren't just simple cylinders; they are highly engineered components, each designed for a specific, critical task within the papermaking sequence. Frankly speaking, the performance, efficiency, and quality output of an entire paper machine hinge significantly on the condition and correct application of its rolls. Understanding the distinct types of rolls – from the initial forming section through pressing, drying, calendering, and reeling – is fundamental for anyone involved in paper production, maintenance, or engineering. Each roll type faces unique operational demands, whether it's handling delicate wet webs, exerting immense pressure for water removal, transferring heat efficiently, or imparting the final desired surface finish. It's worth noting that subtle differences in roll design, materials, and coverings can have a profound impact on sheet properties, runnability, and overall operational costs. Have you ever truly considered the sheer variety and specialized nature of these rotating giants that make modern papermaking possible? This exploration aims to shed light on the different categories of rolls, their functions, and why selecting and maintaining the right roll for each position is absolutely paramount for success in the competitive paper industry.

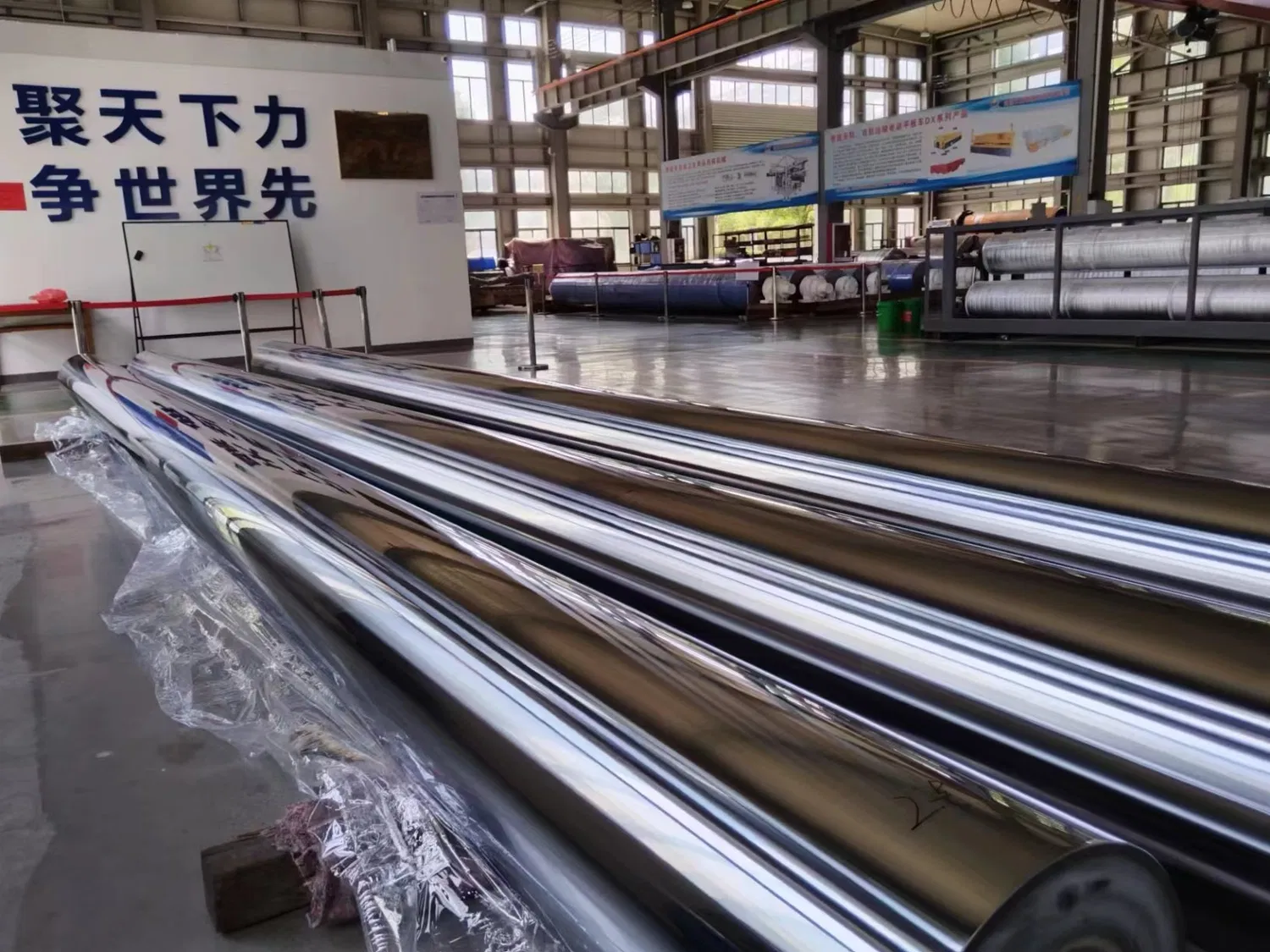

The Critical Forming Section Rolls
The very beginning of the paper sheet's life occurs in the forming section, often called the wet end, and the rolls here play a pivotal role in initial water drainage and web formation. The primary roll in many traditional Fourdrinier machines is the breast roll, located at the headbox end, which supports the forming fabric as it receives the pulp slurry. Opposite it, at the couch section, is the couch roll. This is typically a large-diameter roll, often suction-equipped, whose main job is to transfer the fragile, newly formed web from the forming fabric to the press section. Significant water removal also happens here. Between these two major rolls, a series of smaller diameter rolls known as forming rolls and table rolls (or hydrofoils/vacuum foils in more modern setups) support the fabric and actively assist in dewatering. Early designs relied heavily on the rotational pumping action of table rolls, while newer designs utilize foils to gently remove water with less disruption to the forming sheet. Suction rolls, particularly the couch roll and sometimes suction breast rolls, use internal vacuum boxes to actively pull water through the sheet and fabric. The design and surface characteristics of these forming section rolls are critical; they must facilitate drainage without sealing the sheet or disrupting the delicate fiber network. Material selection often involves bronze, stainless steel, or rubber-covered steel cores to resist corrosion in the wet, chemically active environment. To be honest, maintaining the precise alignment and surface condition of these rolls is essential for achieving uniform sheet formation and preventing defects right from the start.
Press Section Rolls: Masters of Water Removal
Once the nascent paper web leaves the forming section, it still contains a significant amount of water, typically around 80%. The press section's primary objective is to mechanically remove as much of this water as possible before the sheet enters the energy-intensive dryer section. This is achieved by passing the sheet, supported by felts, through one or more nips formed by pairs of large, heavily loaded press rolls. The pressure exerted in these nips, known as Nip Load, literally squeezes water from the sheet into the absorbent press felts. There's a fascinating variety of press roll types, each designed to optimize water removal under different conditions. Common types include:
- Plain Rolls: Solid, smooth-surfaced rolls, often made of granite or synthetic materials, typically run against a softer, covered roll.
- Suction Press Rolls: These rolls have drilled holes connected to an internal vacuum box. The vacuum helps pull water from the felt and prevents the sheet from re-wetting after the nip.
- Grooved Rolls: These feature circumferential grooves on their surface. The grooves provide channels for the expressed water to escape the nip without having to travel far through the felt, improving dewatering efficiency, especially at higher speeds.
- Blind Drilled Rolls: Similar to suction rolls but the holes don't go all the way through. They act as small reservoirs to accept water pressed from the sheet, reducing hydraulic pressure buildup in the nip.
- Shoe Press Rolls: A more advanced design featuring a stationary "shoe" pressing against a rotating belt or roll, creating a much wider nip (Extended Nip Press or ENP). This longer dwell time in the nip allows for significantly higher water removal at lower peak pressures, benefiting sheet strength and bulk.
Dryer Section Cylinders: The Evaporation Powerhouse
After the press section, the paper sheet, now considerably drier but still containing roughly 50-60% water, enters the dryer section. This is typically the longest section of the paper machine and consumes the most energy, primarily in the form of steam. The goal here is straightforward: evaporate the remaining water down to the final target moisture content (usually 5-8%). This is accomplished by passing the sheet over a series of large, steam-heated cylinders known as dryer cans or dryer cylinders. These cylinders are essentially pressure vessels, precision-manufactured usually from cast iron, designed to withstand internal steam pressure and transfer heat efficiently and uniformly to the paper sheet, which is held against the hot surface by dryer fabrics or felts. The effectiveness of the drying process depends on several factors: steam pressure (which dictates temperature), the heat transfer coefficient between the cylinder surface and the sheet, contact time, and the efficiency of removing the evaporated moisture (condensate) from inside the cylinders. Internal siphon systems or rotating syphons are crucial for continuous condensate removal, preventing buildup that would impede heat transfer. Interestingly enough, the arrangement of dryer cylinders (e.g., single-tier, double-tier) and the design of the dryer hood and ventilation system are also critical for controlling humidity and maximizing evaporation rates. Ensuring clean cylinder surfaces, both internally (condensate removal) and externally (doctoring to remove fiber buildup), is vital for maintaining consistent drying profiles and preventing sheet defects. Why is uniform drying so important? Uneven moisture profiles can lead to issues like curl, cockling, and poor dimensional stability in the final product.
Calender Rolls: Shaping the Surface and Smoothness
Once the paper sheet is dried to its target moisture level, it often proceeds to the calender stack. The primary purpose of calendering is to improve the sheet's surface properties, particularly smoothness and gloss, and to control its final thickness (caliper). Calendering works by passing the paper web through one or more nips formed by pairs of specialized rolls under controlled pressure, temperature, and sometimes moisture conditions. The intense pressure in the nip compresses the sheet, smoothing the surface fibers and reducing caliper. There are several types of calenders and associated rolls. Traditional hard nip calenders use stacks of chilled iron or steel rolls, creating very high nip pressures that primarily increase density and smoothness. Soft nip calenders, on the other hand, involve a nip formed between a hard, heated roll (like thermo-rolls made of steel or chilled iron) and a softer, polymer-covered roll. Soft calendering generally produces better bulk preservation and printability compared to hard nip calendering for many grades. The temperature of the thermo-roll and the properties of the soft cover material (its elasticity and recovery) are critical process variables. Multi-nip calenders allow for progressive treatment of the sheet. The surface finish of the calender rolls themselves is paramount; any imperfections will be transferred directly onto the paper surface. Therefore, these rolls require precise grinding and polishing. Factors like roll temperature control, nip pressure uniformity (again, requiring proper crowning), and roll surface cleanliness are crucial for achieving the desired final paper characteristics without causing defects like barring or blackening. It's a delicate balancing act to achieve the target smoothness and gloss without excessively degrading sheet strength or bulk.
Reel Spools and Winding Technology
At the very end of the paper machine lies the reel section, where the continuous web of finished paper is wound onto large spools, forming parent rolls or jumbo rolls. The primary component here is the reel spool, a heavy-duty steel core onto which the paper is wound. While seemingly simpler than rolls in other sections, the reel spool must be robust enough to handle the weight of a massive paper roll (which can be many tons) and the dynamic forces during high-speed winding. The process is typically managed by a reel drum, a driven roll that controls the speed and tension of the web as it's wound onto the spool. The nip formed between the reel drum and the building paper roll is critical for controlling the density and structure of the parent roll. Modern reeling systems often feature automated spool change sequences to allow continuous operation without stopping the machine. The technology ensures that the spool is engaged smoothly, the web is transferred cleanly, and the full parent roll is ejected, all while maintaining consistent tension. Proper winding requires careful control over nip pressure and torque difference between the reel drum and the spool (center winding assist) to build a stable roll without defects like wrinkles, bursts, or excessive hardness variations. A well-wound parent roll is essential for efficient downstream converting processes like slitting and rewinding. Frankly speaking, problems originating earlier in the machine often manifest themselves during reeling, making it a key quality checkpoint. Have you ever considered how challenging it is to wind a delicate, wide web at high speeds onto a massive roll without introducing defects?
Roll Materials, Coverings, and Surface Engineering
The performance and longevity of paper machine rolls are heavily influenced by the materials used in their construction and, crucially, their surface characteristics. The core or shell of the roll provides the structural integrity and is typically made from materials like cast iron (especially for dryer cylinders due to heat transfer properties), steel (for strength and deflection resistance), granite (historically used in presses for its hardness and water repellency), or bronze alloys (for corrosion resistance in wet sections). However, the roll's surface is often where the real magic happens, tailored precisely for its specific function. Roll covers are ubiquitous, particularly in the press and forming sections, and increasingly in calendering. These covers, typically made from rubber, polyurethane, or composite materials, serve multiple purposes: they provide the desired surface hardness (measured in P&J – Pusey and Jones Plastometer), create the necessary nip conditions, enhance water removal, resist wear and chemical attack, and protect the underlying roll shell. The selection of cover material, thickness, and properties like groove or drill patterns (for press rolls) is a science in itself. For instance, softer covers might be used to create wider nips or handle delicate sheets, while harder covers are needed for high-load applications. Beyond polymeric covers, surface engineering techniques like thermal spraying (applying coatings of ceramics, carbides, or metals) are used on rolls like dryer cylinders or calender rolls to improve wear resistance, heat transfer, release properties, or corrosion resistance. It's worth noting that the development of advanced roll cover materials and coating technologies continues to drive improvements in machine speed, efficiency, and paper quality across the industry.
The Importance of Roll Maintenance: Crowning, Grinding, and Balancing
Given their critical functions and the demanding operating conditions they endure, paper machine rolls require meticulous maintenance to ensure optimal performance and prevent costly downtime. Three key aspects of roll maintenance are crowning, grinding, and balancing. Crowning refers to the practice of grinding a slight curvature onto the face of a roll, typically making the diameter slightly larger in the center than at the ends. Why is this necessary? Under the high nip loads present in press and calender sections, rolls deflect or bend slightly. Crowning compensates for this deflection, ensuring that the pressure across the nip remains uniform along the entire width of the paper machine. Without proper crowning, the nip pressure would be higher at the edges and lower in the middle (or vice-versa depending on the roll pair), leading to uneven water removal, caliper variations, and potential sheet damage. The required crown profile depends on the roll's dimensions, material, operating load, and its mating roll. Grinding is the process used to create or restore the precise dimensions, profile (including the crown), and surface finish of a roll. Over time, roll surfaces wear down, covers can become damaged, or the profile may change. Regular grinding in specialized roll grinding machines is essential to maintain the roll's geometry and surface quality. Balancing is also critical, especially for rolls operating at high speeds. Any imbalance in a roll can cause vibrations that damage bearings, compromise nip uniformity, and potentially lead to catastrophic roll failure. Dynamic balancing ensures that the roll's weight is evenly distributed around its axis of rotation, allowing for smooth operation. In my experience, a proactive roll maintenance program, incorporating regular inspections, grinding schedules based on wear patterns, and proper balancing, is fundamental to achieving consistent paper quality and maximizing machine uptime. Our company recognizes the criticality of roll maintenance and offers specialized services to ensure rolls perform at their peak.
Conclusion: The Indispensable Role of Specialized Rolls
In conclusion, the seemingly simple concept of a roll belies the incredible diversity and specialized engineering embodied in the various types of paper machine rolls. From the initial dewatering facilitated by forming and couch rolls, through the intense mechanical squeezing in the press section, the evaporative power of the dryer cylinders, the surface refinement achieved by calender rolls, and finally, the careful accumulation on the reel spool, each roll type is meticulously designed to perform its specific task efficiently and reliably. The choice of materials, the application of specific covers or coatings, and the precise geometry including crowning are all critical factors determining a roll's effectiveness. Understanding these differences is not merely an academic exercise; it's essential for optimizing paper machine performance, ensuring consistent product quality, minimizing energy consumption, and maximizing operational lifespan. Neglecting the condition or proper application of even a single roll can have cascading negative effects throughout the entire process. As technology advances, we continue to see innovations in roll design, materials, and surface treatments, all aimed at pushing the boundaries of speed, efficiency, and quality in papermaking. Recognizing the unique contribution of each roll type underscores their collective importance as the foundational components upon which the entire papermaking process rests. Addressing the specific needs of each position with high-quality, well-maintained rolls, such as those our company provides along with expert support, is key to competitive and successful paper production.
