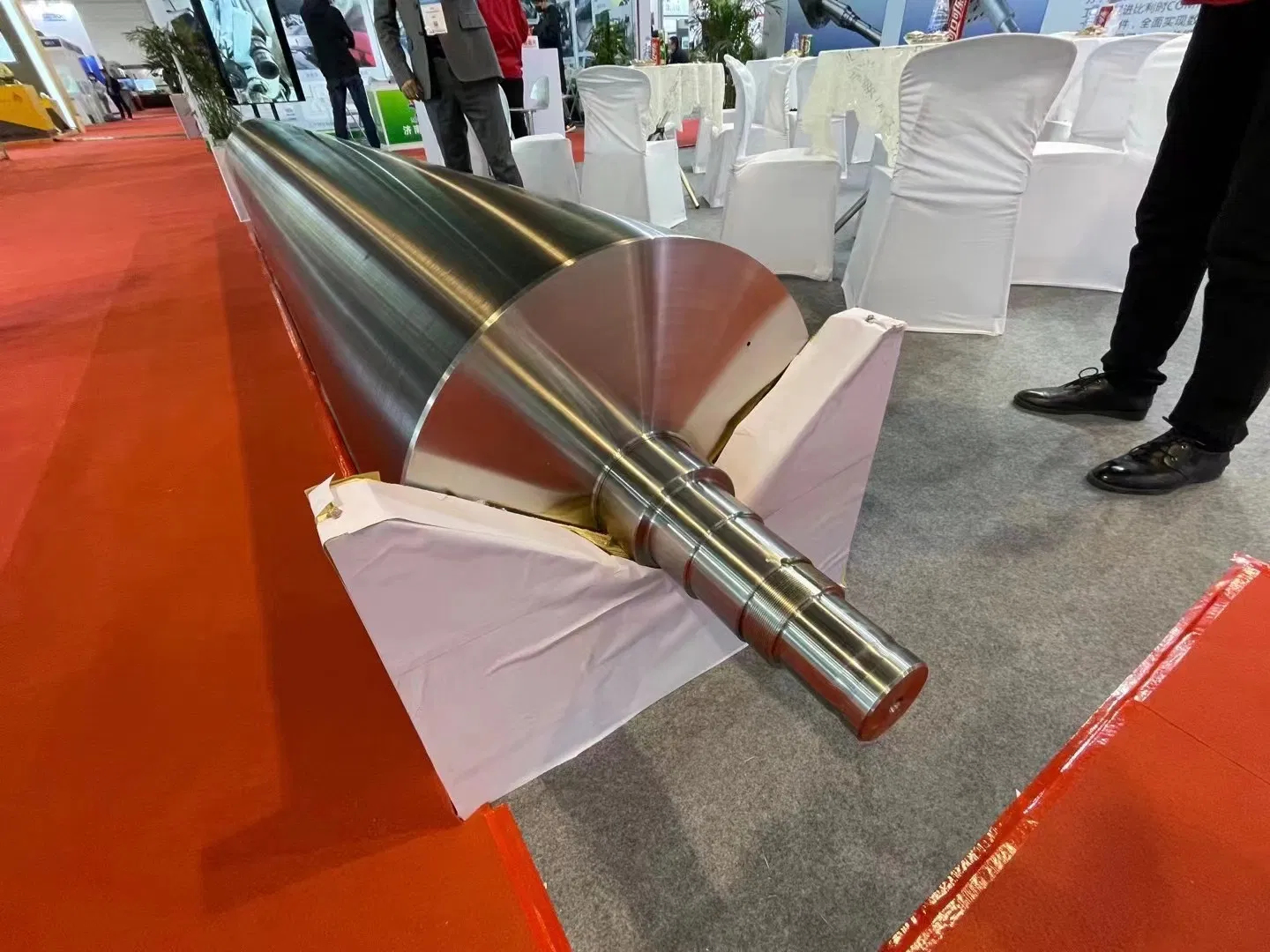

Have you ever paused to consider the intricate journey a slurry of pulp takes to become a smooth, finished sheet of paper? At the very heart of this complex transformation lies a series of precisely engineered components: the paper machine rolls. These cylindrical workhorses are far more than simple rotating parts; they are fundamental to every stage of the papermaking process, from initial sheet formation and water removal to drying, surface finishing, and final winding. Frankly speaking, the efficiency of the entire paper machine, the quality of the final product, and the overall profitability of the operation hinge significantly on the performance and condition of these rolls. Understanding their function, diversity, and maintenance requirements is not just beneficial, it's absolutely essential for anyone involved in the paper industry. Without optimally functioning rolls, achieving consistent paper properties, minimizing downtime, and controlling operational costs becomes an uphill battle. It's a technology refined over decades, yet continuous innovation ensures these components remain critical.
The Symphony of Rotation: Understanding Core Roll Functions
Imagine the paper machine as a long, complex pathway. The paper sheet, initially a fragile web suspended in water, travels through distinct sections, and in each section, rolls perform specific, critical tasks. In the forming section, rolls like the breast roll and forming rolls support the forming fabric (wire) where the initial sheet structure is created as water drains away. The couch roll then plays a vital role in transferring the delicate web from the forming fabric to the press section, often utilizing suction to remove more water. Moving into the press section, large, heavily loaded press rolls squeeze water out mechanically, significantly increasing the sheet's solids content and strength – a far more energy-efficient process than thermal drying. These rolls work in pairs, creating nips that exert immense pressure. Following the press section, the sheet enters the dryer section, typically the longest part of the machine, where it snakes over numerous steam-heated dryer cylinders. These rolls transfer heat conductively to evaporate the remaining water down to the target moisture content. Finally, in the calender and reel sections, calender rolls smooth the paper surface, control thickness (caliper), and impart gloss if required, while the reel spool winds the finished paper into large parent rolls. Each roll's design and surface properties are meticulously tailored to its specific function within this sequential process.
A Diverse Family: Exploring Key Types of Paper Machine Rolls
The term "paper machine roll" encompasses a wide variety of designs, each optimized for its position and task. Delving into the Types of paper machine rolls reveals fascinating engineering tailored to specific needs. In the forming section, beyond the fundamental forming and breast rolls, you might find dandy rolls, which can impress watermarks or improve sheet formation. Couch rolls, critical for the web transfer, are often large suction rolls, featuring a perforated shell connected to an internal vacuum system to dewater the sheet and hold it securely during transfer. Press section rolls are perhaps the most diverse, including solid smooth rolls, suction press rolls (similar to couch rolls but handling a stronger sheet), blind-drilled rolls (with drilled pockets that don't go all the way through, creating reservoirs for water), and grooved rolls (with circumferential grooves to channel water away from the nip). The choice depends on the paper grade, machine speed, and desired dewatering characteristics. It's worth noting that the configuration of these rolls in single or multi-nip press arrangements significantly impacts water removal efficiency and sheet properties like density and smoothness. Understanding this variety is key to appreciating the complexity of machine design and operation.
Focus on Drying and Finishing Rolls
Continuing our exploration, the dryer section is dominated by dryer cylinders or cans. These are typically large-diameter, cast iron or steel shells heated internally by steam. Their primary function is heat transfer, demanding excellent thermal conductivity, uniform surface temperature, and structural integrity to handle steam pressure and operational stresses. Condensate removal systems within the dryers are crucial for maintaining efficient heating. Following drying, the paper often passes through a calender stack. Calender rolls are designed for extreme smoothness and hardness, often made from chilled cast iron or specialized composite materials. They operate under high linear loads to densify the sheet, reduce caliper variation, and improve surface smoothness or impart gloss. Depending on the configuration (hard nip, soft nip with a polymer-covered roll), they achieve different finishing effects. Finally, the reel spool, while seemingly simple, must be robust enough to support the immense weight of a full parent roll of paper and dynamically balanced to allow high-speed winding without vibration. Each of these roll types requires specific design considerations, materials, and maintenance protocols to ensure reliable performance and contribute positively to the final paper quality.
Material Science and Surface Engineering: Construction and Coatings
The performance and lifespan of any paper machine roll are intrinsically linked to its construction materials and surface characteristics. The roll body, or shell, is commonly manufactured from materials like cast iron (especially for dryer cylinders due to good heat transfer and pressure vessel qualities), forged steel (for high-load applications requiring strength and stiffness, like certain press or calender rolls), or even granite (historically used for some press rolls, valued for its water repellency and smooth surface). Increasingly, advanced composite materials are being employed for specific applications, offering benefits like lower weight and corrosion resistance. However, the roll body itself rarely contacts the paper sheet directly, especially in the wet end sections. This is where roll covers come into play. These are layers of elastomeric materials like rubber or polyurethane, or sometimes harder materials, applied to the roll shell. Covers provide the necessary surface properties for water removal (in press rolls), sheet release, wear resistance, and controlled nip behavior. The specific compound formulation (hardness, chemical resistance, temperature stability) is critical and tailored to the roll's position and the paper grade being produced. In my experience, selecting the right cover and ensuring its proper application and maintenance is paramount for consistent performance.
The Role of Advanced Coatings
Beyond elastomeric covers, specialized coatings are frequently applied to enhance roll performance and longevity in demanding environments. Think about the harsh conditions: high temperatures, moisture, chemical additives, and abrasive fillers in the paper stock. Thermal spray coatings, such as ceramics (like chromium oxide or tungsten carbide), are often used on dryer cylinders, guide rolls, and some press rolls to provide exceptional wear resistance, corrosion protection, and sometimes specific surface textures for better sheet handling or release. Chrome plating is another common surface treatment, particularly for calender rolls, offering a hard, smooth, and corrosion-resistant surface ideal for finishing operations. The selection of a coating depends heavily on the primary challenges faced by the roll in its specific location. Is wear the main issue? Corrosion? Sheet release? The right coating can significantly extend a roll's service life, maintain its surface integrity for longer, and ultimately contribute to more stable machine operation and higher paper quality. It's a sophisticated field where material science directly impacts papermaking efficiency. Frankly speaking, investing in the right coating technology often pays dividends by reducing maintenance frequency and improving runnability.
Precision in Motion: The Criticality of Roll Design Parameters
Effective paper machine roll function goes far beyond just the right materials and covers; it demands exceptional precision in design and manufacturing. One of the most critical design considerations, particularly for press and calender rolls operating under high load, is crowning. Because rolls deflect slightly under load (bending like a beam), a perfectly cylindrical roll would actually create higher pressure at the edges than in the center of the nip. Crowning involves grinding the roll surface with a slight convex curvature, so that under operating load, the deflection is compensated, resulting in a uniform pressure profile across the entire width of the paper sheet. Incorrect or inadequate crowning leads directly to uneven moisture profiles, caliper variations, and potential sheet defects. Another vital aspect is dynamic balancing. As these rolls rotate at high speeds, even minor imbalances can cause significant vibration, leading to barring (periodic marks on the paper), excessive wear on bearings and surrounding structures, and potentially catastrophic roll failure. Balancing to stringent standards is therefore non-negotiable. Furthermore, the roll's surface finish (measured by parameters like Ra, average roughness) must be precisely controlled according to its function – extremely smooth for calendering, or with specific textures for traction or water handling. Why is this precision so effective? Because it directly translates into control over the paper properties and the stability of the high-speed manufacturing process.
Keeping the Wheels Turning: Essential Paper Machine Roll Maintenance
Even the best-designed and manufactured rolls require diligent care to deliver sustained performance. A comprehensive Paper machine roll maintenance program is fundamental to preventing unexpected failures and ensuring consistent paper quality. Regular inspections form the backbone of this program. This includes visual checks for cover damage (cracks, blisters, wear), corrosion on roll bodies or heads, and signs of leakage from bearings or hydraulic systems. Non-destructive testing (NDT) techniques, such as ultrasonic testing, can be employed to assess internal shell integrity or detect cover debonding before it becomes visible. Cleaning is also crucial, especially for dryer cylinders where deposit buildup can impede heat transfer, and for grooved or drilled rolls where plugged holes reduce dewatering efficiency. Perhaps the most critical maintenance activity for covered rolls and calender rolls is periodic roll grinding. Over time, surfaces wear, crowns diminish, and surface damage occurs. Grinding restores the correct profile, surface finish, and roundness, ensuring uniform nip pressure and optimal performance. The frequency of grinding depends on the roll type, cover material, operating conditions, and wear rate. Coupled with proper bearing lubrication and condition monitoring, these practices significantly extend roll life and prevent costly unplanned downtime. Neglecting maintenance is, to be honest, a recipe for operational headaches and reduced profitability.
Navigating Challenges: Troubleshooting Common Roll Problems
Despite best efforts in design and maintenance, paper machine rolls can experience issues that impact production. Understanding common problems and their potential causes is key to effective troubleshooting. Vibration is a frequent culprit, often stemming from imbalance, bearing defects, misalignment, or issues with associated components like drive systems or felt/fabric guiding. Vibration analysis is a powerful diagnostic tool here. Barring, characterized by periodic marks or caliper variations across the sheet, can be linked to roll corrugations (uneven wear), gear mesh frequencies, or resonant vibrations in the machine structure. Identifying the frequency and source is crucial for correction, often involving roll grinding or addressing the root mechanical issue. Corrosion remains a persistent challenge, especially in the wet, chemically active environment of the forming and press sections, or internal corrosion in dryer cylinders. Material selection, protective coatings, and water chemistry control are primary countermeasures. Roll cover damage, such as cuts, tears, heat checking, or debonding from the shell, can severely impact performance and requires prompt repair or replacement. Bearing failures, often preceded by increased temperature or vibration, can lead to catastrophic roll damage if not detected early through condition monitoring. Addressing these issues promptly minimizes their impact on paper quality and machine availability.
Making the Right Choice: Selecting and Sourcing Rolls
Selecting new or replacement paper machine rolls is a significant decision with long-term implications for machine performance and operational costs. It's not just about finding a roll that fits dimensionally; several factors must be carefully considered. The specific application is paramount – is it a forming roll, a high-load press roll, a dryer cylinder, or a precision calender roll? Each demands different structural characteristics, materials, and surface properties. The paper grades being produced and the machine's operating speed also heavily influence design requirements, particularly concerning load capacity, critical speed, and cover/coating selection. Budget is always a consideration, but it's crucial to evaluate the total cost of ownership, not just the initial purchase price. A cheaper roll that wears quickly or requires frequent maintenance can be far more expensive in the long run. Supplier expertise and reputation are also vital. Can the supplier provide engineering support, understand the specific challenges of the application, and offer proven solutions? Our company, for instance, leverages extensive experience to help clients navigate these complex decisions, ensuring the selected rolls meet or exceed performance expectations. Considering factors like warranty, technical support, and lead time for delivery is also important for smooth integration and long-term partnership. What criteria do you prioritize when selecting critical machine components?
Conclusion: The Foundation of Quality Papermaking
In summary, paper machine rolls are far more than just rotating cylinders; they are precision-engineered components that form the very foundation of the papermaking process. From the initial formation of the sheet to its final winding, these rolls perform indispensable functions related to water removal, sheet consolidation, drying, and surface finishing. The intricate interplay between roll design, materials, surface covers or coatings, and meticulous maintenance directly dictates the efficiency of the paper machine, the quality of the end product, and the overall economic viability of the operation. Understanding the diverse types of rolls, their specific functions, and the critical importance of parameters like crowning, balancing, and surface integrity allows mills to optimize their processes. Investing in high-quality rolls and implementing rigorous maintenance practices, including regular inspections and timely grinding, is not an expense but a strategic investment in reliability and quality. For those looking to enhance their papermaking operations, focusing on the health and performance of their paper machine rolls is an excellent starting point. Taking proactive steps ensures smoother operation, fewer defects, and a consistently better final product.
