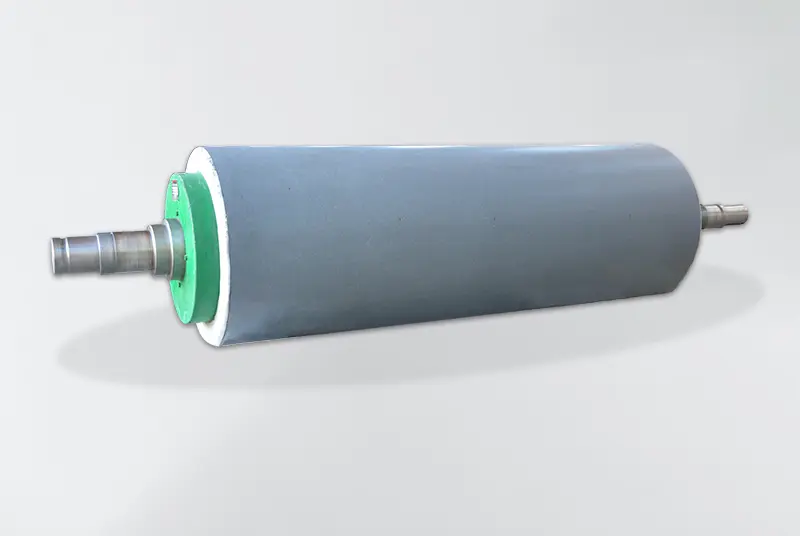

Paper-making rolls are the unsung heroes of the paper production process, tirelessly working to transform pulp into the paper we use every day. These robust components, ranging from massive press rolls to intricate guide rolls, are essential for ensuring consistent paper quality and efficient operation. However, despite their sturdy construction, paper-making rolls are subjected to incredibly demanding conditions. They endure constant pressure, high speeds, varying temperatures, and exposure to corrosive chemicals and abrasive materials. Because of these harsh operating environments, a range of problems can arise, impacting not only the quality of the paper produced but also the overall productivity and profitability of paper mills. Understanding these common issues and knowing how to address them is crucial for any paper mill operator aiming for optimal performance and longevity of their equipment. In this article, we will delve into the most frequently encountered problems with paper-making rolls and, more importantly, explore effective solutions to mitigate these challenges.
Surface Wear and Damage: The Scars of Constant Operation
One of the most prevalent problems affecting paper-making rolls is surface wear and damage. Imagine the relentless friction and pressure these rolls endure as they process tons of abrasive pulp day in and day out. Over time, this constant stress takes its toll. Surface wear can manifest in various forms, from gradual abrasion and erosion to more severe scoring, scratching, and even cracking. The causes are multifaceted, including the abrasive nature of the paper pulp itself, the presence of contaminants like grit and fibers, and even improper roll cleaning or maintenance practices. The consequences of surface wear are significant. A damaged roll surface can lead to uneven paper thickness, surface defects, and reduced paper quality. Furthermore, it can negatively impact the efficiency of the paper-making process, potentially causing web breaks and production downtime. Addressing surface wear promptly is therefore essential. Solutions range from regular inspections and preventative maintenance to more extensive repairs like roll grinding, resurfacing with specialized coatings, or even complete roll replacement in severe cases. Choosing the right approach depends on the extent of the damage and the specific requirements of the paper-making process.
Corrosion and Chemical Attack: An Unseen Enemy
Beyond the visible wear and tear, paper-making rolls are also constantly battling an unseen enemy: corrosion and chemical attack. The paper-making process often involves a cocktail of chemicals, from bleaching agents and sizing chemicals to pH adjusters and cleaning solutions. These chemicals, combined with moisture and varying temperatures, create a highly corrosive environment. Different types of corrosion can affect paper-making rolls, including general corrosion, pitting corrosion, and crevice corrosion. General corrosion is a uniform degradation across the roll surface, while pitting corrosion is more localized and creates small pits or holes. Crevice corrosion occurs in confined spaces, such as under seals or in joints, where chemicals can become trapped and concentrated. The materials used in roll construction play a critical role in their resistance to corrosion. Stainless steel, various alloys, and specialized coatings are often employed to combat chemical attack. Preventative measures are equally important. Regular cleaning to remove chemical residues, proper drainage to prevent moisture accumulation, and the application of protective coatings are all vital strategies. In situations where corrosion is unavoidable, regular inspections and timely repairs, such as weld repairs or component replacement, are necessary to maintain roll integrity and prevent catastrophic failures.
Bearing Failures: The Silent Stoppage
Bearings are the unsung heroes within paper-making rolls, enabling smooth rotation and handling immense loads. However, these critical components are also susceptible to failure, often leading to unexpected downtime and costly repairs. Bearing failures in paper-making rolls can stem from a variety of factors. One common culprit is contamination. Paper pulp, fibers, water, and other debris can infiltrate the bearing housing, leading to lubrication breakdown and accelerated wear. Improper lubrication, whether due to insufficient lubricant, incorrect lubricant type, or inadequate lubrication intervals, is another major contributor. Overloading, misalignment, and vibration can also place excessive stress on bearings, shortening their lifespan. Recognizing the signs of impending bearing failure is crucial for preventative maintenance. These signs can include increased noise or vibration, elevated bearing temperature, lubricant leaks, or changes in roll rotation smoothness. Addressing bearing problems proactively involves regular inspections, proper lubrication practices, and, when necessary, timely bearing replacement. Selecting the correct bearing type for the application, considering factors like load, speed, and operating environment, is also essential for maximizing bearing life and minimizing downtime. Furthermore, implementing condition monitoring techniques, such as vibration analysis and temperature monitoring, can provide early warnings of bearing degradation, allowing for planned maintenance interventions before failures occur.
Uneven Pressure Distribution: The Quest for Uniform Paper Quality
Achieving uniform pressure distribution across the nip – the contact zone between two rolls – is paramount in paper-making. Uneven pressure can lead to a host of paper quality issues, including variations in sheet thickness, moisture content inconsistencies, and uneven surface finish. Several factors can contribute to uneven pressure distribution. Roll deflection, caused by the weight of the roll itself and the forces exerted during operation, is a primary concern. Rolls, especially long ones, can bend slightly under load, leading to higher pressure in the center and lower pressure at the edges. Crown wear, which refers to the gradual wearing down of the roll crown (a slight curvature designed into the roll surface to compensate for deflection), can also disrupt pressure uniformity. Misalignment between rolls, bearing wear, and even variations in the roll cover material thickness can further exacerbate pressure imbalances. To combat uneven pressure distribution, paper mills employ various strategies. Roll crowning is a fundamental technique, where rolls are manufactured with a specific profile to counteract deflection under load. Controlled crown rolls, which allow for on-the-fly adjustment of the crown profile, offer even greater flexibility in optimizing pressure distribution. Regular roll grinding and profiling are essential to maintain the correct crown shape and ensure uniform nip pressure. Furthermore, precise roll alignment and regular bearing maintenance are crucial for preventing pressure imbalances. By meticulously managing pressure distribution, paper mills can ensure consistent paper quality and minimize defects.
Vibration and Runout: Shaking the Foundations of Smooth Operation
Excessive vibration and runout in paper-making rolls are detrimental to both paper quality and machine reliability. Vibration, which is the oscillatory motion of the roll, and runout, which is the deviation of the roll's rotational axis from its ideal center, can stem from a variety of sources. Imbalance is a common culprit, where uneven mass distribution within the roll causes it to vibrate during rotation. Bearing defects, such as wear or damage, can also induce vibration. Misalignment of rolls or couplings can contribute to both vibration and runout. Furthermore, resonance, where the operating frequency coincides with the natural frequency of the roll or machine structure, can amplify vibrations to damaging levels. The consequences of excessive vibration and runout are far-reaching. They can lead to poor paper quality, including uneven sheet formation and surface imperfections. Vibration can also accelerate wear and tear on bearings, seals, and other machine components, increasing maintenance costs and downtime. In severe cases, vibration can even lead to fatigue failures and structural damage. Addressing vibration and runout problems requires a systematic approach. Dynamic balancing, which involves precisely adjusting the mass distribution of the roll to minimize imbalance, is a crucial step. Regular vibration analysis, using specialized instruments to measure and diagnose vibration characteristics, can help identify the root causes of vibration problems. Proper roll alignment, bearing maintenance, and resonance analysis are also essential components of a comprehensive vibration control strategy. By minimizing vibration and runout, paper mills can ensure smoother operation, improved paper quality, and extended equipment lifespan.
Roll Deflection and Bending: The Challenge of Scale
As paper machines have grown in size and operating speeds have increased, roll deflection and bending have become increasingly significant challenges. The sheer length and weight of modern paper-making rolls, coupled with the high nip loads they must withstand, make them prone to deflection. Roll deflection, as mentioned earlier, is the bending of the roll under load. Excessive deflection can lead to uneven nip pressure, resulting in variations in paper thickness, moisture profile inconsistencies, and sheet defects. The degree of deflection is influenced by several factors, including the roll diameter, length, material properties, and the applied load. Longer rolls and rolls made from less stiff materials will deflect more under the same load compared to shorter or stiffer rolls. To mitigate the effects of roll deflection, paper machine designers and operators employ various strategies. Increasing the roll diameter is a common approach, as larger diameter rolls are inherently stiffer and less prone to deflection. Selecting materials with higher stiffness, such as steel or composite materials, can also reduce deflection. Roll crowning, as discussed previously, is another crucial technique for compensating for deflection and achieving uniform nip pressure. Furthermore, advanced roll support systems, including intermediate roll supports and hydrostatic bearings, can provide additional support and minimize deflection, particularly for very long rolls. By carefully considering roll design, material selection, and support systems, paper mills can effectively manage roll deflection and maintain consistent paper quality across wider machine widths.
Thermal Issues: Managing Heat in High-Speed Operations
Paper-making rolls, especially those operating at high speeds and under heavy loads, can generate significant amounts of heat. This heat can arise from various sources, including friction within bearings, hysteresis in roll covers, and the mechanical work done on the paper web. If not effectively managed, excessive heat buildup can lead to a range of problems. Overheating can damage roll covers, causing them to soften, blister, or even delaminate. It can also accelerate bearing wear and lubricant degradation, shortening component lifespan. Furthermore, uncontrolled temperature variations across the roll surface can lead to uneven paper drying and quality issues. Effective thermal management is therefore crucial for reliable and efficient paper machine operation. Roll cooling systems are commonly employed to dissipate heat and maintain rolls within their optimal operating temperature range. These systems can utilize various cooling media, such as water or air, and may involve internal cooling channels within the roll or external cooling showers. Temperature sensors and control systems are used to monitor roll temperatures and automatically adjust cooling as needed. In addition to active cooling, proper roll cover material selection plays a role in thermal management. Materials with good thermal conductivity can help dissipate heat more effectively. Lubrication practices also influence heat generation in bearings. Selecting the appropriate lubricant type and ensuring proper lubrication can minimize friction and heat buildup. By implementing comprehensive thermal management strategies, paper mills can prevent overheating issues, extend component life, and maintain consistent paper quality.
Conclusion: Proactive Maintenance for Peak Performance
In conclusion, paper-making rolls, while robust, are susceptible to a variety of problems stemming from the demanding conditions of paper production. From surface wear and corrosion to bearing failures, uneven pressure distribution, vibration, deflection, and thermal issues, these challenges can significantly impact paper quality, machine efficiency, and overall productivity. However, as we have explored, effective solutions exist for each of these problems. Proactive maintenance, including regular inspections, lubrication, cleaning, and timely repairs, is paramount. Employing advanced techniques like roll grinding, dynamic balancing, vibration analysis, and thermal management systems further enhances roll performance and longevity. Selecting appropriate roll materials, designs, and coatings tailored to specific application requirements is also crucial for minimizing problems and maximizing operational life. By understanding these common issues and implementing effective preventative and corrective measures, paper mills can ensure the reliable operation of their paper-making rolls, optimize paper quality, and maintain efficient and profitable production. Addressing these challenges head-on is not just about fixing problems as they arise; it's about building a culture of proactive maintenance and continuous improvement to ensure the long-term health and performance of these critical paper-making components.
What are your experiences with paper-making roll maintenance? Have you encountered any unique challenges in your operations?
