Introduction: The Unsung Hero of the Press Section

In the intricate and demanding world of papermaking, the press section stands as a critical checkpoint. Its primary function—mechanical dewatering—directly impacts everything from energy consumption in the dryer section to the final quality of the paper sheet. While several roll configurations exist, the Blind Hole Press Roll has established itself as a versatile and highly effective solution for a wide range of paper grades. This article provides a deep dive into the mechanics, design, manufacturing, and operational best practices associated with blind hole press rolls, offering insights for mill managers, engineers, and procurement specialists alike.

Unlike a suction roll, which uses a vacuum to actively pull water out, or a simple plain roll, the blind hole roll employs a unique passive dewatering mechanism. It provides a crucial balance, offering excellent water removal capabilities without the high operational costs and maintenance demands of vacuum systems.

The Mechanics of Dewatering: How a Blind Hole Press Roll Works

Understanding the blind hole roll requires looking at the dynamics within the press nip—the point of contact between two press rolls where the paper sheet and press felts are squeezed.

1. The Role of the Blind Holes

As the paper web and saturated felt enter the nip, immense hydraulic pressure is generated. The "blind holes"—a precisely engineered pattern of drilled cavities that do not go all the way through the roll shell—act as temporary reservoirs. This is the core of their function:

• Void Volume: The holes provide essential void volume to receive the water being squeezed from the sheet and the felt. Without these voids, the hydraulic pressure could re-saturate the sheet as it exits the nip, a phenomenon known as "rewetting."
• Pressure Relief: By capturing the water, the holes prevent the buildup of excessive hydraulic pressure that could crush the sheet or cause sheet sealing, which impedes water flow.

Once the roll surface rotates out of the nip, centrifugal force and the natural expansion of the rubber cover help to expel the water from the holes into a save-all pan, preparing them for the next cycle.

2. Nip Pressure and Dwell Time

The efficiency of a blind hole press roll is a function of the pressure applied at the nip (Press Load, measured in kN/m) and the time the sheet spends under that pressure (dwell time). A wider nip, often achieved with a softer, thicker roll cover, increases dwell time, allowing more water to migrate into the holes. The optimal balance depends heavily on the paper grade, machine speed, and felt properties.

Design and Manufacturing: The Foundation of Performance

A blind hole press roll is far more than just a steel core with holes and a rubber cover. It is a piece of high-precision engineering where every detail matters. The selection of a manufacturing partner is therefore critical to achieving desired performance and reliability.

Core Construction and Material

The roll shell must withstand immense loads without deflection. Common materials include cast iron, ductile iron, or forged steel, chosen based on the required nip loading and machine width. The internal structure is designed for maximum rigidity and is dynamically balanced to ensure smooth operation at high speeds, preventing vibrations that could affect paper quality.

Roll Cover: The Critical Interface

The roll cover is arguably the most critical component. It dictates nip width, chemical resistance, and wear characteristics. Modern covers are typically made from advanced rubber or polyurethane compounds. Polyurethane often offers superior abrasion resistance and a longer operational life, especially in demanding positions.

Precision Drilling: Where Art Meets Science

The drilling pattern (hole diameter, depth, and spacing) is not arbitrary. It is carefully calculated to provide the optimal open area (typically 15-25%) for the specific application. Advanced CNC drilling ensures that every hole is perfectly formed, with smooth interiors to prevent fiber plugging and facilitate water release.

Choosing a Partner for High-Performance Rolls: The Importance of Customization

Off-the-shelf solutions rarely unlock maximum potential. True efficiency gains come from rolls designed specifically for your machine's unique operating conditions. This is where partnering with a specialized manufacturer becomes invaluable.

For instance, leading manufacturers like us offer a fully integrated approach to roll production. We understand that a successful Blind Hole Press Roll is a synergy of metallurgy, polymer science, and precision machining. Our process focuses on collaboration with our clients to deliver a truly bespoke product.

What to Look for in a Custom Roll Manufacturer:

• Material Expertise: The ability to recommend and source the ideal core material and cover compound (rubber, polyurethane, or composites) for your specific paper grade and chemical environment.
• Advanced Drilling & Grooving: State-of-the-art CNC capabilities to create precise blind hole patterns and, if needed, combination grooves to further enhance dewatering.

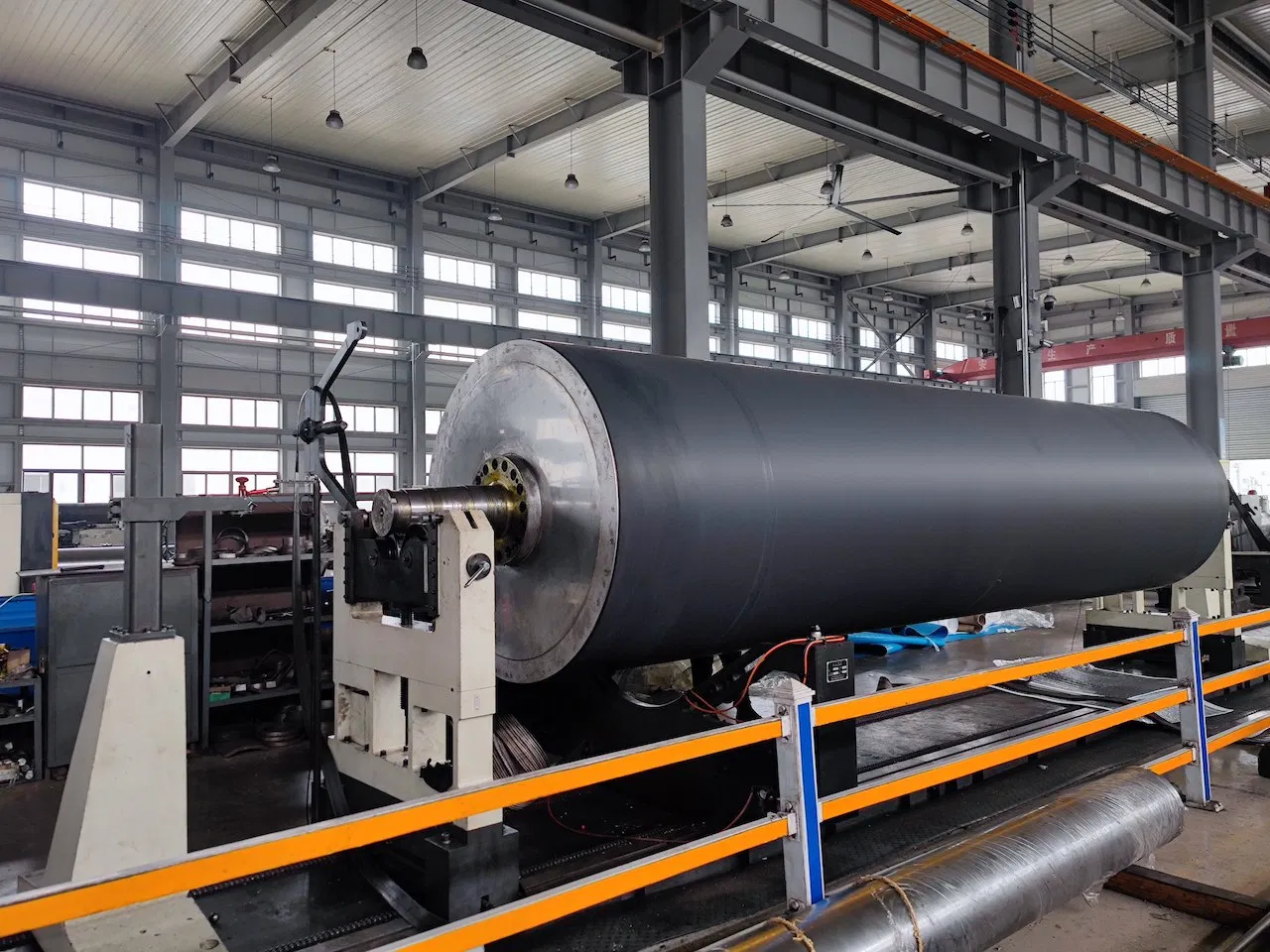

• Dynamic Balancing: Meticulous balancing at operational speeds to guarantee vibration-free performance.
• Comprehensive Support: From initial consultation and design to final installation and after-sales service.

We encourage you to think of your press roll not as a commodity, but as a long-term investment in your mill's productivity. We specialize in engineering custom Blind Hole Press Rolls tailored to your exact specifications. Our team is ready to analyze your needs—machine speed, paper grades, and current challenges—to design a roll that delivers higher web solids, extends felt life, and boosts your bottom line.

Contact Us for a Custom Roll Consultation

Maximizing Roll Lifespan: Maintenance and Troubleshooting

Even the best-designed roll requires proper care. Regular maintenance is key to maximizing its lifespan and ensuring consistent performance.

Common Challenges:

• Hole Plugging: The most common issue. Fines, fillers, and stickies can clog the holes, drastically reducing their water-carrying capacity. High-pressure water showers (up to 700 psi / 50 bar) are essential for keeping holes clean. Chemical cleaning may also be required periodically.
• Shadow Marking: A pattern on the paper sheet that mirrors the hole pattern of the roll. This is often caused by incorrect nip conditions, a worn cover, or improper felt selection.
• Cover Wear and Damage: Abrasive fillers in the paper stock can wear down the cover over time. Regular nip impression analysis and surface grinding are necessary to maintain the correct roll profile and surface texture.

Conclusion: A Key Investment for Papermaking Excellence

The Blind Hole Press Roll is a cornerstone of modern paper machine press sections. Its elegant design provides a powerful, passive dewatering solution that enhances sheet quality and reduces energy costs. However, its effectiveness is directly tied to the quality of its design, materials, and manufacturing precision. By partnering with an expert manufacturer who can provide a custom-engineered solution, mills can transform their press section from a simple necessity into a competitive advantage.

Investing in a high-quality, purpose-built roll is an investment in consistency, efficiency, and the future of your operations. For those looking to optimize their dewatering process, the best place to start is with a better roll.

Learn more about our advanced manufacturing capabilities and order your custom Blind Hole Press Roll today.
