Paper is everywhere, isn't it? From the pages of your favorite book to the packaging of your latest online order, it's an indispensable part of our daily lives. But have you ever stopped to consider what goes into making it? Frankly speaking, the journey from wood pulp to a finished sheet is a complex dance of engineering and precision, and at the very core of this intricate process are the remarkable components known as paper mill rolls. These aren't just any rollers; they are highly engineered, robust, and incredibly precise instruments that dictate the quality, consistency, and efficiency of paper production.
In my experience, many people outside the industry don't realize the sheer scale and sophistication involved. We're talking about massive machines, some stretching hundreds of meters long, operating at incredible speeds. And within these behemoths, the paper mill rolls are the workhorses, performing critical functions like dewatering, pressing, drying, and finishing. Without their flawless operation, the paper you hold in your hands simply wouldn't exist in its current form. This article will pull back the curtain, exploring the diverse types of these essential components, the science behind their construction, the art of their maintenance, and their profound impact on the final paper product.
The Unsung Heroes: Types of Paper Mill Rolls and Their Functions
To truly appreciate the complexity of paper manufacturing, it's crucial to understand the distinct roles played by various paper mill rolls. Each type is designed for a specific stage of the paper-making process, from forming the initial web to imparting the final finish. It's worth noting that while they all look like large cylinders, their internal structures, surface coatings, and operational demands vary significantly.Couch Rolls
The journey of the paper web begins on the forming section, where a dilute pulp slurry is laid onto a moving wire mesh. The couch roll is positioned at the very end of this section. Its primary function is to remove a significant amount of water from the nascent paper web through vacuum suction, effectively consolidating the fibers and giving the web enough strength to transfer to the press section. These rolls are often perforated and connected to powerful vacuum systems. The precision of the couch roll is paramount, as it's the first point where the continuous web starts to take shape.Press Rolls

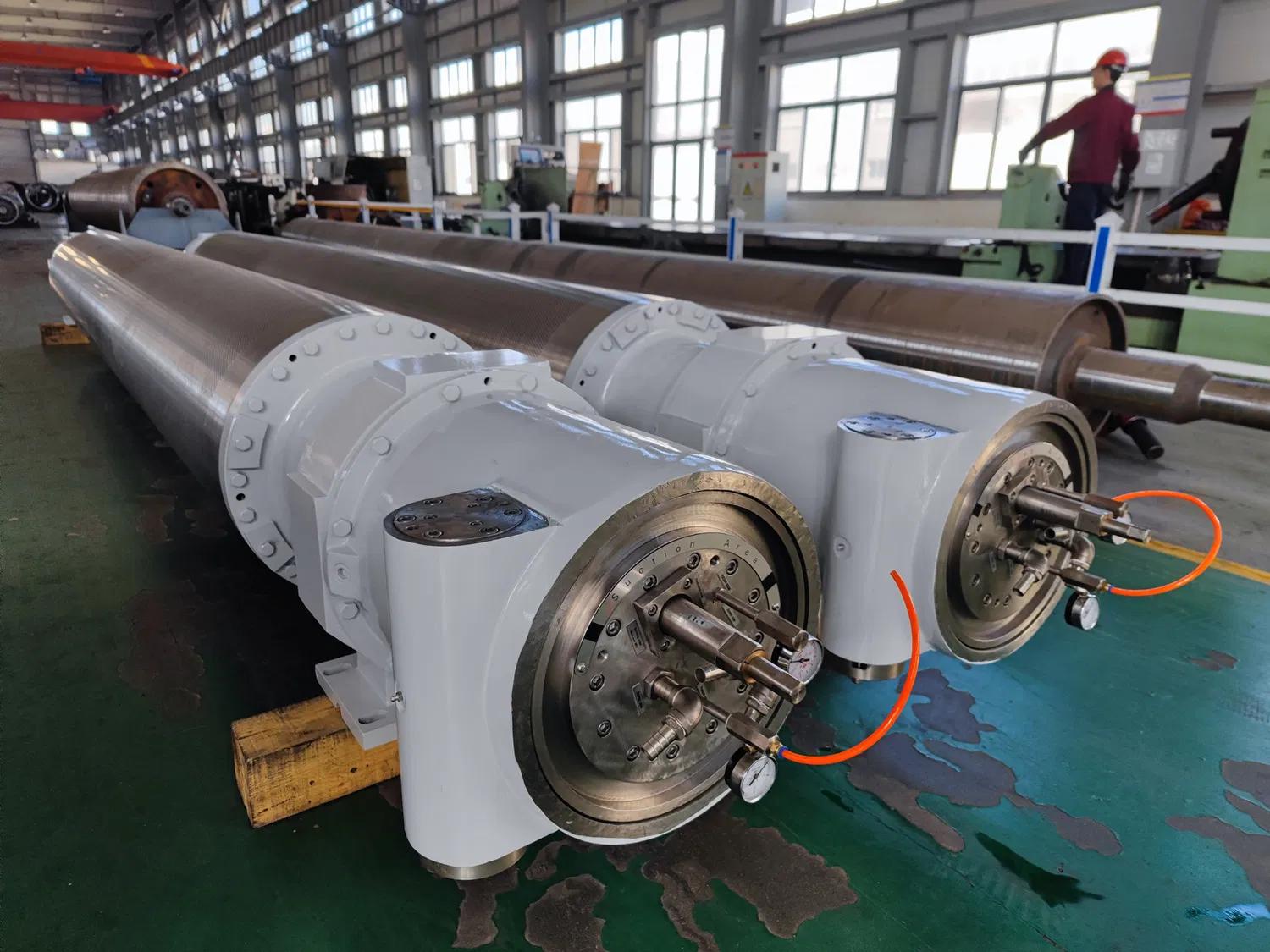

Once the web leaves the forming section, it enters the press section, where mechanical pressure is used to squeeze out more water. This is where press rolls come into play. Typically arranged in nips (pairs of rolls pressing against each other), they apply immense pressure, significantly increasing the dry content of the paper web. There are various types, including plain press rolls, grooved rolls, and blind-drilled rolls, each designed to optimize water removal and prevent rewetting. The materials and coatings for press rolls are chosen for their durability and ability to withstand high loads and abrasive conditions.Dryer Rolls
After the press section, the paper web still contains a considerable amount of moisture. The dryer section, often the longest part of a paper machine, uses heat to evaporate the remaining water. Dryer rolls are large, hollow cylinders, typically made of cast iron, heated internally by steam. The paper web wraps around these hot surfaces, progressively drying as it travels through a series of rolls. The surface temperature and uniformity of these paper machine rollers are critical for even drying and preventing sheet distortion. Interestingly enough, these rolls can operate at temperatures exceeding 100°C.Calender Rolls
The calender section is where the paper gets its final surface properties. Calender rolls, often made of hardened steel or composite materials, are arranged in stacks (calender stacks) and apply pressure and sometimes heat to the paper web. This process compacts the paper, reduces its thickness, and imparts smoothness, gloss, and uniform caliper. Different finishes, from matte to high-gloss, can be achieved by adjusting pressure, temperature, and the number of nips. The precision grinding of calender rolls is absolutely critical for achieving a consistent and high-quality finish.Spreader and Reel Rolls
Beyond the main processing stages, other specialized paper mill rolls play crucial roles. Spreader rolls, for instance, are designed to eliminate wrinkles and ensure the web is flat and taut before critical sections like the calender or coater. Finally, the reel roll is where the finished paper web is wound into large parent rolls, ready for further processing or converting. This final roll must wind the paper evenly and tightly, without creasing or telescoping, which requires exceptional control and balance.Engineering Excellence: Materials and Manufacturing of Paper Mill Rolls
The performance of paper mill rolls isn't just about their function; it's profoundly influenced by the materials they are made from and the precision with which they are manufactured. These aren't simple metal cylinders; they are complex pieces of engineering, often weighing many tons and requiring tolerances measured in microns.Material Selection

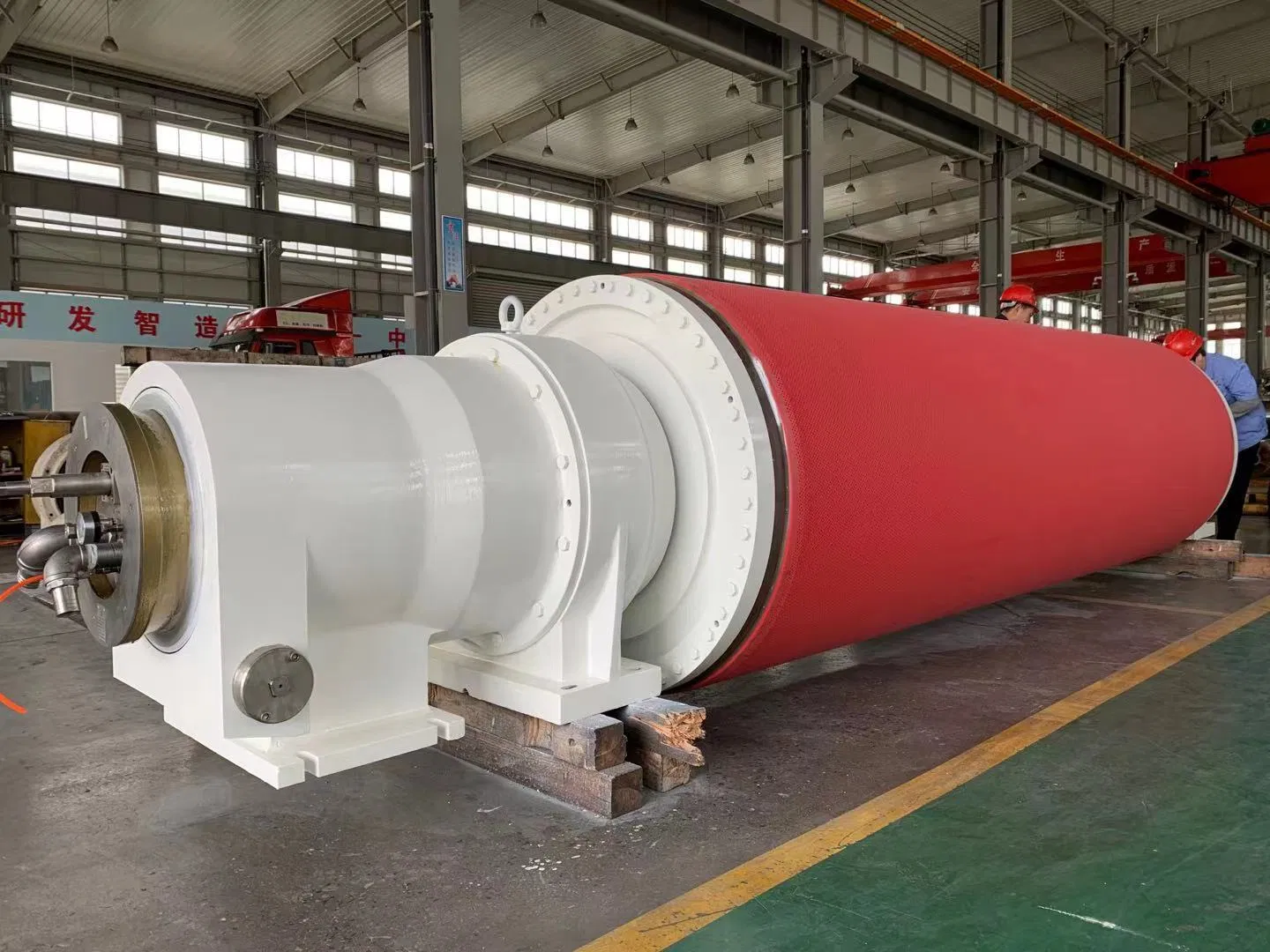

The choice of material for a paper mill roll depends heavily on its intended application. * Cast Iron: Traditionally used for dryer rolls due to its excellent heat conductivity and stability at high temperatures. It's also common for some press and calender rolls. * Steel: High-strength steel alloys are used for press rolls, calender rolls, and other rolls requiring superior mechanical properties and wear resistance. Stainless steel might be used in wet sections to combat corrosion. * Composite Materials: Increasingly, advanced composite materials (like carbon fiber reinforced polymers) are being used for certain applications, especially where lighter weight, higher stiffness, and better vibration damping are desired, such as in spreader rolls or some specialized press rolls. * Rubber and Polymer Coatings: Many rolls, particularly press rolls, are covered with specialized rubber or polymer coatings. These coatings provide specific properties like grip, elasticity, chemical resistance, and the ability to shed water. The hardness (durometer) and composition of these covers are carefully selected for each application.Manufacturing Precision
The manufacturing process for paper mill rolls is incredibly demanding. It typically involves: * Casting or Forging: The initial shaping of the roll body, often involving large foundries and specialized equipment. * Machining: Extensive machining operations are performed to achieve the precise dimensions and concentricity required. This includes turning, boring, and milling. * Grinding: This is perhaps the most critical step for many rolls. Precision grinding ensures the roll surface is perfectly cylindrical, smooth, and free of imperfections. The slightest deviation can lead to uneven paper quality or operational issues. * Balancing: High-speed paper machines demand rolls that are perfectly balanced, both statically and dynamically. Imbalance can lead to severe vibrations, roll damage, and poor paper quality. * Coating Application: For rolls requiring covers, the chosen rubber or polymer is applied in layers and then vulcanized (cured with heat and pressure) to the roll body. This is followed by further grinding to achieve the desired surface finish and diameter.
Preserving Performance: Maintenance and Longevity of Paper Mill Rolls
To be honest, even the most robust paper machine rollers are subject to wear and tear. Given their critical role and the harsh operating environment of a paper mill – high temperatures, moisture, pressure, and abrasive fibers – regular and meticulous maintenance is not just recommended; it's absolutely essential. Proper roll maintenance directly translates to consistent paper quality, reduced downtime, and extended equipment lifespan.Common Issues and Their Impact
In my experience, the most common issues affecting paper mill rolls include: * Wear: Abrasive wear from the paper web and chemicals can alter the roll's surface profile, leading to uneven pressure distribution and inconsistent paper properties. * Corrosion: Moisture and process chemicals can cause corrosion, particularly on metal surfaces, leading to pitting and surface degradation. * Fatigue Cracking: Repeated stress cycles, especially in press rolls, can lead to fatigue cracks, which if left unaddressed, can result in catastrophic failure. * Bearing Failure: The bearings supporting the rolls are under immense load. Failure can lead to vibrations, overheating, and ultimately, roll damage. * Cover Damage: Rubber or polymer covers can suffer from cuts, nicks, or hardening, affecting their performance and potentially marking the paper. * Imbalance: Even slight imbalance can cause severe vibrations at high operating speeds, leading to premature bearing wear, structural damage to the machine, and uneven paper profiles.Key Maintenance Practices
Effective roll maintenance in paper industry involves a multi-faceted approach: * Regular Inspection: Visual inspections, often supplemented by non-destructive testing (NDT) methods like ultrasonic testing or eddy current testing, are crucial for early detection of issues. * Grinding and Crowning: Over time, rolls can develop wear patterns or lose their precise cylindrical shape. Regular regrinding restores the ideal profile. Many rolls also require a specific "crown" – a slight taper from the center to the ends – to ensure uniform pressure across the width of the paper web. * Balancing: Periodic dynamic balancing ensures that rolls operate smoothly at high speeds, minimizing vibrations and extending bearing life. * Bearing Lubrication and Replacement: Proper lubrication schedules and timely replacement of worn bearings are fundamental to avoiding costly breakdowns. * Cover Repair and Replacement: Damaged rubber or polymer covers can often be repaired, but eventually, they will need to be completely replaced and reground to restore optimal performance. * Predictive Maintenance: Many mills now employ advanced sensors and data analytics to monitor roll performance in real-time, allowing for predictive maintenance interventions before a failure occurs. This proactive approach saves significant time and money.The Ripple Effect: How Paper Mill Rolls Influence Product Quality
It's fascinating how a seemingly simple component like a roll can have such a profound impact on the final product. The condition and operation of paper mill rolls directly influence a wide array of paper properties, from its visual appearance to its strength and printability. Many experts agree that achieving consistent, high-quality paper is impossible without perfectly maintained and precisely operating rolls.Surface Properties
The surface finish of the paper – its smoothness, gloss, and texture – is largely determined by the calender rolls. Any imperfections on the calender roll surface, such as scratches, nicks, or uneven wear, will be directly transferred to the paper, resulting in defects. Similarly, the uniform application of pressure by press rolls contributes to an even density and smoothness of the paper web, preventing variations that could lead to poor printability.Physical Strength and Uniformity
The dewatering and pressing stages, heavily reliant on couch and press rolls, are critical for developing the paper's physical strength. Efficient water removal allows the fibers to bond more effectively. If these rolls are not performing optimally, the paper might be weaker, less dense, or have inconsistent caliper (thickness) across its width. Uneven pressure from press rolls, for example, can lead to "soft spots" or "hard spots" in the paper, affecting its runnability on converting machines.Moisture Content and Drying
Dryer rolls are, of course, paramount for controlling the paper's final moisture content. Uneven heating or surface imperfections on dryer rolls can lead to localized over-drying or under-drying, causing issues like curling, brittleness, or poor dimensional stability. Maintaining a consistent moisture profile is vital for subsequent processing steps and the paper's end-use performance.
Dimensional Stability and Runnability
The precise alignment and balance of all paper production rolls contribute significantly to the dimensional stability of the paper web as it travels through the machine. Any misalignment or vibration can cause the web to wander, wrinkle, or even break, leading to costly downtime. A well-maintained set of rolls ensures the paper runs smoothly, minimizing breaks and maximizing production efficiency. In my experience, even a tiny imperfection on a roll can cause a ripple effect of problems down the line, affecting everything from sheet flatness to winding quality on the reel.Innovations and the Future of Paper Mill Rolls
The paper industry, while traditional in some aspects, is constantly evolving, and the technology behind paper mill rolls is no exception. We're seeing exciting advancements aimed at improving efficiency, extending lifespan, and enhancing paper quality even further. One significant area of innovation is in materials science. New composite materials are being developed that offer superior strength-to-weight ratios, better vibration damping, and enhanced corrosion resistance. These materials can lead to lighter rolls that consume less energy and are easier to handle during maintenance. Furthermore, advanced ceramic and polymer coatings are being engineered to provide extreme wear resistance and specific surface properties, tailored for different paper grades and machine speeds. Another key trend is the integration of smart technology. Rolls are increasingly being equipped with embedded sensors that monitor temperature, vibration, and even surface wear in real-time. This data feeds into sophisticated predictive maintenance systems, allowing mills to anticipate potential issues before they lead to costly breakdowns. Imagine a roll telling you it needs attention before it ever causes a problem – that's the future we're moving towards. This proactive approach to optimizing paper production rolls is revolutionizing how mills operate. Finally, advancements in manufacturing processes, particularly in precision grinding and balancing, continue to push the boundaries of what's possible. Tighter tolerances and more uniform surface finishes mean even higher quality paper can be produced at faster speeds. In conclusion, the humble paper mill rolls are anything but simple. They are the backbone of paper manufacturing, intricate pieces of engineering that demand precision in design, manufacturing, and maintenance. As the industry continues to innovate, these essential components will undoubtedly evolve, playing an even more critical role in delivering the high-quality, sustainable paper products we rely on every day.For more detailed information, please visit our official website:Paper mill rolls
About the author: Dr. Evelyn Reed is a seasoned industrial engineer with over two decades of experience specializing in manufacturing processes and machinery optimization, particularly within the pulp and paper sector. Her expertise lies in the design, material science, and predictive maintenance of large-scale industrial components, including paper mill rolls. Evelyn is passionate about sharing insights into the intricate world of paper production and its continuous technological advancements.
