In the intricate dance of modern paper production, every component plays a vital role, but few are as fundamentally critical as the paper machine suction roll. This workhorse is strategically positioned in the press section, tasked with a mission that sounds simple yet is incredibly complex: removing water from the paper web. This dewatering process is absolutely essential. Without efficient water removal at this stage, the paper web simply wouldn't have the structural integrity to proceed through the drying section, nor would it meet the necessary quality specifications for strength and stiffness. Frankly speaking, the performance of the suction roll directly impacts the speed of the paper machine, the energy consumption (especially in the subsequent drying phase), and the final quality of the paper produced. It's a core technology that has evolved significantly over the years, moving from simpler designs to highly engineered components capable of withstanding immense pressures and harsh operating environments.
The operational environment of a paper machine suction roll is nothing short of demanding. It involves high speeds, significant nip pressures where rolls press together, constant exposure to water and process chemicals, and often, fluctuating temperatures. The roll shell itself is typically a complex casting or fabrication, riddled with thousands of precisely drilled holes that connect to an internal vacuum box. As the paper web, supported by a felt, passes over the rotating suction roll, the vacuum draws water from the web and the felt through these holes and into the vacuum box, where it is then removed. The effectiveness of this process depends on numerous factors, including the vacuum level, the roll shell material, the open area provided by the drilling pattern, and crucially, the condition and type of the roll cover. This mechanical removal of water is far more energy-efficient than thermal drying, highlighting why the suction roll's performance is a key determinant of overall machine efficiency and operating costs.
Understanding Suction Roll Design and Materials

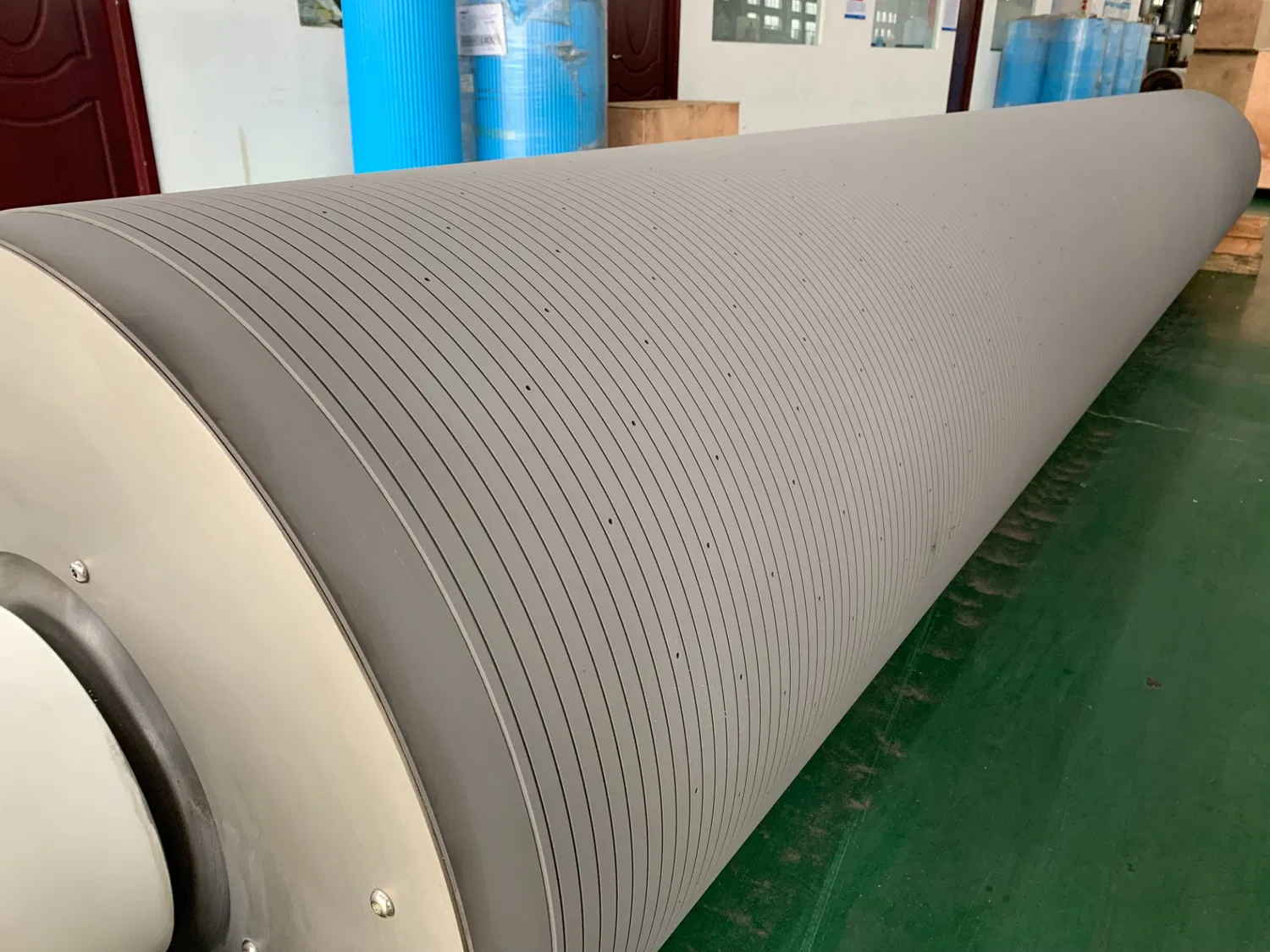

Delving deeper into the anatomy, a modern paper machine suction roll is a marvel of engineering. The core element is the perforated shell, which must possess high strength and fatigue resistance. Traditionally, materials like bronze and stainless steel alloys have been used. Stainless steel offers superior corrosion resistance, which is paramount given the chemical environment in paper mills, especially with the increasing use of recycled fibers and aggressive process additives. The drilling pattern on the shell is meticulously designed; the size, spacing, and angle of the holes are optimized to maximize open area for dewatering while maintaining the structural integrity of the shell under heavy loads and high speeds. Inside the roll is a stationary vacuum box, sealed against the inner surface of the rotating shell. The seals are critical components, preventing air leakage and maintaining the desired vacuum level. Wear on these seals or the shell's sealing surface can lead to vacuum loss and reduced dewatering efficiency, a common issue operators face.
Beyond the shell, the roll cover plays a profoundly important role. Roll covers are typically made from various rubber, polyurethane, or composite materials. The choice of cover material depends on the specific position in the press section, the type of paper being produced, nip pressures, operating temperatures, and desired properties like abrasion resistance, chemical resistance, and release properties (how easily the web separates from the roll). A worn, damaged, or improperly selected cover can negate the effectiveness of even the best-designed suction roll shell. Cracking, grooving, or uneven wear on the cover affects nip uniformity and dewatering. This is why selecting the right cover material and maintaining it properly is just as important as the condition of the shell itself. Many experts agree that investing in high-quality, application-specific roll covers yields significant returns in performance and lifespan.
Criticality of Paper Machine Suction Roll Maintenance
Maintaining the paper machine suction roll in optimal condition isn't merely good practice; it's absolutely essential for reliable and efficient operation. Preventative maintenance for these rolls is multifaceted, encompassing regular inspections, cleaning, bearing lubrication and replacement, and roll cover grinding or replacement. Given the complexity and size of these rolls, maintenance often requires specialized tools and expertise. Bearings, in particular, are subjected to heavy loads and must be meticulously maintained. Bearing failures can cause catastrophic damage to the roll and surrounding components. Regular vibration analysis can detect potential bearing issues early, allowing for planned intervention rather than emergency shutdowns. Cleaning the drilled holes in the shell is also vital. Pulp fibers, fillers, and process chemicals can accumulate in the holes, reducing the open area available for dewatering and impacting performance. Various cleaning methods, from high-pressure showers during operation to chemical cleaning during shutdowns, are employed to keep the holes clear. Have you ever wondered just how much efficiency is lost through clogged suction roll holes? It can be surprisingly significant.
Roll cover maintenance, as touched upon earlier, deserves particular attention. Covers wear down over time due to abrasion, heat, and chemical exposure. Uneven wear patterns can develop, leading to variations in nip pressure across the width of the paper web, resulting in uneven moisture profiles in the paper. This unevenness can cause issues in subsequent sections, impacting drying uniformity, sheet strength, and runnability. Periodic grinding of the roll cover is necessary to restore its profile and surface properties. However, covers have a limited lifespan and must eventually be replaced. The process of changing a large suction roll can be time-consuming and labor-intensive, requiring careful planning during scheduled outages. Proper alignment of the suction roll within the press section is also non-negotiable. Misalignment causes uneven loading, accelerated wear, and can lead to web breaks.
Optimizing Dewatering with Advanced Suction Roll Technology
The pursuit of faster speeds and improved paper quality has driven continuous innovation in paper machine dewatering technology, and the suction roll is at the forefront of these advancements. Modern suction rolls often incorporate features designed to enhance performance and reliability. This includes optimized vacuum control systems that can adjust vacuum levels dynamically based on machine speed and paper grade, ensuring consistent dewatering. Advanced drilling patterns, sometimes incorporating spiraling or varied hole sizes, are developed to improve water removal and reduce noise levels. The seal technology for the vacuum box has also seen improvements, utilizing materials and designs that offer better sealing efficiency and longer lifespan, reducing air leakage and maintaining vacuum integrity. Interestingly enough, even the internal baffling within the vacuum box is designed to manage water flow effectively, preventing rewetting of the paper web after it passes over the vacuum zone.
Material science plays a significant role in these advancements. Composite roll covers, for example, offer improved durability, chemical resistance, and dynamic properties compared to traditional rubber covers. These covers can be engineered with specific surface textures to optimize water removal and minimize picking (fibers sticking to the roll surface). Furthermore, monitoring technology is increasingly being integrated into suction roll systems. Sensors can track bearing temperature, vibration, and even vacuum levels and seal wear in real-time, providing operators with crucial data for predictive maintenance. This shift towards data-driven maintenance allows mills to anticipate potential failures and schedule interventions more effectively, minimizing downtime and maximizing production uptime. These technological leaps underscore why staying updated on suction roll technology advancements is crucial for competitive paper manufacturing.
Common Issues and Troubleshooting the Suction Roll
Despite their robust design, paper machine suction rolls can encounter a range of issues that impact performance. Reduced dewatering efficiency is perhaps the most common complaint, often stemming from clogged holes in the shell or cover, worn vacuum box seals, or insufficient vacuum levels. Troubleshooting this requires a systematic approach: checking vacuum pump performance, inspecting and cleaning the roll surface, examining seals for wear, and verifying the setup of shower systems designed to keep holes clean. Another frequent problem is uneven moisture profiles in the paper web, which can be caused by uneven wear on the roll cover, misalignment of the roll, or variations in vacuum across the width of the roll. Identifying the root cause often involves detailed inspections of the roll surface profile and careful measurement of web moisture variations downstream.
Vibration is another critical indicator of potential problems. Excessive vibration can signal issues with bearings, imbalance in the roll, or problems with the foundation or mounting. Ignoring vibration can lead to accelerated wear and potentially catastrophic failure. Regular vibration monitoring is essential for early detection. Surface damage to the roll cover, such as cracks, cuts, or blisters, can occur due to foreign objects entering the nip or improper handling. Such damage requires immediate attention, often necessitating grinding or even cover replacement, as damaged areas can mark the sheet or affect dewatering. Frankly speaking, addressing these common issues promptly is key to preventing minor problems from escalating into costly production disruptions.
Impact on Paper Quality and Machine Efficiency
The performance of the paper machine suction roll is inextricably linked to both the quality of the finished paper and the overall efficiency of the paper machine. Efficient dewatering in the press section directly reduces the moisture content of the web entering the dryer section. Since thermal drying is the most energy-intensive part of the paper machine, even a small percentage point reduction in moisture content entering the dryers can translate into significant energy savings and increased machine speed. Higher press dryness allows for faster machine speeds without overwhelming the dryer capacity. Beyond efficiency, effective and uniform dewatering is vital for paper quality. Uneven moisture profiles can lead to variations in caliper, basis weight, and strength across the sheet width. It can also cause issues like curling, wrinkling, and poor printability. A properly functioning suction roll ensures consistent dewatering, contributing to a more uniform and high-quality paper product. It's worth noting that optimizing dewatering isn't just about speed; it's fundamentally about producing quality paper reliably.
Furthermore, issues with the suction roll, such as vibration, wear, or surface damage, can lead to reduced machine runnability. Poor roll condition can cause sheet breaks, requiring costly downtime and lost production. Reliable suction roll performance is therefore paramount for maintaining high machine uptime. The lifespan of press felts is also influenced by the suction roll. Proper dewatering helps keep felts cleaner and extends their useful life. In my experience, investing in the reliability and optimal performance of the paper machine suction roll yields dividends across the entire production process, impacting everything from raw material usage to energy consumption and final product quality. It truly is a cornerstone component that demands expert attention.
Choosing the Right Provider for Suction Roll Service and Solutions
Given the critical role and complexity of the paper machine suction roll, selecting a knowledgeable and experienced provider for service, maintenance, and potentially, new rolls or upgrades is a crucial decision for any mill. A competent provider should offer expertise not just in mechanical aspects, but also in materials science, fluid dynamics (related to dewatering), and understanding specific paper grades and machine configurations. They should be able to assess the current condition of your suction rolls, recommend appropriate maintenance schedules, and provide solutions for common problems like hole clogging, seal wear, or cover deterioration. Look for a provider with a strong track record, experienced technicians, and the capability to perform necessary services like roll grinding, balancing, and bearing replacement, either on-site or at their facilities. The right partner can help you implement effective suction roll maintenance strategies, ensuring peak performance and longevity. This isn't an area where corners should be cut.
Choosing the right solutions for your paper machine suction roll issues involves understanding the specific challenges your mill faces. Are you struggling with low dryness? Is excessive cover wear a constant problem? Are you experiencing frequent sheet breaks attributed to the press section? An expert provider can help diagnose the root causes and recommend tailored solutions, whether it's a different roll cover material, an optimized drilling pattern during a rebuild, or improved maintenance practices. Our company specializes in understanding the unique demands placed on paper machine components, including suction rolls. We offer a range of services and products designed to address these challenges, from high-performance roll covers engineered for specific applications to expert maintenance and assessment services aimed at maximizing the efficiency and lifespan of your critical rolls. Partnering with us means gaining access to the expertise needed to keep your paper machine running smoothly and efficiently, tackling common hurdles like optimizing paper machine dewatering head-on.
In conclusion, the paper machine suction roll is an indispensable element of the paper production process, directly influencing efficiency, energy consumption, and paper quality. Understanding its design, the importance of diligent maintenance, and the potential for performance optimization through advanced technology are key takeaways for anyone involved in paper manufacturing. Regular inspections, proactive maintenance, and timely intervention for issues like wear and clogging are not just preventative measures; they are investments in your machine's profitability and longevity. If you're facing challenges with your suction roll performance or seeking ways to enhance your press section dewatering, assessing your current situation and consulting with experts should be your clear next steps. Ensuring your suction rolls are operating at their best is fundamental to achieving peak machine performance and producing high-quality paper consistently.
