Properly installing and aligning paper machine rolls isn't just a maintenance task; it's fundamental to the entire papermaking process. Frankly speaking, the precision with which these massive, rotating components are set directly impacts sheet quality, machine runnability, energy consumption, and the lifespan of critical components like bearings, felts, and the rolls themselves. Misalignment, even by fractions of a millimeter, can lead to a cascade of problems: uneven moisture profiles, sheet wrinkles, tracking issues causing edge damage or web breaks, excessive and uneven wear on fabrics and roll covers, and premature bearing failure due to uneven loading. Similarly, improper installation procedures can damage sensitive roll surfaces or bearings before the machine even starts. Have you ever considered the cumulative cost of frequent web breaks or prematurely worn felts? Often, the root cause traces back to inadequate attention paid during roll installation and alignment. Therefore, mastering these procedures is essential for any efficient and profitable paper mill operation, moving beyond simple replacement to a strategic maintenance practice focused on precision and long-term reliability. Understanding the nuances involved transforms this from a routine job into a critical process control point.

Pre-Installation: Setting the Stage for Success

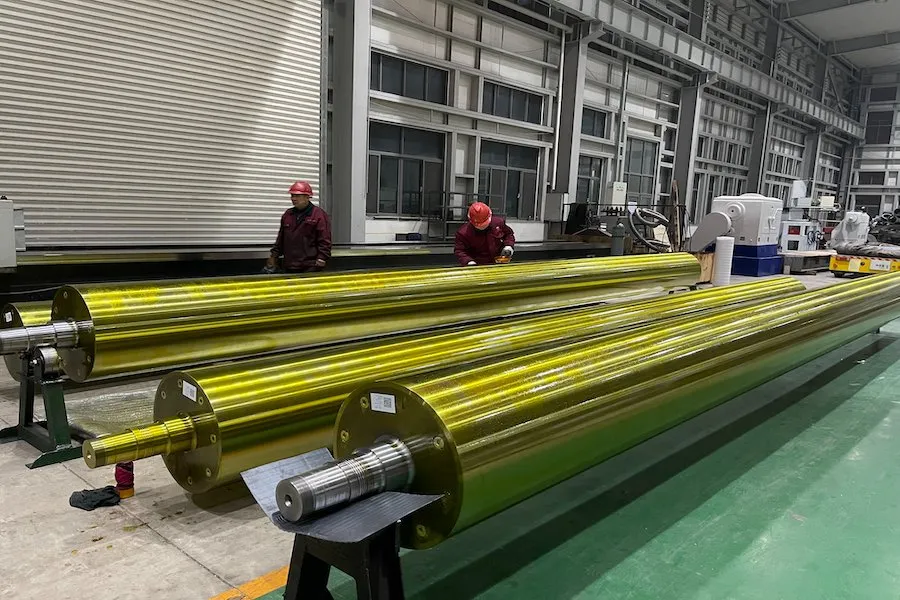

　　Before a single bolt is turned or a crane hook attached, thorough preparation is paramount for a successful roll installation. Rushing this stage is, in my experience, a frequent source of later problems. The process begins the moment the new or refurbished roll arrives. It needs a careful visual inspection for any transit damage, particularly to sensitive journals, bearing seats, and the roll surface itself. Verify that the roll specifications exactly match the requirements for its intended position – diameter, face length, crown profile, bearing types, and connection points must all be correct. The installation area must be meticulously cleaned; dirt and debris on mounting pads or within bearing housings are enemies of precision. Existing bearing housings should be inspected for wear, cracks, or damage, and bearings themselves checked for smoothness and proper lubrication. It’s worth noting that assembling bearings onto roll journals requires specific techniques and often specialized tools to avoid damage. Furthermore, ensure all necessary tools, calibrated measuring instruments, and appropriate lifting gear (slings, spreader bars, cranes) are readily available, inspected, and certified safe for the load. Safety cannot be overstated; planning the lift, establishing clear communication signals, and ensuring personnel are clear of potential hazards are non-negotiable steps. This preparation phase minimizes surprises and ensures the actual installation can proceed smoothly and accurately.

The Roll Installation Procedure: Careful Handling and Placement

　　With preparations complete, the physical installation of the paper machine roll can commence. This phase demands precision, controlled movements, and constant vigilance. Using the pre-selected and inspected lifting gear, the roll must be carefully hoisted. The choice of lifting points and sling configuration is critical to avoid damaging the roll surface or cover and to ensure a balanced, stable lift. Slow, deliberate movements are essential as the roll is maneuvered into position over its mounting points. Guiding the roll requires teamwork and clear communication, ensuring it doesn't bump against adjacent equipment or the machine frame. As the roll is lowered, extreme care must be taken to align the bearing housings with their mounting pads or rails. For rolls requiring specific orientation (like some grooved or drilled rolls), this must be confirmed before final seating. Once the roll is seated, bearing housings can be loosely secured. Applying the correct lubricant to bearings (if not pre-lubricated) and ensuring proper sealing is critical at this stage. Torque specifications for mounting bolts are crucial; uneven or incorrect torque can distort bearing housings, leading to immediate alignment issues and potential bearing damage. Different roll types, such as heavy press rolls versus lighter felt rolls or high-temperature dryer cylinders, may require variations in technique or specialized handling fixtures, but the core principles of careful handling, precise placement, and correct securing remain universal. An initial rough check for level and position might be performed at this point, but the detailed alignment process follows.

Understanding the 'Why': Fundamentals of Roll Alignment

　　Simply installing a roll isn't enough; achieving precise alignment is where the real operational benefits lie. But what exactly do we mean by alignment in this context? Primarily, it involves two key geometric conditions: parallelism and levelness. Parallelism refers to ensuring that adjacent rolls, or rolls within a functional section (like a press nip or calendar stack), have their axes perfectly parallel to each other in both the horizontal and vertical planes. It also often involves ensuring rolls are parallel or perpendicular to a machine centerline reference. Levelness, quite simply, means ensuring the roll's axis is perfectly horizontal across its entire face length. Why is this so critical? Consider a press nip: if the rolls aren't parallel, the pressure (nip load) applied to the sheet will be uneven across its width. This directly impacts water removal efficiency and can cause variations in sheet density and caliper. If rolls guiding a felt or wire aren't parallel, the fabric will constantly try to track to one side, leading to excessive wear on the fabric edges and the guide system, and potentially causing sheet control issues or wrinkles. Unlevel rolls can similarly cause uneven nip pressure or poor sheet/fabric tracking. Frankly speaking, neglecting proper alignment is like building a high-performance car and then fitting misaligned wheels – performance suffers dramatically, and components wear out prematurely. Understanding these fundamental reasons underscores the importance of the meticulous alignment procedures that follow.

Tools of the Trade: Achieving Precision Alignment

　　Achieving the required tolerances for paper machine roll alignment necessitates the use of specialized and highly accurate measuring tools. Gone are the days of relying solely on piano wire and feeler gauges, although these can still have their place for certain checks. Modern mills typically employ more sophisticated methods. Optical tooling, including precision sight levels, theodolites, and optical squares, has been a mainstay for decades. These instruments use lines of sight to establish references and measure deviations in roll position and orientation relative to benchmarks or other rolls. They offer high accuracy but often require skilled operators and can be time-consuming. Increasingly common are laser alignment systems. These range from laser trackers, which can measure points in 3D space with exceptional accuracy over large distances, to dedicated roll alignment systems using rotating lasers or coupled sensor units mounted on the rolls. Laser shaft alignment tools, typically used for couplings, can also be adapted for certain roll-to-roll alignment tasks, particularly for parallel coupled rolls. These laser systems often offer faster measurements, digital readouts, data logging, and software that calculates required adjustments, significantly speeding up the process and reducing potential human error. High-quality precision levels (digital or spirit) are still essential for verifying levelness across the roll face. Feeler gauges might be used for checking nip uniformity directly, though this is more of a verification step after alignment. It's worth noting that the choice of tool often depends on the specific application, the required accuracy, the machine size, and available budget, but investing in appropriate, calibrated tooling is crucial for effective alignment.

Achieving Parallelism: Squaring Up the Machine

　　Ensuring rolls are parallel is arguably one of the most critical aspects of alignment. This typically involves aligning rolls parallel to each other and often perpendicular or parallel to an established machine centerline or baseline. Using optical or laser alignment tools, measurements are taken, usually near the ends of the rolls (close to the bearings). For parallelism between two rolls, the distance between the roll axes is measured at both the front and drive sides. Any difference indicates a lack of parallelism in the horizontal plane. Similarly, measurements are taken to compare the vertical elevation of the roll axes at both ends to check for parallelism in the vertical plane (sometimes referred to as skew). The alignment system software or manual calculations determine the necessary adjustments. Adjustments are typically made by adding or removing shims under the bearing housings or, in some designs, by moving the housings horizontally using jacking bolts or similar mechanisms. For instance, if Roll B needs to be made parallel to Roll A, and measurements show the front side gap is 2mm smaller than the drive side gap, adjustments would be made to move the front bearing of Roll B slightly away from Roll A, or the drive side bearing slightly closer, until the measurements match within tolerance. This process requires patience and iterative adjustments – make a move, re-measure, repeat until the desired parallelism is achieved. Have you ever wondered how much time is lost chasing alignment issues without a systematic, measurement-driven approach? Precision measurement is the key to efficiency here.

Ensuring Levelness: Keeping Things Horizontal

　　While parallelism addresses the relationship between rolls, ensuring each individual roll is perfectly level across its operating face is equally important, particularly for rolls involved in pressing, coating, or calendering operations where uniform pressure is paramount. An unlevel roll creates uneven nip loading even if it's perfectly parallel to its mating roll. Imagine a press roll slightly lower on the front side than the drive side; the nip pressure will inevitably be higher on the drive side, leading to potential sheet crushing or uneven dewatering, resulting in moisture profile issues. This is checked using a precision level placed directly on the roll body (if accessible and appropriate) or, more commonly, on the roll journals or bearing housings if they are known to be machined accurately relative to the roll axis. Laser alignment systems can also directly measure levelness by projecting a laser plane or using inclinometers built into the sensor units. Measurements are typically taken at both the front and drive sides. If a roll is found to be out of level, adjustments are made, usually by adding or removing shims under one of the bearing housings, to raise or lower one end relative to the other until the level reading is within the specified tolerance. It's interesting to note that sometimes achieving perfect levelness might conflict slightly with achieving perfect parallelism, especially on older or distorted machine frames. In such cases, experienced technicians must prioritize based on the roll's function, often favoring nip uniformity for critical positions.

Verification and Tolerances: Documenting the Results

　　Making adjustments is only part of the process; verifying that the alignment is correct and within acceptable tolerances is crucial. After adjustments are made for both parallelism and levelness, a final set of measurements must be taken using the same precision instruments. These final readings confirm that the desired geometry has been achieved. What constitutes an "acceptable tolerance"? This varies significantly depending on the roll's position, function, the machine's speed, and the specific process requirements. For example, tolerances for critical press rolls or calendar rolls are typically much tighter (often within a few thousandths of an inch or tenths of a millimeter) than for simple felt return rolls. Manufacturers' specifications or established mill standards should always be consulted for target values. It is vital to meticulously document the alignment readings – both the initial "as found" condition and the final "as left" condition after adjustments. This documentation serves several purposes: it provides proof of proper installation, establishes a baseline for future checks, helps in troubleshooting if problems arise later, and can highlight potential issues with the machine frame or foundations if alignment proves difficult to maintain over time. Think about this: how can you track improvements or diagnose recurring problems without reliable historical alignment data? Proper documentation turns alignment from a one-off task into part of a proactive maintenance strategy.

Beyond Static: Dynamic Alignment and Operational Checks

　　While precise geometric alignment in a static condition is the foundation, it's important to recognize that rolls operate under dynamic conditions – load, speed, and temperature. Ideally, the static alignment anticipates the slight changes that may occur dynamically. For instance, thermal expansion, especially in dryer sections or heated rolls like calendar rolls, can slightly alter roll positions and profiles. While complex thermal alignment calculations exist, achieving good static alignment is usually the primary goal, anticipating that minor shifts will occur. Once the machine is back in operation, observational checks become important confirmation steps. Monitoring bearing temperatures using infrared thermometers or embedded sensors can indicate excessive load or misalignment. Increased vibration levels, detected through routine monitoring or specialized analysis, can also point towards alignment issues or imbalance. Observing sheet tracking and the behavior of felts or wires provides immediate visual feedback; stable tracking without excessive guide roll intervention suggests good alignment. Any unusual noises, recurring sheet quality defects (like wrinkles or profile issues), or rapid wear on consumables should trigger a review of the alignment status. In my experience, even with the best static alignment, unforeseen dynamic factors can sometimes come into play, requiring further investigation and potential fine-tuning based on operational performance. The job isn't truly finished until the machine is running smoothly and producing quality paper.

Navigating Challenges: Common Problems and Troubleshooting

　　Even with careful planning and execution, installing and aligning paper machine rolls can present challenges. Encountering seized bolts or damaged threads on mounting fixtures is common, requiring careful extraction and repair to avoid damaging expensive components. Mounting surfaces on the machine frame might be worn, corroded, or distorted, making it difficult to achieve stable and precise positioning without refurbishment or specialized shimming techniques. Sometimes, despite careful adjustments, achieving the target alignment tolerance proves elusive, which might indicate underlying issues like a bent roll, faulty bearings, or even distortion in the machine frame itself – problems that require more extensive investigation. Achieving precise nip uniformity can also be tricky, sometimes requiring crown adjustments or specific loading procedures in addition to geometric alignment. Having access to the right tools is critical; attempting precision alignment without calibrated optical or laser instruments is often an exercise in frustration. This is where specialized expertise and equipment become invaluable. For instance, achieving consistently accurate results quickly often benefits from advanced measurement systems. Our company provides cutting-edge laser alignment tools and services specifically designed for the demanding paper mill environment, helping maintenance teams overcome these challenges efficiently and accurately, ensuring that difficult alignments don't compromise machine performance or lead to costly downtime. Addressing these common problems proactively is key to a successful roll change project.

Conclusion: Precision as the Cornerstone of Papermaking Efficiency

　　In conclusion, the proper installation and meticulous alignment of paper machine rolls are far more than just routine maintenance; they are cornerstone activities that profoundly influence the efficiency, quality, and profitability of papermaking operations. From the initial pre-installation checks and careful handling during placement to the precision measurements and adjustments required for achieving parallelism and levelness, every step demands attention to detail and adherence to best practices. Understanding the fundamental reasons *why* alignment is so critical – preventing sheet defects, reducing wear on expensive consumables like fabrics and roll covers, extending bearing life, and optimizing energy consumption – reinforces the value of investing the necessary time and resources. Utilizing appropriate, calibrated measurement tools, whether optical or laser-based, is non-negotiable for achieving the required tolerances. Documenting the process provides valuable data for future maintenance and troubleshooting. Ultimately, mastering the art and science of roll installation and alignment transforms a potentially problematic task into a strategic advantage, ensuring the paper machine runs smoother, faster, and produces a higher quality product consistently. For operations seeking to enhance their capabilities in this critical area, exploring advanced alignment technologies and expert support services, such as those offered by our company, can provide a significant return on investment through improved reliability and performance.
