The heart of any paper mill beats within its massive, complex machinery, and perhaps no components are more critical to the entire process than the rolls. These cylindrical giants, often spanning the width of the paper machine, perform essential functions at every stage – from forming the sheet in the wet end to drying, pressing, calendering, and winding the final product. The quality, precision, and reliability of these rolls directly impact paper quality, machine speed, operational efficiency, and overall profitability. Frankly speaking, subpar rolls lead to defects, downtime, and increased waste, making the expertise behind their creation absolutely vital. Understanding the intricacies involved in Roll Manufacturing for Paper Mills is therefore not just a technical curiosity; it's fundamental to appreciating the challenges and triumphs of modern papermaking. Have you ever paused to consider the immense stress and precision demands placed on these components day in and day out?
The Unseen Challenges: Demands on Paper Mill Rolls
Operating within a paper machine is far from a gentle task. Rolls are subjected to a brutal combination of forces and environmental factors that demand exceptional engineering and material science. In the wet end, rolls face constant exposure to water, chemicals, and varying pH levels, creating a highly corrosive environment. Further along, press rolls endure immense nip pressures, squeezing water from the paper web, while dryer rolls must withstand high temperatures and steam pressure internally. Calender rolls require incredibly smooth surfaces and precise temperature control to impart the desired finish to the paper. Throughout the machine, rolls spin at high speeds, demanding perfect balance to prevent vibration and ensure sheet stability. They must resist abrasion from fillers, fibers, and doctor blades, maintain dimensional stability under load and temperature fluctuations, and possess specific surface properties (like release or grip) depending on their position. It's a complex interplay of mechanical, thermal, and chemical stresses that necessitates sophisticated design and manufacturing approaches. Failure in any one area can cascade into significant production issues, highlighting the need for robust, purpose-built solutions.
Navigating Harsh Operating Environments
The sheer variety of challenging conditions within a single paper machine is quite remarkable. Consider the suction rolls in the forming section – they need internal vacuum integrity while the shell endures constant water saturation and mechanical stress. Press rolls, whether plain, grooved, or blind-drilled, operate under immense pressures, often exceeding hundreds of pounds per linear inch (PLI), requiring materials that resist deformation and fatigue. Dryer cylinders, essentially pressure vessels, must safely contain high-pressure steam while efficiently transferring heat to the paper sheet, demanding specific alloys and stringent manufacturing codes. Then there are the rolls interacting with doctor blades, requiring surfaces hard enough to resist wear but compatible with the blade material to prevent scoring or damage. Corrosion resistance is paramount, especially with mills using recycled fiber or closed water loops, which can concentrate corrosive elements. It's worth noting that the chemical environment can change based on the paper grade being produced, adding another layer of complexity to material selection and roll cover specification. Manufacturers must anticipate this wide range of potential threats during the design phase.
The Quest for Precision in Papermaking
Beyond simply surviving the harsh environment, paper mill rolls must perform with extraordinary precision. The final quality of the paper sheet – its uniformity, smoothness, thickness profile, and surface characteristics – is inextricably linked to the geometric accuracy and surface finish of the rolls it contacts. Even minute imperfections can translate into visible defects. Total Indicated Runout (TIR), a measure of how much a roll deviates from perfect roundness as it rotates, must be kept to incredibly tight tolerances, often mere thousandths of an inch, especially for high-speed machines or critical positions like calender rolls. Equally important is the profile – the diameter variation along the length of the roll face. Rolls are often ground with specific crowns (a slight increase in diameter at the center) to compensate for deflection under load, ensuring uniform pressure across the sheet width. Achieving the correct crown shape and tolerance requires sophisticated grinding equipment and metrology. Surface finish is another critical parameter, impacting sheet release, friction, and heat transfer. Different positions require different finishes, from highly polished calender rolls to specific textures on press or coating rolls, all achieved through controlled grinding and finishing processes. This relentless pursuit of precision is a hallmark of quality roll manufacturing.

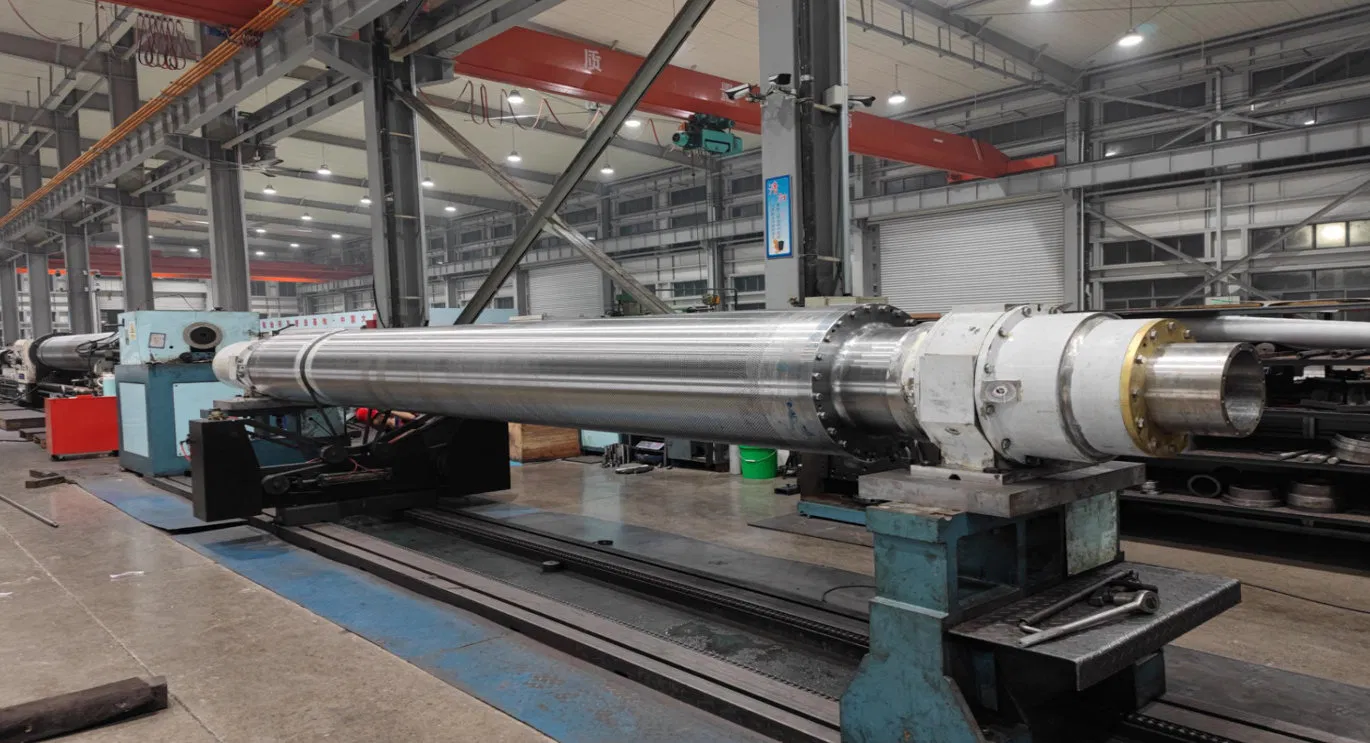

Core Elements of Superior Roll Manufacturing
Achieving the demanding specifications for paper mill rolls involves a multi-stage manufacturing process where precision and quality control are paramount at every step. It begins with meticulous material selection. Depending on the application, roll bodies might be forged steel for high strength, cast iron for stability and vibration damping, or even advanced composite materials for specific properties like low inertia or corrosion resistance. Shell materials for suction rolls require specific stainless steels or bronze alloys. The choice directly impacts the roll's durability, performance, and lifespan. Following material sourcing, precise machining shapes the roll body, journals, and bearing seats. Computer Numerical Control (CNC) lathes and milling machines ensure high accuracy. However, the most critical step for dimensional accuracy and surface finish is often the grinding process. Large cylindrical grinders, operating in temperature-controlled environments, use specialized abrasive wheels to achieve the final diameter, profile (crown), and surface finish tolerances, often measured in microns. It's a process requiring significant expertise and highly calibrated equipment. Finally, especially for high-speed applications, dynamic balancing is crucial. Even small imbalances can cause significant vibration at operational speeds, leading to bearing damage, poor paper quality, and safety hazards. Balancing machines detect and correct these imbalances by adding or removing weight at specific locations, ensuring smooth, stable rotation.
Material Selection: The Bedrock of Performance
Choosing the right materials is arguably the most fundamental decision in roll manufacturing. It's not just about strength; it's about a combination of properties tailored to the specific roll's function and position. For instance, a massive dryer cylinder needs excellent thermal conductivity and must meet pressure vessel codes, often dictating the use of specific cast iron grades. A highly loaded press roll might require forged steel with high yield strength and fatigue resistance. Journals, the shafts supporting the roll, need excellent wear resistance and machinability for bearing fits. In corrosive environments, various grades of stainless steel or even specialized alloys might be necessary for roll shells or bodies. Composite materials, like carbon fiber, are increasingly used for guide rolls or spreader rolls where low weight and high stiffness are advantageous, reducing inertia and improving sheet handling. The selection process involves considering factors like:
- Mechanical strength and fatigue life
- Corrosion and abrasion resistance
- Thermal conductivity and stability
- Machinability and weldability (if applicable)
- Cost-effectiveness
The Art and Science of Precision Grinding
Grinding is where the roll achieves its final, critical dimensions and surface characteristics. This process goes far beyond simply making the roll round; it imparts the precise geometry needed for optimal paper production. Modern cylindrical grinders are marvels of engineering, capable of handling rolls weighing many tons while achieving tolerances measured in microns (millionths of a meter). Achieving the specified crown – whether a simple parabolic curve or a more complex profile designed to compensate for both load deflection and thermal expansion – requires sophisticated CNC control and precise measurement systems integrated into the grinder. Surface finish is controlled by the type of grinding wheel used, the grinding parameters (speeds, feeds, depth of cut), and subsequent finishing steps like polishing or honing. Different applications demand vastly different finishes: a supercalender roll needs a mirror-like finish (low Ra value) for paper gloss, while a press roll might require a specific matte finish for water removal and sheet release. Achieving these finishes consistently across the entire roll face, which can be over 10 meters long, demands exceptional skill and equipment stability. Temperature control during grinding is also vital, as thermal expansion can affect dimensional accuracy. It's a meticulous process where tiny errors can have significant consequences.
Advanced Roll Covers: Tailoring the Surface Interface
While the roll body provides structural integrity, the roll cover is often the unsung hero, directly interacting with the paper sheet or mating roll. Covers provide specific surface properties that the base roll material cannot, such as resilience, release, friction, wear resistance, or chemical resistance. The choice of cover material and its properties is critical for performance in press sections, size presses, coaters, and calenders. Common materials include various formulations of rubber (natural, synthetic like NBR, EPDM), polyurethane, and increasingly, advanced composites and ceramics. Rubber covers offer resilience, ideal for press nips where they conform slightly to distribute pressure evenly and aid water removal. Polyurethanes often provide superior abrasion and chemical resistance compared to rubber, making them suitable for demanding positions like size presses or some press roll applications. Composite covers, incorporating reinforcing elements, can offer enhanced durability and stability under high loads and temperatures. Ceramic coatings, applied via thermal spray processes, provide exceptional hardness and wear resistance, often used in positions facing high abrasion or requiring specific surface energy characteristics for coating applications. Applying these covers is a specialized process involving surface preparation, bonding, curing (often in large autoclaves), and final grinding to precise dimensions and finish. The technology behind roll covers is constantly evolving, seeking longer life, better performance, and improved paper quality.
Extending Lifespan: Paper Machine Roll Refurbishment
Manufacturing new rolls is only part of the equation. Given the significant investment these components represent, effective maintenance and refurbishment are crucial for cost management and operational continuity. Rolls inevitably wear or suffer damage over time. Journals can become worn, bearing seats may lose their fit, roll surfaces can be scored or develop imperfections, and covers degrade. Instead of complete replacement, paper machine roll refurbishment offers a cost-effective and sustainable alternative. This process typically involves a thorough inspection, including non-destructive testing (NDT) like ultrasonic testing to check for internal flaws or cracks. Dimensional checks verify journal diameters, bearing fits, and overall geometry. Depending on the findings, refurbishment can include:
- Journal Repair: Welding and re-machining worn journals or applying specialized coatings (like thermal spray) to restore dimensions and hardness.
- Bearing Seat Restoration: Precision machining or sleeving to ensure proper bearing fit.
- Body Repair: Addressing minor surface damage or, in some cases, more significant structural repairs (subject to feasibility and safety).
- Recovering: Stripping the old cover, preparing the surface, and applying a new cover material.
- Regrinding: Restoring the precise diameter, profile, and surface finish of the roll body or cover.
- Rebalancing: Dynamically balancing the roll after any repair or recovering work.
The Power of Customization in Roll Solutions
While standard roll designs exist, the reality is that every paper machine and every paper grade has unique requirements. Off-the-shelf solutions rarely deliver optimal performance across the board. This is where the value of custom roll solutions for papermaking becomes evident. True partnership between the roll manufacturer and the paper mill allows for the design and production of rolls specifically tailored to address particular challenges or achieve specific production goals. Customization can involve modifying standard designs or developing entirely new concepts. Examples include optimizing internal suction box designs in suction rolls for better dewatering, developing specific groove patterns on press rolls for enhanced water handling with certain furnishes, selecting unique cover formulations to combat chemical attack from new additives, or designing calender rolls with specialized heating systems for precise temperature control. It might also involve material upgrades for longer life in high-wear positions or modifying journal designs for easier maintenance access. The process requires a deep understanding of both roll engineering and the papermaking process itself. By working closely with mill engineers and operators, we can analyze performance data, identify bottlenecks, and propose custom solutions that deliver tangible improvements in efficiency, quality, or roll lifespan. Have you considered how tailored roll designs could improve your specific production challenges?
Ensuring Excellence: Quality Control and Innovation
Given the critical nature of paper mill rolls, rigorous quality control throughout the manufacturing and refurbishment process is non-negotiable. It's not just about final inspection; it's about building quality in at every stage. This starts with certifying incoming materials, verifying their composition and properties. Dimensional accuracy is checked repeatedly using calibrated instruments, from initial machining to final grinding. Non-destructive testing methods, such as ultrasonic testing for internal integrity and magnetic particle or dye penetrant testing for surface cracks, are essential, especially for highly stressed components or after repairs. Surface finish measurements confirm compliance with specifications. Hardness testing verifies material properties and the effectiveness of heat treatments or coating applications. Dynamic balancing reports provide documented proof of stability at operational speeds. Comprehensive documentation, including material certificates, inspection reports, and balancing data, provides traceability and assurance. Beyond QC, innovation continuously drives the industry forward. Manufacturers are constantly exploring new materials, advanced coating technologies (like nanotechnology-enhanced surfaces), improved internal designs for heating/cooling or vacuum systems, and the integration of sensors for "smart rolls" that provide real-time performance data. Investing in high-performance paper mill rolls often means embracing these innovations for a competitive edge.
Choosing Your Roll Manufacturing Partner
Selecting the right partner for roll manufacturing and service is a critical decision for any paper mill. It's about more than just finding the lowest price; it's about finding a supplier with the technical expertise, manufacturing capability, quality commitment, and service support to ensure long-term reliability and performance. Key factors to consider include the manufacturer's experience specifically with paper mill rolls, their understanding of the papermaking process, and their engineering depth. Do they have the necessary equipment for precise machining, grinding, balancing, and covering? What quality management systems are in place (e.g., ISO certification)? Equally important is their service orientation. Do they offer comprehensive inspection and refurbishment services? Can they provide timely technical support and troubleshooting assistance? Do they collaborate on developing custom solutions? Our company prides itself on being more than just a manufacturer; we aim to be a solutions partner. We invest heavily in technology and expertise to provide state-of-the-art roll manufacturing, covering, and refurbishment services. Our focus is on delivering rolls that enhance our customers' operational efficiency and paper quality, providing tailored solutions backed by robust quality assurance and responsive service. We believe this partnership approach is essential for navigating the complexities of modern papermaking.
Conclusion: Investing Wisely in Your Mill's Foundation
In conclusion, the seemingly simple cylinder belies a complex world of engineering, material science, and precision craftsmanship that underpins the entire papermaking process. From withstanding extreme conditions to delivering micron-level accuracy, paper mill rolls are fundamental to productivity and quality. Effective Roll Manufacturing for Paper Mills requires a deep understanding of these demands, meticulous process control, continuous innovation, and a commitment to quality that extends from initial design through manufacturing and ongoing service. Investing in high-quality, reliable rolls – whether newly manufactured or expertly refurbished – is not an expense; it's an investment in the operational health and profitability of the mill. By partnering with a knowledgeable and capable roll specialist, paper mills can ensure these critical components deliver optimal performance, minimize costly downtime, and contribute to producing the best possible paper product. If you're looking to enhance your mill's performance through superior roll technology or require expert refurbishment services, the next step is to engage with specialists who understand your unique challenges. Consider reviewing your current roll performance data and identifying areas for potential improvement – a specialized partner can help turn those possibilities into reality.
