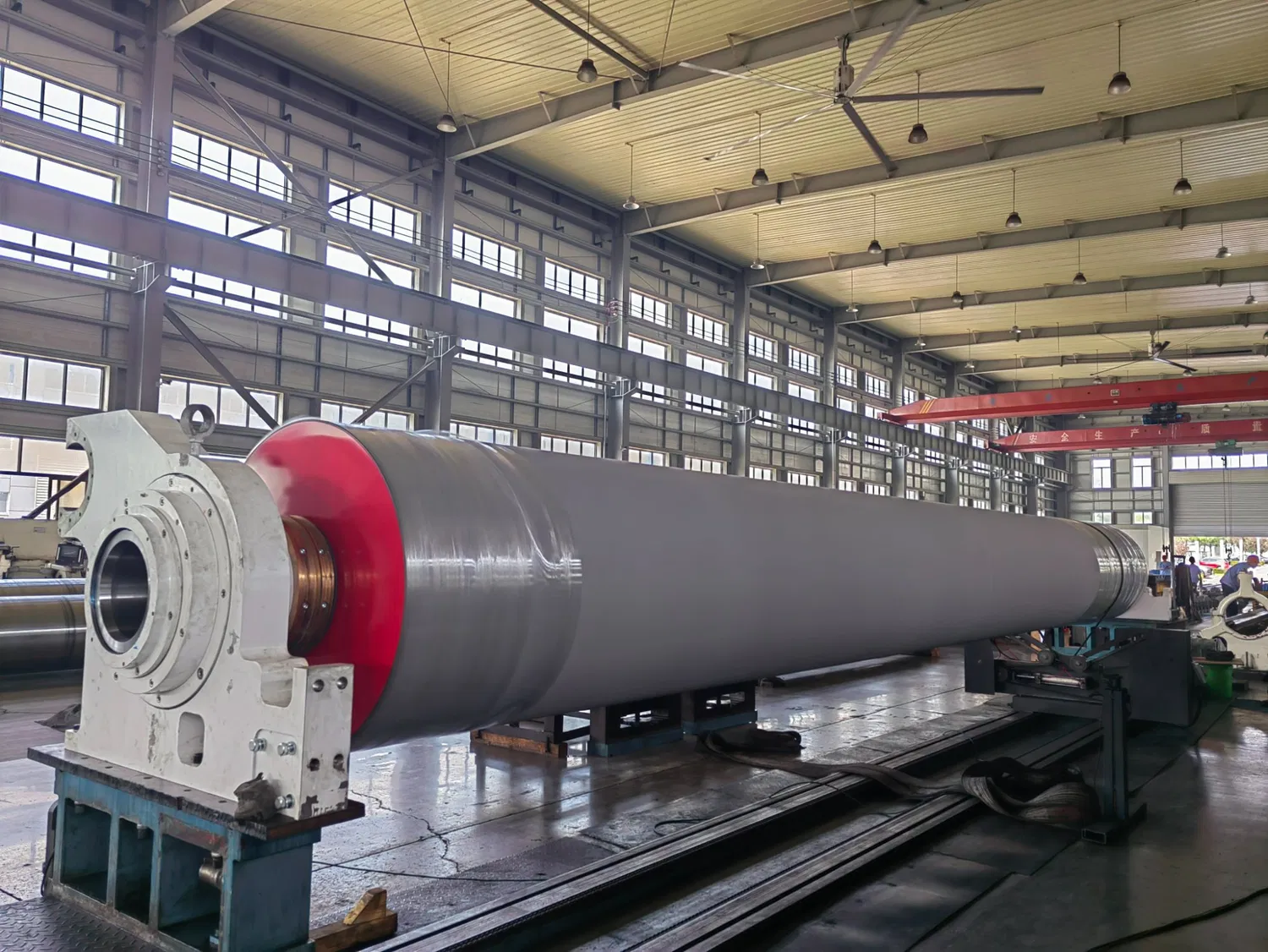

The world runs on paper, a seemingly simple material that underpins communication, packaging, hygiene, and countless other aspects of modern life. Yet, the process of transforming raw pulp into finished paper is incredibly complex and relies heavily on massive, intricate machinery. At the very heart of the paper machine lie its rollers – dozens, sometimes hundreds, of cylindrical components that guide, press, dry, and finish the paper sheet. The performance of these rollers is absolutely paramount; even slight imperfections can lead to significant production losses, compromised quality, and increased operational costs. This is where the specialized expertise of a Paper Mill Roller Fabricator becomes indispensable. These aren't just machinists; they are engineers and craftsmen who understand the unique demands of the papermaking environment – the extreme pressures, high temperatures, corrosive chemicals, and relentless speeds – and possess the skills to create rollers that can withstand these conditions while delivering unwavering precision, day in and day out. Frankly speaking, the quality of the final paper product is intrinsically linked to the quality of the rollers it touches.
Understanding the Diverse World of Paper Mill Rollers
It's easy to think of paper machine rollers as simple cylinders, but nothing could be further from the truth. Each position within the paper machine demands a roller with specific characteristics tailored to its function. In the press section, for instance, rollers are designed to mechanically squeeze water out of the nascent paper web. These include types like suction press rolls (using vacuum to aid water removal), blind-drilled rolls (with small pockets to receive water), and grooved rolls (providing channels for water escape). These rollers must withstand immense nip pressures, often hundreds of pounds per linear inch, requiring robust core construction and specialized coverings. Then comes the dryer section, a long series of large, steam-heated cylinders responsible for evaporating the remaining moisture. Dryer rolls must endure high temperatures and potential corrosion while ensuring efficient heat transfer. Materials like cast iron are common here due to their thermal stability and pressure vessel integrity. Further down the line, guide rolls ensure the paper web tracks correctly through the machine at high speeds, demanding precision alignment and smooth surfaces. Finally, calendar rolls, often arranged in stacks, impart smoothness and gloss to the paper surface, requiring exceptional surface finishes and hardness. Have you ever considered how many different specialized functions these components perform?
Materials and Design Considerations
The demanding environment within a paper machine dictates careful material selection and sophisticated design for every roller. The choice isn't arbitrary; it's a calculated decision based on the roller's specific role, operating conditions, and desired lifespan. Core materials typically range from high-strength steel alloys and ductile cast iron to, in some specialized cases, composite materials offering high stiffness-to-weight ratios. The internal structure, whether forged, cast, or fabricated, must provide exceptional rigidity to prevent deflection under load, which could cause uneven pressure distribution and paper quality issues. Surface materials are equally critical. Many rollers utilize specialized coverings or coatings to enhance performance. For example:
- Rubber and Polyurethane Covers: Widely used in press sections, these provide the necessary nip properties, resilience, and water-handling characteristics. Their hardness and groove patterns are precisely specified.
- Chrome Plating: Offers excellent hardness and release properties, often used on press rolls or calendar rolls.
- Thermal Spray Coatings (e.g., Tungsten Carbide, Ceramics): Provide exceptional wear and corrosion resistance, ideal for high-wear positions like guide rolls or certain dryer applications.
The Intricate Process of Roller Fabrication
Creating a new paper mill roller is a multi-stage process demanding meticulous attention to detail and advanced manufacturing techniques. It begins long before any metal is cut, starting with a thorough understanding of the application requirements – speeds, loads, temperatures, chemical environment, and desired paper properties. Detailed engineering drawings and specifications guide the entire process. Material selection, as discussed, is the foundational step. Once the core material (often a large forging or casting) is procured and inspected, the initial rough machining begins. This stage shapes the roller body, removing excess material and preparing it for more precise operations. For fabricated rolls, this involves welding components together with utmost care to ensure structural integrity. Heat treatment processes might be employed at various stages to relieve stress or achieve specific metallurgical properties, enhancing the roller's strength and stability. To be honest, getting these initial steps right is fundamental to the roller's ultimate performance and longevity, preventing issues like distortion or premature failure later in its service life.
Precision Machining and Balancing: The Core of Quality
Following the initial shaping and potential heat treatment, the roller enters the critical phases of precision machining and finishing. This typically involves turning operations on large lathes to achieve the basic cylindrical shape and dimensions, followed by grinding to attain the final precise diameter, surface finish, and any required profile (like crowning). Modern fabricators utilize sophisticated CNC (Computer Numerical Control) machines capable of achieving tolerances measured in microns (thousandths of a millimeter). Achieving such accuracy is non-negotiable; minute deviations in diameter, concentricity, or straightness can lead to uneven pressure application, causing variations in paper thickness, moisture content, and finish. Equally critical is dynamic balancing. As these massive rollers rotate at high speeds, any imbalance creates vibrations that can damage bearings, support structures, and even the roller itself, leading to poor paper quality and potential safety hazards. Dynamic balancing machines spin the roller and measure imbalances, allowing technicians to strategically add or remove weight to ensure smooth, vibration-free operation across the entire operating speed range. This step is absolutely essential for both performance and machine health, forming a cornerstone of custom paper machine roll manufacturing.
Surface Treatments: Tailoring Performance
While the core provides structural integrity and precision dimensions define its geometry, the roller's surface often dictates its interaction with the paper sheet and its resistance to the harsh operating environment. This is where specialized coverings and coatings play a vital role. The application of these surfaces is a science in itself. For rubber or polyurethane coverings, the process involves carefully preparing the metal surface, applying bonding agents, building up the cover material layer by layer (often through extrusion or strip winding), and then vulcanizing (curing) it under controlled temperature and pressure. Post-curing, the cover is precision ground to the final specified diameter, profile, and surface roughness. Different compounds offer varying degrees of hardness, chemical resistance, and release properties, tailored to specific needs like pressing, sizing, or coating applications. Metallic coatings, such as hard chrome plating or thermal sprays, involve different technologies like electroplating or high-velocity spraying of molten or semi-molten materials. These provide extremely hard, wear-resistant, and often corrosion-resistant surfaces critical for applications like dryer cans, calendar rolls, or heavily loaded guide rolls. Selecting and correctly applying the right surface treatment is crucial for maximizing roller life and ensuring consistent paper quality.
The Uncompromising Role of Quality Control
Given the high stakes involved in paper production – where machine downtime can cost thousands per hour and quality deviations lead to rejected product – rigorous quality control throughout the fabrication process is paramount. A reputable Paper Mill Roller Fabricator integrates quality checks at every stage, from raw material inspection to final acceptance testing. Dimensional accuracy is verified using precision instruments like large micrometers, laser trackers, and coordinate measuring machines (CMMs). Tolerances for diameter, roundness, concentricity, and total indicated runout (TIR) are often extremely tight and must be meticulously documented. Non-destructive testing (NDT) methods, such as ultrasonic testing (UT) and magnetic particle inspection (MPI), are employed to detect any subsurface flaws or surface cracks in the core material or welds that could compromise the roller's structural integrity. Surface finish is measured to ensure it meets specifications critical for paper quality or proper coating adhesion. Balancing reports provide documented proof of smooth rotational characteristics. Why is this level of scrutiny so vital? Because a single out-of-spec roller can disrupt the entire production line, leading to costly problems that far outweigh any perceived savings from cutting corners on quality assurance.
Advanced Technologies in Roller Fabrication
The quest for ever-higher paper machine speeds, improved paper quality, and longer roller lifecycles continuously drives innovation in fabrication techniques. Modern fabricators leverage advanced technologies to meet these escalating demands. CNC machining centers provide unparalleled precision and repeatability in turning and grinding operations, enabling complex profiles (like precisely calculated crowns) to be machined accurately. Laser alignment tools ensure precise setup during machining and are also invaluable for installation in the paper machine itself. Sophisticated software aids in design (CAD), engineering analysis (FEA - Finite Element Analysis to predict stress and deflection), and manufacturing process planning (CAM). In the realm of coatings, advancements in thermal spray technology (like HVOF - High-Velocity Oxygen Fuel) allow for denser, better-bonded coatings with superior wear and corrosion resistance compared to older methods. Automated grinding systems can achieve finer surface finishes and tighter tolerances. Furthermore, advanced diagnostic tools used during quality control, like portable surface roughness testers and sophisticated NDT equipment, provide greater assurance of roller integrity. Embracing these technologies allows leading fabricators like our company to produce rollers that meet the highest standards of performance and reliability demanded by today's paper industry.
Beyond Fabrication: Maintenance and Repair Services
A roller's life doesn't end once it's installed in the paper machine. The relentless operating conditions inevitably lead to wear and tear over time. Surfaces wear down, coverings lose their properties, journals (the roller ends supported by bearings) can become scored or damaged, and corrosion can take hold. Proactive maintenance and timely repair are crucial for extending roller life, maintaining paper quality, and preventing catastrophic failures. Many expert fabricators also offer comprehensive paper mill roll maintenance services. This often starts with detailed inspections, either on-site or after the roll is removed, using many of the same QC techniques employed during manufacturing. Common maintenance procedures include roll grinding to restore the correct diameter, profile, and surface finish. For covered rolls, this might involve stripping the old cover, inspecting the core, and applying a new cover. Journal repair is also a frequent necessity, often involving precision welding, machining, or sleeving to restore critical dimensions. Re-balancing is essential after any significant repair work. In my experience, establishing a regular inspection and maintenance program is one of the most effective ways to maximize the return on investment in these critical assets.
The Economics of Repair vs. Replacement
When a roller shows signs of significant wear or damage, paper mills face a critical decision: repair or replace? The answer isn't always straightforward and involves careful consideration of several factors. Repairing a roller, especially refurbishing the core and applying a new surface or repairing journals, is often significantly less expensive than manufacturing a completely new one, particularly for large, complex rollers. It can also be faster, reducing costly downtime. However, the feasibility and effectiveness of repair depend on the nature and extent of the damage. If the roller core itself has suffered severe corrosion, cracking, or deformation, repair might not be possible or cost-effective. The expected remaining lifespan after repair versus the cost of repair is a key calculation. Sometimes, technological advancements might mean a new roller design offers significantly better performance or efficiency, justifying the higher initial cost of replacement. An experienced fabricator can provide valuable insight here, assessing the roller's condition and offering expert recommendations on the most economical and technically sound course of action. Our company often collaborates with mills to perform these evaluations, ensuring they make informed decisions that balance cost, performance, and operational reliability.
Selecting the Ideal Paper Mill Roller Fabricator Partner
Choosing the right partner for roller fabrication and service is a decision with long-term implications for a paper mill's operational efficiency and profitability. It goes far beyond simply comparing price quotes. What truly matters is finding a Paper Mill Roller Fabricator with deep expertise specifically in the pulp and paper industry. They need to understand the nuances of different machine sections, paper grades, and the impact roller characteristics have on the final product. Look for a proven track record, supported by case studies or testimonials. Assess their manufacturing capabilities – do they have the necessary large-scale machining equipment, diverse coating and covering technologies, and robust quality assurance systems (e.g., ISO 9001 certification)? Technical expertise within their engineering team is crucial for collaboration on custom designs or troubleshooting existing problems. Furthermore, consider their service orientation: responsiveness, communication, and willingness to provide ongoing support, including installation assistance and maintenance advice. Have you ever paused to evaluate if your current roller supplier truly functions as a strategic partner, contributing to your mill's success beyond just supplying parts? This partnership approach is something we pride ourselves on, working closely with clients to deliver optimal solutions.
Conclusion: Investing in Roller Quality is Investing in Success
In the complex and demanding world of papermaking, the performance of every component matters, but few are as fundamentally critical as the rollers. From the initial pressing of the wet web to the final calendering that imparts the desired finish, rollers are constantly interacting with the product, influencing its quality and the efficiency of the entire process. Ensuring these components are fabricated to the highest standards of precision, using the right materials and surface treatments, is not an expense but an investment in operational reliability, consistent quality, and ultimately, profitability. Partnering with an experienced and capable Paper Mill Roller Fabricator provides access to the specialized knowledge, advanced manufacturing techniques, and rigorous quality control needed to produce rollers that meet and exceed the demands of modern paper machines. If you're looking to enhance your machine's performance, improve paper quality, or extend the life of your critical roller assets, now is the time to assess your current situation. Consider consulting with specialists who understand the intricacies of roller design, fabrication, and maintenance. Taking proactive steps today can lead to significant improvements in your mill's operation tomorrow.
