In the intricate world of metal rolling, achieving consistent sheet properties and optimal machine performance hinges on a multitude of factors. Among these, roll deflection stands out as a critical parameter that can significantly influence both the quality of the final product and the efficiency of the rolling process itself. Understanding the nuances of roll deflection, its causes, and its consequences is paramount for engineers and operators striving for precision and excellence in metal forming. This article delves into the multifaceted impact of roll deflection, exploring its effects on sheet characteristics, machine operation, and the strategies employed to mitigate its adverse effects.

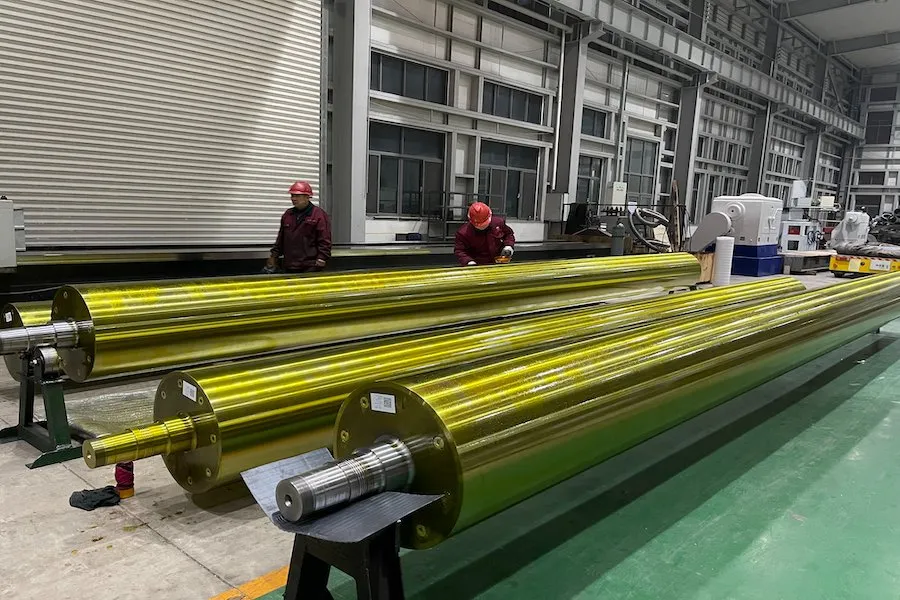

Understanding Roll Deflection in Rolling Mills
Roll deflection, in essence, refers to the bending or deformation of rolling mill rolls under the immense forces exerted during the rolling process. Imagine the sheer pressure required to reduce the thickness of a metal sheet as it passes between two heavy rolls. This pressure, concentrated along the roll contact length, inevitably causes the rolls to bend, particularly in the middle of their length where the bending moment is at its maximum. This bending, or deflection, is not uniform across the roll length; it’s typically greatest at the center and diminishes towards the roll ends. The degree of deflection is influenced by several factors, including the rolling force, the roll diameter, the roll length, and the material properties of the rolls themselves. To be honest, even seemingly minor deflections can have profound implications for the uniformity and quality of the rolled sheet.
Factors Contributing to Roll Deflection
Several key factors contribute to the extent of roll deflection in rolling mills. The most significant is the rolling force – the higher the force applied to reduce the sheet thickness, the greater the deflection. Secondly, the roll dimensions play a crucial role. Longer rolls and rolls with smaller diameters are inherently more susceptible to bending. Think of a thin ruler versus a thick one – the thin ruler bends much more easily under the same load. The material of the rolls also matters; materials with lower stiffness, measured by their Young's modulus, will deflect more under the same load compared to stiffer materials. Furthermore, the distribution of the rolling force along the roll length is not always uniform, and variations in this distribution can also affect the deflection profile. Finally, thermal effects, such as temperature gradients across the rolls, can induce thermal expansion and contraction, contributing to additional deflection and profile changes.
Impact on Sheet Thickness and Profile Control
The most direct and visually apparent consequence of roll deflection is its impact on sheet thickness and profile. Because the rolls deflect more in the middle, the gap between the rolls is larger at the center than at the edges. This non-uniform roll gap directly translates into a non-uniform sheet thickness. Typically, the sheet becomes thicker in the center and thinner at the edges, a phenomenon known as crown. Excessive crown can be detrimental in many applications, requiring further processing steps to achieve flatness or leading to material waste. Furthermore, uneven deflection across the roll length can also contribute to other profile defects like edge drop, where the sheet thickness decreases sharply at the edges. Controlling roll deflection is therefore crucial for achieving the desired sheet thickness uniformity and profile tolerances. Have you ever wondered why some metal sheets are perfectly flat while others exhibit noticeable curvature? Roll deflection is often a key part of the answer.
Influence on Sheet Surface Quality and Defects
Beyond thickness and profile, roll deflection also indirectly influences sheet surface quality. The pressure distribution across the roll contact area is affected by deflection. Non-uniform pressure can lead to variations in surface finish and potentially induce surface defects. For instance, areas of higher pressure due to localized deflection might result in increased surface roughness or even surface cracking, especially when rolling harder materials. Moreover, uneven roll deflection can contribute to issues like strip shape defects. Think of it this way: if the rolls are not perfectly parallel due to deflection, the sheet might experience uneven elongation across its width, leading to waviness or buckles in the final product. Maintaining consistent roll deflection is therefore not just about thickness control; it's also about ensuring a high-quality surface finish free from defects, which is often a critical requirement for many downstream applications.
Effects on Material Properties of the Rolled Sheet
Interestingly enough, roll deflection can even have subtle but important effects on the material properties of the rolled sheet. The degree of deformation and the strain distribution within the sheet are influenced by the roll gap profile, which is in turn affected by deflection. Variations in strain across the sheet width can lead to non-uniformity in mechanical properties like tensile strength, yield strength, and elongation. For example, areas subjected to higher strain due to a more constricted roll gap (possibly caused by localized deflection) might exhibit different mechanical properties compared to areas with lower strain. While these effects might not always be immediately apparent, they can become significant in applications where precise and uniform material properties are essential, such as in the automotive or aerospace industries. It's worth noting that controlling roll deflection contributes to a more homogeneous deformation process, leading to more consistent and predictable material properties across the entire sheet.
Consequences for Rolling Mill Machine Performance
The impact of roll deflection extends beyond sheet quality and directly affects the performance and longevity of the rolling mill itself. Excessive or uncontrolled deflection can lead to increased roll wear. When rolls deflect unevenly, the pressure distribution across the roll surface becomes non-uniform, concentrating stress in certain areas and accelerating wear. This necessitates more frequent roll changes, increasing downtime and maintenance costs. Furthermore, significant roll deflection can contribute to mill instability and vibrations. Imagine the rolls vibrating due to uneven forces and deflection – this can negatively impact the rolling process, leading to dimensional inaccuracies and surface defects. In extreme cases, excessive deflection can even cause damage to the mill stand and other machine components. Managing roll deflection is therefore crucial not only for product quality but also for ensuring the reliable and efficient operation of the rolling mill, minimizing downtime and extending the lifespan of critical machine components.
Measurement and Monitoring of Roll Deflection
To effectively manage and mitigate the effects of roll deflection, accurate measurement and monitoring are essential. Various techniques are employed to assess roll deflection in rolling mills. One common approach involves using displacement sensors, such as laser sensors or eddy current sensors, to directly measure the roll profile under load. These sensors can provide real-time data on the deflection curve across the roll length. Another method involves indirect measurement through monitoring parameters like rolling force distribution and sheet profile. By analyzing these data, engineers can infer the extent of roll deflection. Advanced rolling mills often incorporate sophisticated online monitoring systems that continuously track roll deflection and provide feedback for automatic adjustments to control systems. These systems are crucial for maintaining consistent product quality and optimizing machine performance in dynamic rolling conditions. Frankly speaking, without accurate deflection measurement, effective control strategies would be practically impossible to implement.
Crown Control Techniques to Mitigate Deflection
Given the significant impact of roll deflection, various crown control techniques have been developed to minimize its adverse effects. These techniques can be broadly categorized into passive and active methods. Passive methods involve designing rolls with specific profiles, such as crowned rolls, which are thicker in the middle to compensate for predicted deflection under typical rolling loads. However, passive crown is fixed and may not be optimal for varying rolling conditions. Active crown control systems offer more flexibility. These systems typically employ hydraulic cylinders or other actuators to apply bending forces to the rolls, counteracting the deflection caused by the rolling load. Roll bending, roll shifting (axially moving the rolls), and work roll tilting are common active crown control methods. Modern rolling mills often incorporate sophisticated automatic crown control systems that dynamically adjust roll bending forces based on real-time deflection measurements and desired sheet profile, ensuring consistent product quality across a wide range of rolling conditions. Why is this approach so effective? Because it directly addresses the root cause of profile defects – roll deflection.
Advanced Roll Technologies for Reduced Deflection
Beyond crown control techniques, advancements in roll materials and designs are also playing a crucial role in minimizing roll deflection. The development of high-stiffness roll materials, such as advanced alloy steels and composite materials, directly reduces deflection under load. These materials offer a higher Young's modulus, meaning they are more resistant to bending. Furthermore, innovative roll designs, such as segmented rolls or rolls with internal cooling channels, are being explored to improve roll stiffness and thermal stability. Segmented rolls, for example, can offer better profile control and reduced deflection by allowing for independent adjustment of different roll sections. Internal cooling channels help to minimize thermal gradients within the rolls, reducing thermally induced deflection. Ongoing research and development in roll technology are continuously pushing the boundaries of what's possible in terms of minimizing roll deflection and achieving even higher levels of precision and performance in metal rolling. In my experience, the combination of advanced materials, innovative designs, and sophisticated control systems is the key to future advancements in this field.
Practical Examples and Applications
The principles of roll deflection and its control are applied across a wide spectrum of metal rolling processes. In hot rolling of steel, where very high forces are involved, managing roll deflection is critical for producing flat and uniform steel sheets and plates used in construction, automotive, and shipbuilding. In cold rolling of aluminum for beverage cans or aerospace components, precise thickness control and surface finish are paramount, making deflection control even more crucial. Consider the production of thin gauge stainless steel strips for medical devices or electronics – here, even minute variations in thickness or profile due to deflection can be unacceptable. In these applications, advanced crown control systems and high-precision rolling mills are essential. Moreover, in the production of specialty alloys with tight tolerances, understanding and controlling roll deflection is not just best practice, it's a necessity for meeting stringent quality requirements and minimizing material waste. These practical examples highlight the universal relevance of roll deflection management across diverse metal rolling applications.
Interactive Questions and Solutions from Our Company
Have you ever faced challenges with inconsistent sheet thickness or profile in your rolling operations? Are you struggling with excessive roll wear or mill instability? These issues might be directly related to unmanaged or poorly controlled roll deflection. Our company specializes in providing advanced solutions for optimizing rolling mill performance, including state-of-the-art roll deflection measurement systems and active crown control technologies. We offer customized solutions tailored to your specific rolling mill and product requirements, helping you to achieve superior sheet quality, reduce material waste, and improve machine efficiency. Our expert team can assist you in diagnosing deflection-related problems, implementing effective control strategies, and upgrading your existing equipment with the latest technologies. By partnering with us, you can overcome the challenges posed by roll deflection and unlock the full potential of your rolling operations.
Conclusion: Mastering Roll Deflection for Superior Rolling
In conclusion, the impact of roll deflection on sheet properties and machine performance in metal rolling is profound and multifaceted. From influencing sheet thickness and profile to affecting surface quality, material properties, and machine reliability, roll deflection is a critical parameter that demands careful consideration and effective management. By understanding the mechanisms of deflection, employing advanced measurement techniques, and implementing sophisticated crown control strategies, manufacturers can significantly enhance the quality of their rolled products, improve machine efficiency, and reduce operational costs. Mastering roll deflection is not just about addressing a technical challenge; it's about achieving superior rolling performance and maintaining a competitive edge in today's demanding manufacturing landscape. As the industry continues to push for tighter tolerances and higher quality standards, the importance of effectively managing roll deflection will only continue to grow.
