The press section of a paper machine is a critical stage in the papermaking process, where significant water removal occurs after the forming section and before the dryer section. Efficient water removal in this stage is paramount for achieving higher paper quality, reducing energy consumption in the subsequent drying process, and increasing overall production efficiency. Suction rolls are indispensable components within the press section, playing a vital role in mechanically dewatering the paper web. The design of these suction rolls significantly impacts their effectiveness in removing water. Therefore, understanding the various designs and their comparative advantages and disadvantages is crucial for paper mill operators and engineers aiming to optimize their press section performance. This article delves into a detailed comparison of different suction roll designs, highlighting their mechanisms, strengths, and weaknesses in achieving effective water removal.
Conventional Suction Rolls: The Workhorse of Water Removal
Conventional suction rolls have been the mainstay of press sections for decades, and for good reason. Their design, while seemingly straightforward, is incredibly effective in many applications. At their core, a conventional suction roll consists of a rotating perforated shell, typically made of bronze or stainless steel, enclosing a stationary suction box. As the paper web and press felt pass over the roll, a vacuum is applied within the suction box. This vacuum draws air through the perforations in the shell and, crucially, through the moving paper web and felt. This airflow pulls water from the web into the suction box, significantly reducing the moisture content of the paper before it enters the dryer section. The effectiveness of conventional suction rolls lies in their ability to apply a consistent and adjustable vacuum across the width of the paper web, ensuring uniform dewatering. They are robust, reliable, and relatively simple to maintain, making them a popular choice in a wide range of paper grades and machine speeds. However, they are not without limitations, particularly in demanding high-speed or high-basis-weight applications where more advanced designs may offer superior performance.
Limitations and Advancements in Suction Roll Technology
While conventional suction rolls are effective, their design has inherent limitations. One key area is the potential for marking the paper web, especially with finer paper grades. The perforations in the shell, if not carefully designed and maintained, can leave slight impressions on the paper surface. Another limitation is the energy consumption associated with generating the vacuum. Large vacuum systems are required to operate conventional suction rolls, contributing significantly to the overall energy footprint of the paper machine. Furthermore, at very high speeds, the dwell time of the paper web over the suction box becomes shorter, potentially reducing the efficiency of water removal. These limitations have spurred the development of advanced suction roll designs aimed at overcoming these challenges. Innovations have focused on optimizing shell design, vacuum application methods, and roll construction materials to enhance water removal efficiency, reduce energy consumption, and minimize paper marking. These advancements have led to the introduction of open suction rolls, variable crown rolls, and shoe press suction rolls, each offering unique advantages in specific papermaking scenarios.
Open Suction Rolls: Enhancing Water Handling Capacity
Open suction rolls represent an evolution in suction roll design specifically aimed at improving water handling capacity, particularly in applications with high water loads, such as the first press position after the forming section. Unlike conventional suction rolls with numerous small perforations, open suction rolls feature larger, more widely spaced holes or slots in their shells. This design modification significantly increases the open area of the roll surface, allowing for a greater volume of water to be drawn into the suction box. This enhanced water handling capacity is particularly beneficial when dealing with wetter paper webs entering the press section. The larger openings also tend to be less prone to plugging with fibers and fillers compared to the smaller perforations of conventional rolls, leading to more consistent vacuum levels and reduced maintenance requirements. Interestingly enough, the trade-off with open suction rolls is often a slightly reduced vacuum intensity directly at the nip point compared to conventional designs, as the vacuum is distributed over a larger area. However, the increased water removal volume often outweighs this potential disadvantage in high-water-load applications, making open suction rolls an excellent choice for specific press positions within the machine. Furthermore, the design can be optimized to balance open area and vacuum intensity based on the specific requirements of the paper grade and machine configuration.
Variable Crown Suction Rolls: Optimizing Nip Uniformity
Maintaining uniform nip pressure across the width of the paper web is critical for consistent water removal and paper quality. However, factors such as roll deflection under load and variations in felt thickness can lead to uneven nip pressure profiles, resulting in non-uniform dewatering and potential sheet defects. Variable crown suction rolls are engineered to address this challenge by allowing for on-the-fly adjustment of the roll crown to compensate for these variations. These rolls incorporate internal mechanisms, often hydraulic or pneumatic, that can adjust the roll's shape, effectively changing the nip profile. By precisely controlling the crown, operators can ensure uniform nip pressure across the entire width of the paper web, regardless of load variations or felt wear. This precise nip control leads to more consistent water removal, improved sheet dryness uniformity, and reduced sheet breaks. Variable crown suction rolls are particularly valuable in wider paper machines and in applications where precise control over sheet moisture profile is paramount for achieving high paper quality and runnability. The ability to dynamically adjust the crown also allows for optimization across different paper grades and operating conditions, enhancing the versatility and efficiency of the press section.
The Role of Shell Material and Drilling Patterns
Beyond the overall design type, the specific materials and drilling patterns used in suction roll shells play a significant role in their performance and longevity. Shell materials are typically selected based on their strength, corrosion resistance, and wear characteristics. Bronze has historically been a popular choice due to its good machinability and resistance to corrosion, while stainless steel is increasingly favored for its superior strength and durability, especially in high-speed and high-load applications. The drilling pattern, including hole size, spacing, and angle, is meticulously engineered to optimize water removal efficiency and minimize paper marking. The pattern needs to balance open area for water removal with sufficient structural integrity of the shell and minimize the potential for vacuum pulsation or sheet flutter. For instance, staggered drilling patterns can improve vacuum uniformity, while angled holes can direct airflow more effectively. It's worth noting that specialized drilling patterns are often developed for specific paper grades and press configurations to fine-tune water removal performance and address specific paper quality requirements. The selection of shell material and drilling pattern is therefore a crucial aspect of suction roll design and optimization, requiring careful consideration of the application requirements and operating conditions.
Vacuum Levels and Control Systems: The Driving Force Behind Dewatering
The effectiveness of any suction roll design is intrinsically linked to the vacuum level applied and the precision of the vacuum control system. The vacuum level is the driving force that draws air and water through the paper web and felt, and optimizing this level is crucial for maximizing water removal efficiency without causing sheet breaks or excessive energy consumption. Modern paper machines employ sophisticated vacuum control systems that allow for precise adjustment and monitoring of vacuum levels in different suction boxes within the press section. These systems often utilize variable frequency drives (VFDs) on vacuum pumps to modulate vacuum levels based on machine speed, paper grade, and moisture content. Advanced control strategies may also incorporate feedback loops from moisture sensors to dynamically adjust vacuum levels in real-time, ensuring optimal dewatering under varying operating conditions. The design of the suction box itself also plays a role in vacuum efficiency. Internal baffles and seals are often incorporated to minimize air leakage and ensure that the applied vacuum is effectively directed to the paper web. Furthermore, segmented suction boxes allow for independent vacuum control across different zones of the roll, enabling fine-tuning of the moisture profile and addressing localized variations in sheet dryness. The synergy between suction roll design and the vacuum control system is paramount for achieving optimal water removal and press section performance.
Shoe Press Suction Rolls: Revolutionizing High-Impulse Dewatering
Shoe press technology represents a significant advancement in press section design, offering higher nip pressures and longer dwell times compared to conventional roll presses. Shoe press suction rolls are specifically designed to integrate with shoe press configurations and leverage the benefits of extended nip pressing. In a shoe press, one of the rolls is replaced by a hydraulically loaded shoe, creating a wider and longer nip zone. Shoe press suction rolls typically feature a similar perforated shell and suction box arrangement as conventional rolls, but they are designed to withstand the higher nip loads and operate effectively within the extended nip zone. The longer dwell time in the shoe press nip allows for more prolonged and effective dewatering, achieving significantly higher sheet dryness levels exiting the press section. This enhanced dryness translates to substantial energy savings in the dryer section and improved paper quality. Shoe press suction rolls are particularly advantageous in high-speed and high-basis-weight applications where maximum dewatering efficiency is critical. While shoe press technology involves a higher capital investment compared to conventional press sections, the benefits in terms of energy savings, production efficiency, and paper quality often justify the investment in demanding applications. The design and operation of shoe press suction rolls are key to realizing the full potential of shoe press technology in modern papermaking.
Practical Examples and Applications Across Paper Grades
The selection of the most appropriate suction roll design is heavily influenced by the specific paper grade being produced and the operating conditions of the paper machine. For instance, in newsprint production, where high machine speeds and relatively lower basis weights are common, conventional suction rolls or open suction rolls in the first press position might be sufficient. However, for heavier grades like linerboard or corrugated medium, which require more aggressive dewatering, shoe press suction rolls or variable crown suction rolls in combination with conventional rolls might be necessary to achieve target dryness levels and paper quality. In fine paper production, where sheet marking is a significant concern, careful selection of shell drilling patterns and roll cover materials is crucial, and variable crown rolls can be particularly beneficial for ensuring uniform nip pressure and minimizing marking. Specialty paper grades may have unique dewatering requirements, necessitating customized suction roll designs and vacuum control strategies. For example, in tissue paper production, gentle dewatering is essential to maintain sheet structure, and specialized suction roll designs with optimized vacuum levels and nip pressures are employed. Therefore, a thorough understanding of the specific demands of each paper grade is paramount when selecting and optimizing suction roll designs for effective water removal in the press section. Have you ever considered how dramatically changing paper grades could impact the ideal suction roll configuration? This adaptability is key to maximizing mill efficiency.

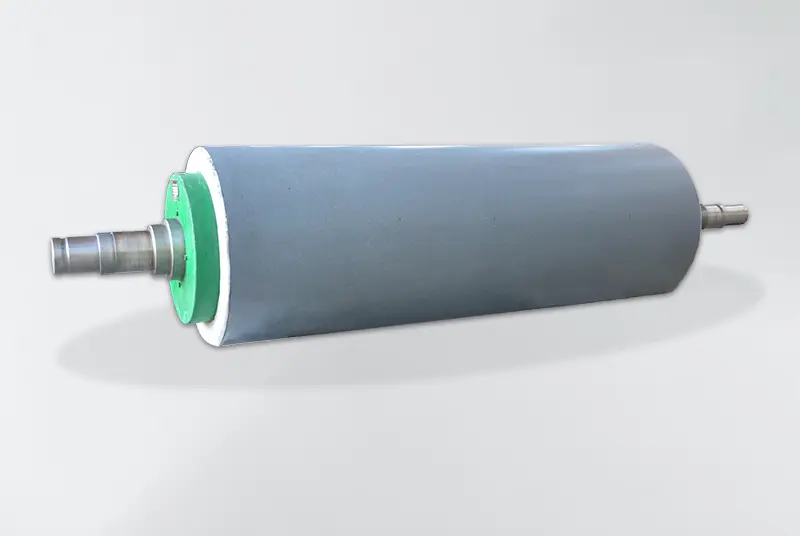

Our Solutions for Optimizing Suction Roll Performance
At our company, we understand the critical role of suction rolls in achieving efficient water removal and optimizing press section performance. We offer a comprehensive range of suction roll solutions, encompassing various designs, materials, and customized configurations to meet the diverse needs of the papermaking industry. Our expertise extends from conventional suction rolls to advanced open suction rolls, variable crown rolls, and specialized designs for shoe presses and demanding applications. We work closely with paper mills to analyze their specific requirements, paper grades, and machine configurations to recommend and implement the most effective suction roll solutions. Our products are engineered for durability, reliability, and optimal dewatering performance, utilizing high-quality materials and precision manufacturing processes. Furthermore, we provide comprehensive support services, including roll maintenance, rebuilds, and optimization consultations, to ensure the continued efficient operation of our suction rolls throughout their lifecycle. We are committed to helping our customers achieve maximum water removal efficiency, improve paper quality, reduce energy consumption, and enhance overall production profitability through our innovative suction roll technologies and expert support. Frankly speaking, our commitment to innovation and customer satisfaction sets us apart in providing tailored solutions for the most challenging papermaking environments.
Conclusion: The Ongoing Evolution of Suction Roll Design
In conclusion, the design of suction rolls is a critical factor in achieving effective water removal in the press section of a paper machine. The choice between conventional suction rolls, open suction rolls, variable crown rolls, shoe press suction rolls, or a combination thereof depends on a multitude of factors, including paper grade, machine speed, basis weight, and desired paper quality. Each design offers unique advantages and disadvantages, and the optimal selection requires a thorough understanding of the specific application requirements and operating conditions. Ongoing advancements in materials, manufacturing techniques, and control systems continue to drive the evolution of suction roll technology, pushing the boundaries of water removal efficiency and press section performance. As paper machines become wider and faster, and as energy efficiency and paper quality demands become more stringent, the importance of optimized suction roll designs will only continue to grow. By carefully considering the various designs and leveraging the latest technological advancements, paper mills can unlock significant improvements in press section performance, leading to enhanced production efficiency, reduced operating costs, and superior paper quality. The comparison of suction roll designs remains a central theme in the pursuit of efficient and sustainable papermaking.
