In the demanding world of paper manufacturing, achieving consistently high paper quality and maximizing production efficiency are paramount. Among the various challenges faced by paper mills, barring and vibration issues in paper machine rolls stand out as significant culprits that can compromise both quality and efficiency. These phenomena, often subtle yet profoundly impactful, can lead to a cascade of problems, ranging from uneven paper thickness and surface defects to premature wear of machine components and costly downtime. Understanding the root causes of barring and vibration, and implementing effective preventive strategies, is therefore not just a matter of operational optimization, but a fundamental necessity for maintaining a competitive edge in the paper industry. This article delves into the complexities of barring and vibration in paper machine rolls, exploring their origins, diagnostic methods, and, most importantly, the comprehensive preventative measures that can be adopted to mitigate their detrimental effects.

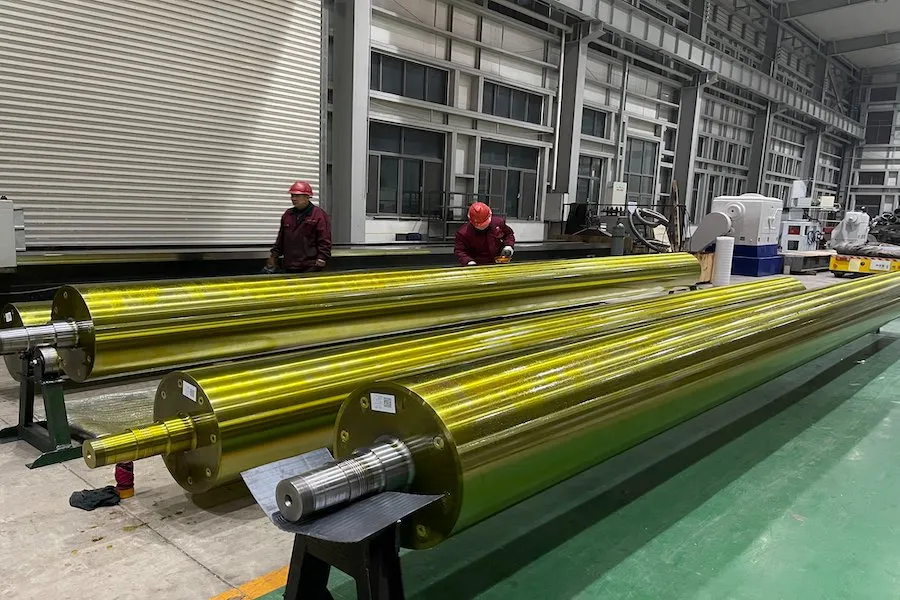

Understanding Barring in Paper Machine Rolls
Barring, in the context of paper machine rolls, refers to a periodic variation in the roll surface profile, which subsequently imprints itself onto the paper web as a repeating pattern of thickness or density variations. This isn’t just a cosmetic issue; barring can significantly degrade paper quality, leading to problems in printing, coating, and converting processes further down the production line. Barring can manifest in two primary directions relative to the paper web: Machine Direction (MD) barring and Cross Direction (CD) barring. MD barring appears as bands running across the width of the paper, while CD barring presents as stripes along the length of the paper. The formation of barring is a complex phenomenon influenced by a multitude of factors, including roll geometry, material properties, operating conditions, and even the dynamic interactions within the paper machine itself. It’s worth noting that barring often occurs at specific frequencies, which can be related to the rotational speed of the rolls or the natural frequencies of the roll-machine system. Identifying and understanding the specific type and frequency of barring is crucial for diagnosing its root cause and implementing targeted preventive measures.
Understanding Vibration in Paper Machine Rolls
Vibration in paper machine rolls is another critical issue that, while often related to barring, presents its own distinct set of challenges. Unlike barring, which is a physical defect on the roll surface, vibration is a dynamic phenomenon – a cyclical motion of the roll system. This motion can be caused by a variety of factors, ranging from imbalances in the rolls themselves to external forces acting on the machine. Excessive vibration not only contributes to barring but also accelerates wear and tear on bearings, seals, and other machine components, leading to increased maintenance costs and unplanned downtime. Furthermore, vibration can directly impact paper quality by introducing unevenness in the nip pressure and web tension, resulting in basis weight variations and sheet breaks. Vibration can occur at different frequencies and amplitudes, and can be classified as either forced vibration (driven by an external periodic force) or self-excited vibration (sustained by the system's own dynamics). Accurate vibration analysis, often using techniques like Fast Fourier Transform (FFT), is essential for pinpointing the sources of vibration and devising effective mitigation strategies.
Root Causes of Barring: A Deeper Dive
To effectively prevent barring, it's imperative to understand its underlying causes. One significant contributor is roll deflection. Under nip load, rolls inevitably deflect, and if this deflection is uneven or excessive, it can lead to variations in nip pressure across the roll width, promoting barring. Uneven nip pressure distribution, even without significant roll deflection, can also initiate barring. This could stem from uneven crown profiles, misalignment of rolls, or inconsistencies in the loading system. Roll surface irregularities, whether pre-existing from manufacturing or developed over time due to wear and tear, can act as nucleation points for barring. Even seemingly minor imperfections can amplify under operating conditions. Interestingly enough, fluid film instability in the nip can also play a role. In rolls that operate with a lubricating film, such as size press rolls or coating rolls, instabilities in this film can lead to periodic variations in the nip and subsequently, barring patterns. Finally, resonance phenomena within the roll-machine system can exacerbate barring. If the frequency of an excitation force (e.g., roll rotation, pump pulsations) coincides with a natural frequency of the roll system, resonance can amplify vibrations and barring tendencies.
Root Causes of Vibration: Identifying the Sources
Vibration in paper machine rolls can stem from a multitude of sources, both internal and external to the roll itself. Perhaps the most common cause is imbalance. Even meticulously manufactured rolls can have slight imbalances due to material density variations or manufacturing tolerances. As rolls rotate at high speeds, these imbalances generate centrifugal forces that induce vibration. Misalignment of rolls, whether parallel misalignment or angular misalignment, is another significant contributor. Misaligned rolls introduce cyclic forces that excite vibrations, particularly at the roll rotational frequency and its harmonics. Bearing issues, such as worn or damaged bearings, can be a major source of vibration. Bearing defects generate impacts and friction, leading to broadband vibration and potential damage to the roll journals and housings. Gear problems, in machines that utilize gear drives, can also induce vibration. Gear mesh inaccuracies, backlash, and wear can generate periodic forces that transmit vibrations to the rolls. It’s worth noting that hydraulic pulsations in hydraulic loading systems can also excite vibrations. Pressure fluctuations in the hydraulic system can transmit forces to the rolls, particularly at the pulsation frequency. Lastly, structural resonance of the paper machine frame and supporting structures can amplify vibrations originating from various sources. If the excitation frequency coincides with a structural natural frequency, resonance can lead to excessive vibration levels throughout the machine.
Diagnostic Methods for Barring and Vibration
Effective prevention of barring and vibration hinges on accurate diagnosis. Several diagnostic methods are employed in paper mills to identify and analyze these issues. Visual inspection, while seemingly simple, can often reveal signs of barring on the paper web itself. Periodic variations in gloss, color, or thickness can be indicative of barring. However, visual inspection alone is often insufficient for determining the root cause. Vibration analysis is a powerful tool for diagnosing vibration problems. Accelerometers are mounted on roll housings and other machine components to measure vibration signals. Frequency analysis, typically using FFT, decomposes the vibration signal into its frequency components, revealing the dominant frequencies and their amplitudes. This frequency spectrum can often pinpoint the source of vibration, such as imbalance (at rotational frequency), misalignment (at rotational frequency and harmonics), or bearing defects (at bearing defect frequencies). Nip impression analysis, using pressure-sensitive film or electronic nip analyzers, provides valuable information about nip pressure distribution across the roll width. Uneven nip pressure profiles can directly correlate with barring patterns and indicate issues with roll crowning, alignment, or loading systems. In some cases, modal analysis, a more advanced technique, can be used to identify the natural frequencies and mode shapes of the roll-machine system, helping to understand resonance phenomena and optimize damping strategies.
Preventive Measures: Design and Manufacturing Stage
Prevention is always better than cure, and this holds particularly true for barring and vibration in paper machine rolls. Implementing preventive measures starts right from the design and manufacturing stage of the rolls. Roll design optimization plays a crucial role. Careful consideration of roll diameter, shell thickness, and internal structure can minimize roll deflection under load and shift natural frequencies away from operating speeds. Material selection is another key aspect. Choosing materials with high stiffness and damping properties can reduce both deflection and vibration susceptibility. For instance, composite materials or specialized alloys may offer superior performance compared to traditional steel rolls in certain applications. Precision manufacturing is paramount. Stringent control over manufacturing tolerances, particularly for roll roundness, straightness, and surface finish, minimizes inherent imbalances and surface irregularities that can initiate barring and vibration. Dynamic balancing of rolls is a critical step before installation. Balancing corrects for residual imbalances, ensuring smooth rotation and minimizing vibration excitation. Advanced balancing techniques, such as multi-plane balancing, can further reduce vibration levels. Finally, surface finishing processes, such as precision grinding and polishing, create smooth and uniform roll surfaces, minimizing the potential for barring initiation due to surface imperfections.
Preventive Measures: Operational and Maintenance Practices
While robust roll design and manufacturing are essential, proper operational and maintenance practices are equally crucial for preventing barring and vibration throughout the roll’s lifespan. Correct roll installation and alignment are fundamental. Ensuring rolls are properly aligned both parallel and angularly minimizes stress and vibration excitation. Laser alignment techniques offer high precision and are recommended for critical rolls. Proper lubrication of bearings is vital for reducing friction and wear, thereby minimizing vibration generation. Selecting the correct lubricant and adhering to recommended lubrication schedules are essential. Regular inspections and condition monitoring are proactive measures that can detect early signs of barring and vibration issues. Visual inspections, vibration measurements, and bearing temperature monitoring can identify potential problems before they escalate. Regular roll grinding and resurfacing are necessary to maintain roll surface profile and roundness. Grinding removes surface irregularities and corrects for wear, preventing barring from developing or worsening. Dynamic balancing in-situ, while more complex, can be performed periodically to compensate for changes in roll balance due to wear, deposits, or other factors. Implementing a comprehensive predictive maintenance program that incorporates these practices is key to minimizing barring and vibration-related problems and maximizing roll lifespan.
Advanced Technologies and Solutions for Prevention
In addition to traditional preventive measures, advancements in technology offer even more sophisticated solutions for combating barring and vibration in paper machine rolls. Advanced roll materials and coatings are continuously being developed to enhance roll performance and durability. For instance, ceramic coatings offer superior wear resistance and surface properties, minimizing barring tendencies and extending roll life. Vibration damping technologies, incorporated into roll design or applied externally, can effectively reduce vibration amplitudes. These technologies may include tuned mass dampers, constrained layer damping, or active vibration control systems. Active vibration control systems, using sensors and actuators, can dynamically counteract vibration forces in real-time, achieving significant vibration reduction. These systems are particularly beneficial for high-speed machines or applications where vibration is inherently difficult to control. Furthermore, advanced monitoring and diagnostic systems, leveraging IoT and AI technologies, provide real-time insights into roll condition and performance. These systems can detect subtle changes in vibration patterns, predict potential failures, and optimize maintenance schedules, enabling proactive prevention of barring and vibration issues. At our company, we are committed to developing and providing cutting-edge solutions, including advanced roll coatings and vibration damping technologies, to help paper mills effectively prevent barring and vibration and achieve optimal machine performance.
Conclusion: The Path to Smooth and Efficient Paper Production
Preventing barring and vibration issues in paper machine rolls is not merely about addressing isolated technical problems; it’s about safeguarding the overall efficiency, quality, and profitability of paper production. As we’ve explored, these issues are multifaceted, stemming from a complex interplay of design, manufacturing, operational, and environmental factors. A holistic approach, encompassing robust roll design, precision manufacturing, diligent maintenance practices, and the adoption of advanced technologies, is essential for effective prevention. By proactively addressing the root causes of barring and vibration, paper mills can significantly reduce downtime, minimize waste, improve paper quality, and extend the lifespan of their critical roll assets. In today’s competitive paper market, where even marginal improvements in efficiency and quality can make a substantial difference, investing in preventive measures against barring and vibration is not just a cost-saving strategy, but a strategic imperative for sustainable success. We, at our company, understand these challenges intimately and are dedicated to partnering with paper manufacturers to provide the expertise, products, and services necessary to achieve smooth, vibration-free, and highly efficient paper production.
