The efficiency and quality of paper manufacturing hinge significantly on the correct selection and maintenance of paper machine rolls. Different paper grades – from delicate tissue paper to robust cardboard – demand specific roll specifications to ensure optimal performance and desired end-product characteristics. Choosing the right roll specifications is a multifaceted decision involving understanding the properties of various paper grades, the roll's function in the paper machine, and the materials of construction. This guide delves into the intricacies of paper machine roll specifications, tailored to different paper grades, to provide a comprehensive understanding of this critical aspect of papermaking.
Understanding the Crucial Role of Paper Machine Rolls
Paper machine rolls are not mere supporting components; they are active participants in shaping the final paper product. They perform a myriad of functions, including forming the paper web, pressing out water, calendering to achieve the desired smoothness and gloss, and transporting the paper sheet through the various stages of production. The surface characteristics, hardness, diameter, and overall design of the rolls directly influence the paper's properties, such as tensile strength, porosity, and printability. For instance, a hard-surfaced roll used in the calender section will impart a smoother finish to the paper than a softer roll. Similarly, the nip pressure (the force exerted between two rolls) significantly impacts the water removal rate in the press section. The type of paper being manufactured dictates the type of roll required. Do you ever wonder how different paper grades achieve their distinctive properties? The answer lies, in part, in the careful selection of these rolls.
Key Paper Grades and Their Roll Specification Requirements
Paper grades are broadly categorized based on their end-use applications. Common grades include newsprint, printing & writing paper, packaging paper (including cardboard and linerboard), tissue paper, and specialty papers. Each of these requires specific roll specifications. Newsprint, for example, generally utilizes rolls with less stringent surface finish requirements compared to printing & writing paper, which demands exceptional smoothness and evenness for high-quality printing. Packaging papers, especially those used in corrugated boxes, require rolls that can withstand high loads and provide excellent water removal to ensure the strength and integrity of the final product. Tissue paper production necessitates rolls with specialized surface treatments to prevent sticking and tearing of the delicate paper web. Selecting the appropriate roll material and design is paramount to achieving the desired properties for each paper grade. Think of it like choosing the right tool for the job – the correct roll is essential for success.
Roll Materials and Their Impact on Paper Quality
The material used to construct a paper machine roll has a profound impact on its performance and the resulting paper quality. Common materials include cast iron, steel, stainless steel, and various composite materials. Cast iron rolls are typically used in applications where high strength and durability are required, such as in the press section. Steel rolls offer excellent heat transfer capabilities, making them suitable for drying sections. Stainless steel rolls are corrosion-resistant, ideal for wet-end applications. Composite rolls, often made with materials like carbon fiber or polymers, offer a combination of high strength, low weight, and excellent damping characteristics. The choice of material depends on the specific requirements of the application, including operating temperature, nip pressure, chemical resistance, and desired surface finish. According to my experience, composite rolls have gained traction in recent years due to their ability to reduce vibration and improve paper quality, particularly in high-speed machines.
Surface Treatments and Their Specific Applications

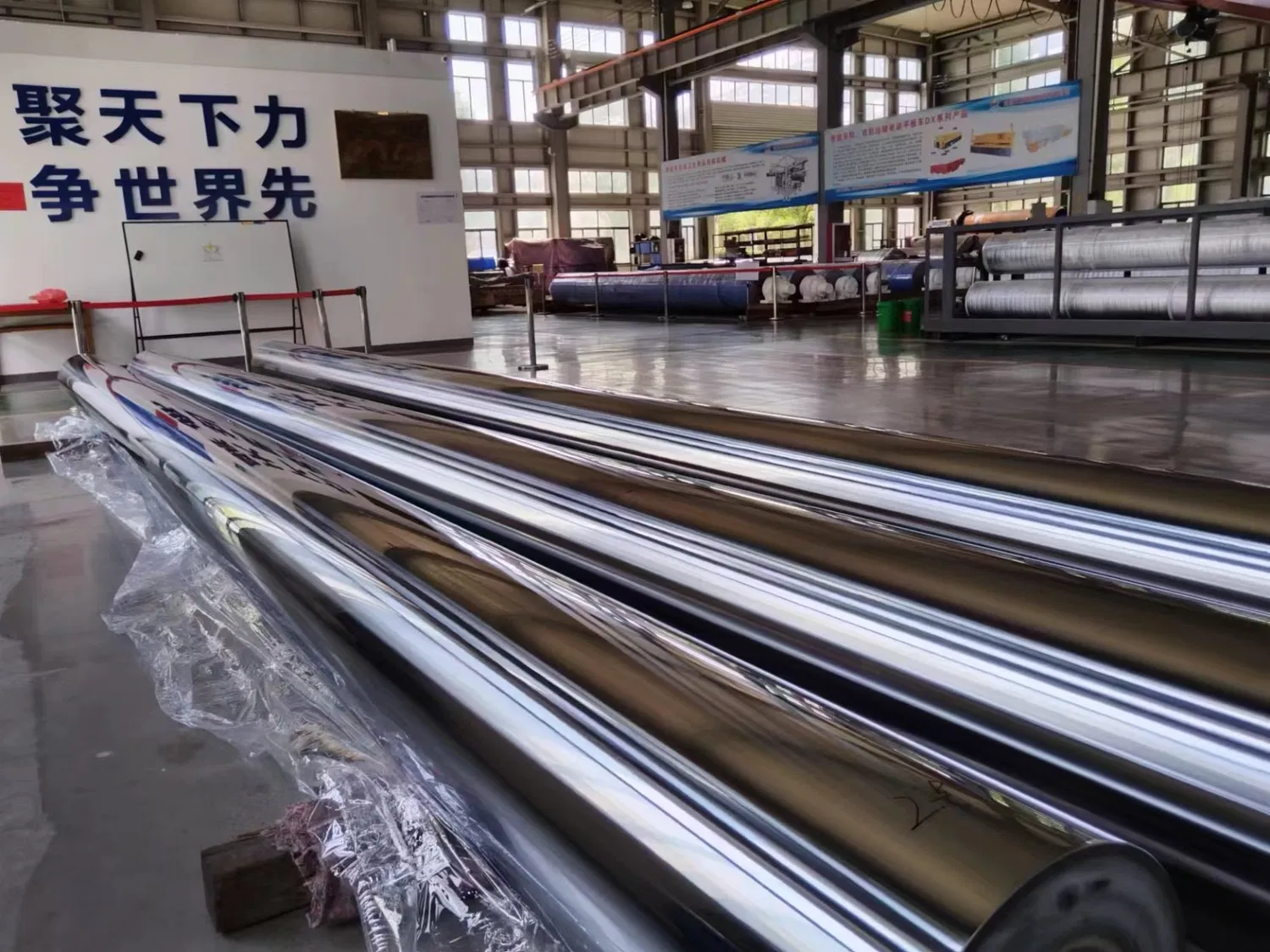

Surface treatments play a vital role in optimizing roll performance and enhancing paper quality. Common treatments include chrome plating, rubber covering, and various ceramic coatings. Chrome plating provides a hard, smooth, and corrosion-resistant surface, often used in calender rolls to achieve a high-gloss finish on the paper. Rubber coverings offer excellent conformability and cushioning, suitable for press rolls to improve water removal and prevent sheet crushing. Ceramic coatings provide exceptional wear resistance and can be tailored to specific surface roughness requirements, making them ideal for applications where abrasive materials are present. The selection of the appropriate surface treatment depends on the specific requirements of the application and the desired paper properties. Interestingly, advanced surface treatments are continuously being developed to further enhance roll performance and paper quality. These often involve nanotechnology and innovative material combinations.
Roll Dimensions: Diameter, Length, and Their Significance
The dimensions of a paper machine roll, including its diameter and length, are critical factors influencing its performance. The diameter of a roll affects its bending stiffness and load-carrying capacity. Larger diameter rolls can withstand higher loads and are less prone to deflection, making them suitable for applications where high nip pressures are required. The length of a roll dictates the width of the paper web that can be processed. It's important to ensure that the roll length is sufficient to accommodate the desired paper width without excessive overhang. Furthermore, the roll's crowning profile, a slight curvature applied to the roll surface, is essential for ensuring uniform nip pressure across the entire web width. Crown design must consider the machine's operating conditions and avoid any stress concentrations. Careful calculation of these dimensions and profiles is essential to optimize roll performance and prevent paper defects. Consider how an improperly sized roll could negatively affect the entire production line.
Maintenance and Monitoring: Ensuring Optimal Roll Performance
Regular maintenance and monitoring are crucial for ensuring the longevity and optimal performance of paper machine rolls. This includes routine inspections for surface damage, wear, and corrosion. Proper lubrication is essential to minimize friction and prevent premature wear. Rolls should be regularly cleaned to remove debris and contaminants that can affect their surface finish and performance. Vibration monitoring can help detect imbalances and other mechanical issues that can lead to roll failure. Furthermore, it's important to maintain accurate records of roll performance and maintenance activities to identify trends and proactively address potential problems. We, in our experience, have found that a well-structured maintenance program significantly reduces downtime and extends the lifespan of paper machine rolls, resulting in cost savings and improved paper quality.
Practical Applications and Case Studies: Roll Specifications in Action
Let's consider a practical example. A paper mill producing high-quality printing paper experienced issues with streaking and uneven gloss on their finished product. After a thorough investigation, it was determined that the calender rolls were the culprit. The existing rolls had a worn surface finish and inadequate crowning profile. To address the problem, the mill replaced the rolls with new ones featuring a chrome-plated surface and a precisely calculated crown. This resulted in a significant improvement in paper smoothness, gloss uniformity, and overall printability. Similarly, a packaging paper manufacturer faced challenges with sheet breaks and excessive water carry-over in the press section. By switching to rubber-covered press rolls with optimized nip pressure, they were able to improve water removal, increase sheet strength, and reduce downtime. These examples highlight the importance of carefully selecting and maintaining paper machine rolls to achieve desired paper quality and production efficiency. These examples, while simplified, illustrate the real-world impact of choosing the correct specifications.
Future Trends in Paper Machine Roll Technology
The field of paper machine roll technology is constantly evolving, driven by the demands for increased production efficiency, improved paper quality, and reduced operating costs. Emerging trends include the development of advanced composite materials with enhanced strength and damping characteristics, the application of nanotechnology to create self-cleaning and wear-resistant surfaces, and the integration of smart sensors for real-time monitoring of roll performance. Furthermore, there is a growing emphasis on sustainable roll design and manufacturing practices, including the use of recycled materials and energy-efficient production processes. As paper machines become faster and more sophisticated, the demands on paper machine rolls will continue to increase, driving further innovation in this critical area of papermaking. What new materials or technologies do you think will revolutionize paper roll design in the next decade?
In conclusion, understanding paper machine roll specifications for different paper grades is essential for optimizing paper manufacturing processes and achieving desired paper quality. By carefully considering the roll's function, material, dimensions, surface treatment, and maintenance requirements, paper manufacturers can ensure efficient and reliable operation, minimize downtime, and produce high-quality paper products that meet the diverse needs of the market. The careful selection and maintenance of these seemingly simple components can have a profound impact on the overall success of a paper manufacturing operation. The right roll truly makes all the difference.
`
