Vacuum suction rolls are pivotal components in modern paper production, playing a crucial role in optimizing the efficiency and quality of the final product. Essentially, these rolls are designed to remove water from the paper web during its formation, consolidation, and drying phases. Their sophisticated design and application significantly impact the speed, strength, and overall performance of a paper mill. To understand their true value, it's necessary to delve into the mechanics, advantages, and real-world applications of this technology.
Understanding the Core Concept

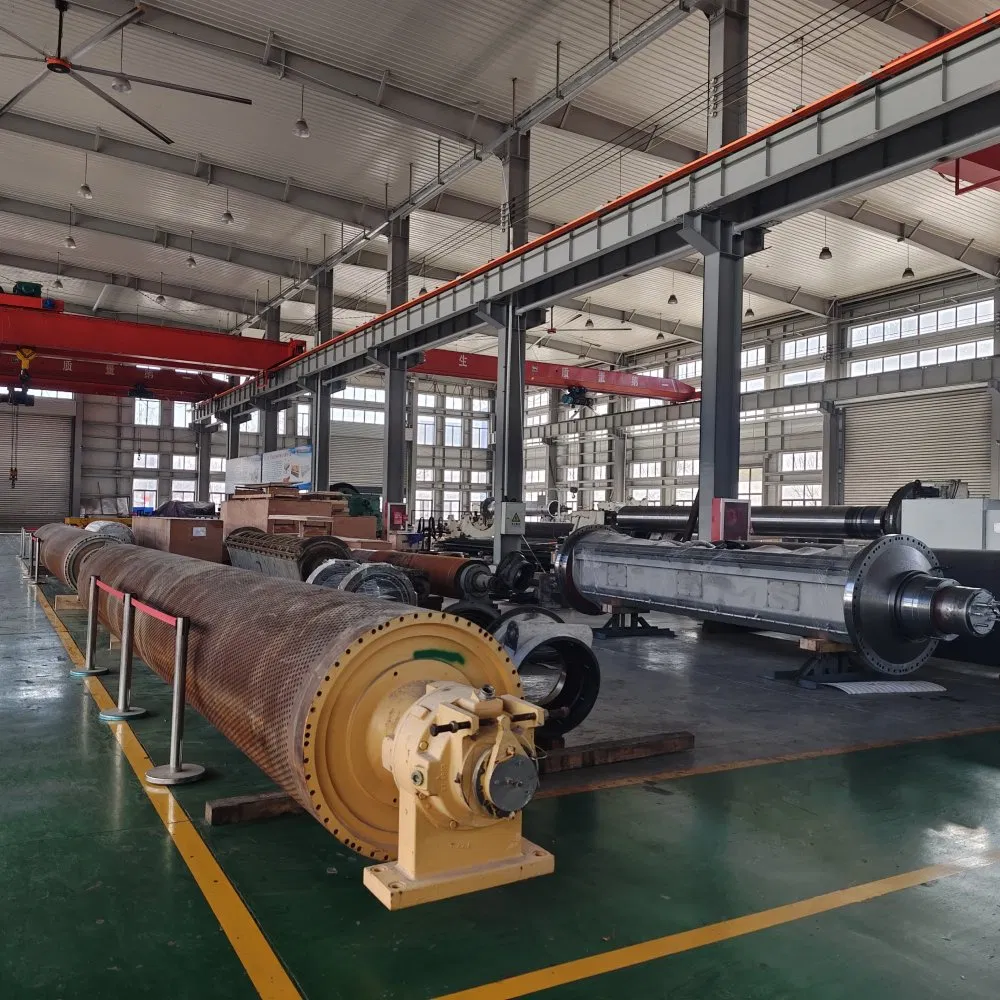

The basic principle behind a vacuum suction roll involves creating a controlled vacuum within a rotating cylinder. This cylinder has a perforated shell, allowing water to be drawn out of the passing paper web. The vacuum is generated by a stationary suction box positioned inside the roll. As the roll rotates, the paper web comes into contact with the perforated shell, and the vacuum pulls water through the sheet and into the suction box. The water is then extracted from the box, while the paper web continues its journey through the paper machine, now significantly drier and more consolidated. This dewatering process is far more efficient than relying solely on gravity or pressure, leading to higher production speeds and improved paper quality. It’s worth noting the precision engineering required to maintain consistent vacuum levels and prevent damage to the delicate paper web.
The Key Advantages of Vacuum Suction Rolls
Vacuum suction rolls offer a multitude of advantages that directly translate into enhanced efficiency in paper production. For starters, they significantly increase the speed of the paper machine by accelerating the dewatering process. A drier sheet entering the dryer section requires less energy to dry completely, reducing energy consumption and costs. Moreover, these rolls improve the strength and uniformity of the paper web. By evenly removing water, they minimize variations in sheet thickness and density, leading to a more consistent and higher-quality final product. Let's not forget the reduced downtime. Effective dewatering minimizes sheet breaks, which are a common cause of production interruptions. This contributes to increased uptime and overall throughput. Many professionals believe that the initial investment in vacuum suction rolls is easily justified by the long-term operational benefits and cost savings.
Applications Across Different Paper Grades
The versatility of vacuum suction rolls allows for their application across a wide range of paper grades, from lightweight tissue paper to heavy-duty packaging board. In the production of tissue paper, for example, these rolls are crucial for achieving the desired softness and absorbency. They gently remove water without compressing the delicate fibers, preserving the paper's bulk and texture. Conversely, in the production of linerboard and corrugated board, vacuum suction rolls play a vital role in improving the strength and stiffness of the final product. The more efficient dewatering process results in a more compact and dense sheet, enhancing its resistance to tearing and crushing. Therefore, tailoring the vacuum level and roll configuration to the specific requirements of each paper grade is paramount for achieving optimal results.
Factors Affecting Vacuum Suction Roll Performance
Several factors influence the overall performance of vacuum suction rolls, and understanding these factors is critical for maximizing their effectiveness. The design of the roll shell, including the size, shape, and distribution of the perforations, plays a significant role in determining the rate of water removal. The vacuum level is another crucial parameter that needs to be carefully controlled. Too low a vacuum may result in insufficient dewatering, while too high a vacuum can damage the paper web or cause excessive wear on the roll surface. Furthermore, the condition of the sealing elements within the suction box is essential for maintaining the desired vacuum level. Worn or damaged seals can lead to air leakage, reducing the efficiency of the dewatering process. Regular maintenance and inspection are therefore essential for ensuring optimal performance and extending the lifespan of vacuum suction rolls. You might even find, that a simple cleaning can drastically improve efficiency.
Maintenance and Troubleshooting
Maintaining vacuum suction rolls in peak operating condition requires a proactive and systematic approach. Regular cleaning of the roll shell and suction box is essential for preventing the buildup of fibers, fillers, and other contaminants that can impede water removal. Periodic inspection of the sealing elements is also crucial for identifying and addressing any potential leaks. Furthermore, monitoring the vacuum level and adjusting it as needed can help optimize the dewatering process. In the event of performance issues, such as reduced water removal or sheet breaks, a systematic troubleshooting process should be followed to identify the root cause. This may involve checking the vacuum system, inspecting the roll shell for damage, and evaluating the condition of the sealing elements. According to my experience, proper maintenance not only extends the lifespan of the rolls but also significantly reduces the risk of unexpected downtime.
The Future of Vacuum Suction Roll Technology
The field of vacuum suction roll technology is constantly evolving, with ongoing research and development focused on improving their efficiency, reliability, and sustainability. One promising area of innovation is the development of advanced roll shell designs with optimized perforation patterns for enhanced water removal. Another trend is the integration of smart sensors and control systems that allow for real-time monitoring and adjustment of vacuum levels, maximizing performance and minimizing energy consumption. Furthermore, there is a growing emphasis on developing more sustainable materials and manufacturing processes for vacuum suction rolls, reducing their environmental footprint. These advancements promise to further enhance the role of vacuum suction rolls in optimizing efficiency in paper production and reducing the environmental impact of the industry.
Practical Applications: A Case Study
Let's consider a real-world example. We company recently upgraded the vacuum system on its paper machine that produces printing and writing grades. Before the upgrade, the machine struggled to reach its target production speed due to limitations in the dewatering capacity of the existing equipment. After installing new vacuum suction rolls with an improved roll shell design and a more efficient vacuum system, the machine's production speed increased by 15%. This not only boosted the mill's output but also reduced energy consumption per ton of paper produced. The mill also observed a noticeable improvement in paper quality, with fewer sheet breaks and a more uniform sheet profile. This case study highlights the tangible benefits of investing in modern vacuum suction roll technology and demonstrates their potential to significantly enhance efficiency and profitability in paper production. It really drove home the value of keeping abreast of new technology.
Addressing Common Questions
Many paper mill operators often ask, "How frequently should vacuum suction rolls be inspected and maintained?" The answer depends on various factors, including the type of paper being produced, the operating conditions of the paper machine, and the quality of the raw materials used. As a general guideline, it is recommended that vacuum suction rolls be inspected at least once per month, with more frequent inspections for machines operating at higher speeds or producing abrasive grades of paper. Another common question is, "Can vacuum suction rolls be retrofitted to existing paper machines?" In many cases, the answer is yes. However, it is essential to carefully assess the machine's existing infrastructure and ensure that it can support the weight and power requirements of the new vacuum suction rolls. A thorough engineering evaluation is often necessary to determine the feasibility and cost-effectiveness of a retrofit project. Have you considered how integrating modern technology could improve your overall paper production efficiency?
Conclusion: The Undeniable Value
In conclusion, vacuum suction rolls are indispensable components in modern paper production, playing a critical role in enhancing efficiency, improving paper quality, and reducing operating costs. Their ability to effectively remove water from the paper web during its formation, consolidation, and drying phases directly translates into increased production speeds, improved sheet strength, and reduced energy consumption. As technology continues to advance, we can expect to see even more innovative designs and applications of vacuum suction rolls that further optimize efficiency and sustainability in the paper industry. The evidence is compelling: investing in high-quality, well-maintained vacuum suction rolls is an investment in the future of efficient paper production.
