Roll covers are integral components in a vast array of industrial processes, from paper manufacturing and printing to steel production and textile processing. Their primary function is to provide a specific surface characteristic – be it for gripping, cushioning, or releasing materials. The hardness of a roll cover directly influences its performance and longevity. Thus, accurately measuring and controlling this hardness is crucial for maintaining optimal efficiency and product quality. This article explores the diverse methods employed for roll cover hardness measurement and their wide-ranging applications across various industries. Simply put, getting the hardness right is the key to a smooth operation.
Hardness Measurement Methods for Roll Covers
Several methods exist for determining the hardness of roll covers, each with its own advantages and limitations. The most common techniques include Shore hardness testing (A, D scales are frequently used), indentation testing methods like Rockwell and Vickers (though less common for softer materials like rubber), and ultrasonic hardness testing. Shore hardness testing is arguably the most widely used for rubber and polymer-based roll covers. It involves pressing a hardened indenter into the roll cover material and measuring the depth of penetration. The Shore A scale is typically used for softer materials, while the Shore D scale is preferred for harder materials. On the other hand, indentation testing methods, while primarily used for metals, can be adapted for harder roll cover materials by carefully selecting the appropriate indenter and load. Ultrasonic hardness testing offers a non-destructive approach, using ultrasonic waves to determine material hardness. Which method is best? It depends heavily on the material and desired accuracy.
Shore Hardness Testing: A Deep Dive
As mentioned, Shore hardness testing is a mainstay in the roll cover industry. The Shore durometer measures resistance to indentation. A higher durometer reading indicates a harder material. Shore A is often employed for materials ranging from soft rubbers to flexible plastics, while Shore D is suitable for rigid plastics and hard rubbers. The simplicity of the Shore hardness test makes it a favorite for quick, on-site measurements. The durometer is easily portable and provides instant readings. However, it's important to understand that Shore hardness measurements are susceptible to surface imperfections and variations in the material itself. Proper calibration and consistent application of the durometer are crucial for reliable results. Moreover, the method is empirical, meaning it primarily offers a comparative measure rather than a fundamental material property. Therefore, it's essential to use Shore hardness values in conjunction with other material properties when making critical engineering decisions.
The Role of Hardness in Roll Cover Performance
The hardness of a roll cover directly impacts its ability to perform its intended function. For instance, in printing applications, a roll cover that is too soft might compress excessively, leading to uneven ink distribution and blurred images. Conversely, a roll cover that is too hard might not conform to the substrate properly, resulting in poor ink transfer. Similarly, in paper manufacturing, the hardness of the press rolls influences the dewatering process and the final paper quality. A softer roll cover might provide better nip pressure distribution, leading to more efficient water removal. In contrast, a harder roll cover might offer better wear resistance, extending the roll's lifespan. Therefore, selecting the appropriate roll cover hardness is a delicate balancing act, requiring careful consideration of the specific application requirements. Choosing the wrong hardness can lead to significant operational inefficiencies and product defects.
Applications in the Printing Industry
The printing industry relies heavily on roll covers with precisely controlled hardness. Different printing processes, such as offset, flexographic, and gravure printing, demand specific roll cover characteristics. In offset printing, the hardness of the blanket and impression cylinders is crucial for consistent image transfer and preventing dot gain. Flexographic printing often utilizes softer roll covers to conform to uneven surfaces and achieve good ink coverage. Gravure printing, known for its high-quality image reproduction, also benefits from carefully selected roll cover hardness to optimize ink cell filling and doctor blade performance. Regular hardness testing is essential in the printing industry to ensure consistent print quality and minimize downtime. Changes in hardness can indicate wear or degradation of the roll cover material, signaling the need for replacement or refurbishment. Maintaining proper hardness levels translates directly into sharper images and reduced waste.
Applications in Paper Manufacturing

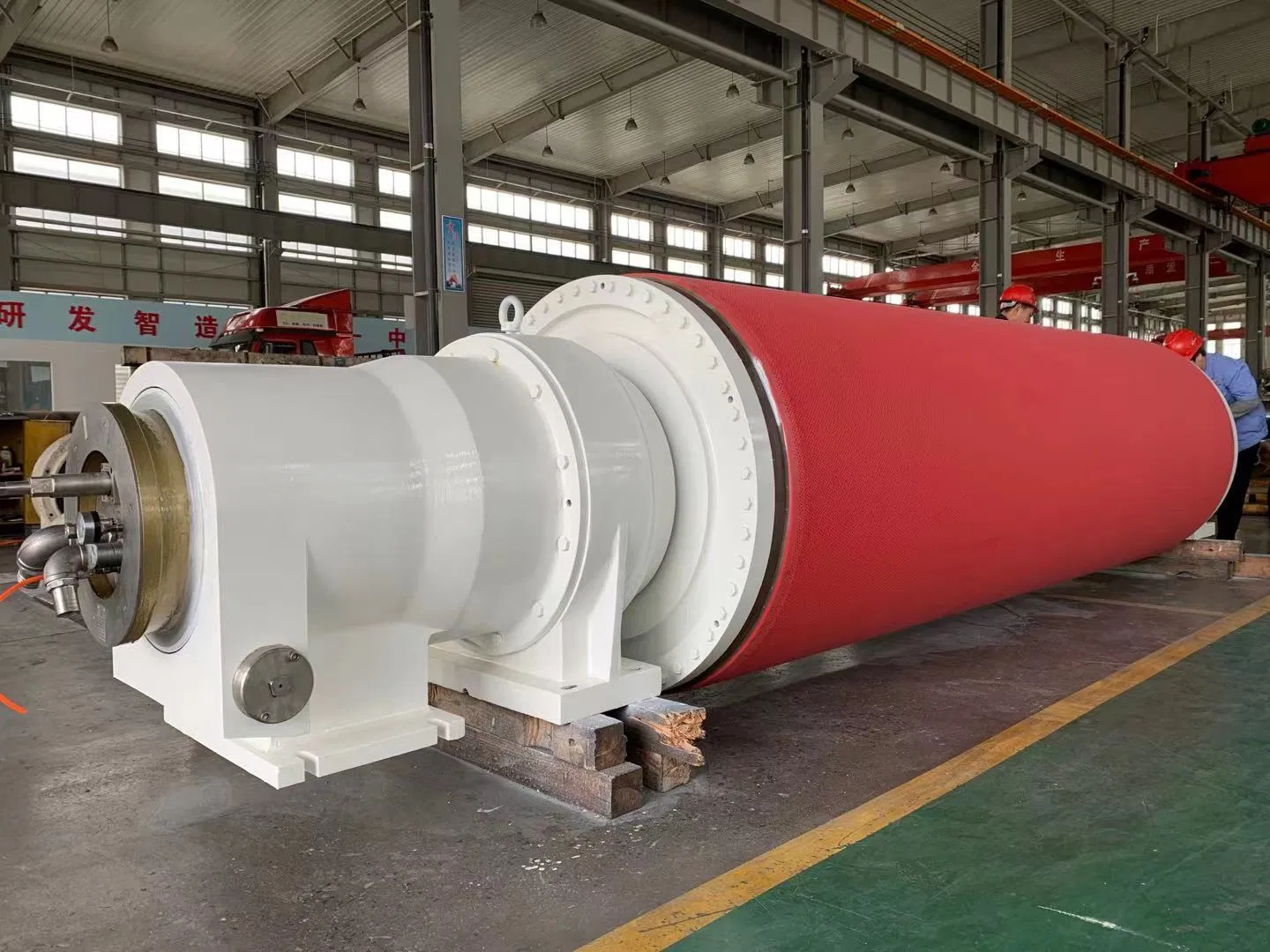

In paper manufacturing, roll covers play a critical role in various stages of the process, including pressing, drying, and calendaring. The hardness of the press rolls significantly impacts the dewatering efficiency and sheet consolidation. Calender rolls, which are used to impart a smooth surface finish to the paper, also require precise hardness control. A roll cover that is too soft might lead to excessive sheet deformation, while a roll cover that is too hard might cause surface defects. Monitoring the hardness of these rolls is essential for maintaining consistent paper quality and preventing web breaks. Interestingly, different paper grades often require different roll cover hardness profiles. For example, producing high-gloss coated paper might necessitate harder calender rolls compared to producing newsprint. Therefore, paper manufacturers must carefully select and maintain roll covers with the appropriate hardness characteristics to meet the specific requirements of their products.
Applications in Steel and Textile Industries
Beyond printing and paper, roll cover hardness is also critical in the steel and textile industries. In steel manufacturing, roll covers are used in various processing lines, such as galvanizing and coating lines. The hardness of these rolls influences the uniformity and quality of the applied coatings. In the textile industry, roll covers are used in dyeing, printing, and finishing processes. The hardness of these rolls affects the fabric tension, dye penetration, and overall fabric hand feel. In both industries, monitoring and controlling roll cover hardness is essential for maintaining consistent product quality and minimizing defects. Furthermore, the aggressive environments in these industries often necessitate roll covers with specialized materials and hardness characteristics to withstand high temperatures, corrosive chemicals, and abrasive wear. The right hardness ensures smooth operation and protects the underlying machinery.
Factors Affecting Roll Cover Hardness
Several factors can influence the hardness of roll covers over time. Temperature fluctuations, exposure to chemicals, mechanical stress, and general wear and tear can all contribute to changes in hardness. High temperatures can accelerate the degradation of rubber and polymer materials, leading to softening or hardening. Similarly, exposure to aggressive chemicals can cause swelling, embrittlement, or other forms of material degradation. Mechanical stress, such as repeated compression or abrasion, can also lead to changes in hardness. Regular monitoring of roll cover hardness is crucial for detecting these changes early and implementing appropriate corrective actions, such as replacement or refurbishment. Furthermore, selecting roll cover materials that are resistant to the specific operating environment is essential for maximizing their lifespan and maintaining consistent performance. Did you know that the choice of cleaning agents can also impact roll cover hardness?
Practical Considerations and Best Practices
When measuring roll cover hardness, several practical considerations should be taken into account. First and foremost, ensure that the measurement instrument is properly calibrated and in good working condition. Surface cleanliness is also crucial, as dirt, debris, or coatings can affect the accuracy of the readings. Take multiple measurements at different locations on the roll cover to account for variations in hardness. Record the measurement data systematically and track changes over time. Establish a regular inspection and maintenance schedule to identify potential problems early. Consider using non-destructive testing methods, such as ultrasonic hardness testing, to minimize disruption to production. Furthermore, consult with roll cover manufacturers or suppliers to obtain specific recommendations for hardness testing and maintenance. Implementing these best practices will help ensure accurate measurements, consistent performance, and extended roll cover lifespan. I've found that a proactive approach is always more cost-effective in the long run.
The Future of Roll Cover Hardness Measurement
The field of roll cover hardness measurement is constantly evolving, with ongoing research and development aimed at improving accuracy, efficiency, and reliability. Emerging technologies, such as advanced ultrasonic techniques and optical methods, offer the potential for non-contact, high-resolution hardness mapping. These techniques could provide valuable insights into the material properties and performance of roll covers, enabling more precise process control and predictive maintenance. Furthermore, the integration of data analytics and machine learning could enable the development of predictive models that can forecast roll cover hardness changes based on operating conditions and material properties. These advancements promise to revolutionize roll cover management and optimization, leading to significant improvements in product quality, efficiency, and sustainability. What advancements do you think will be most impactful?
