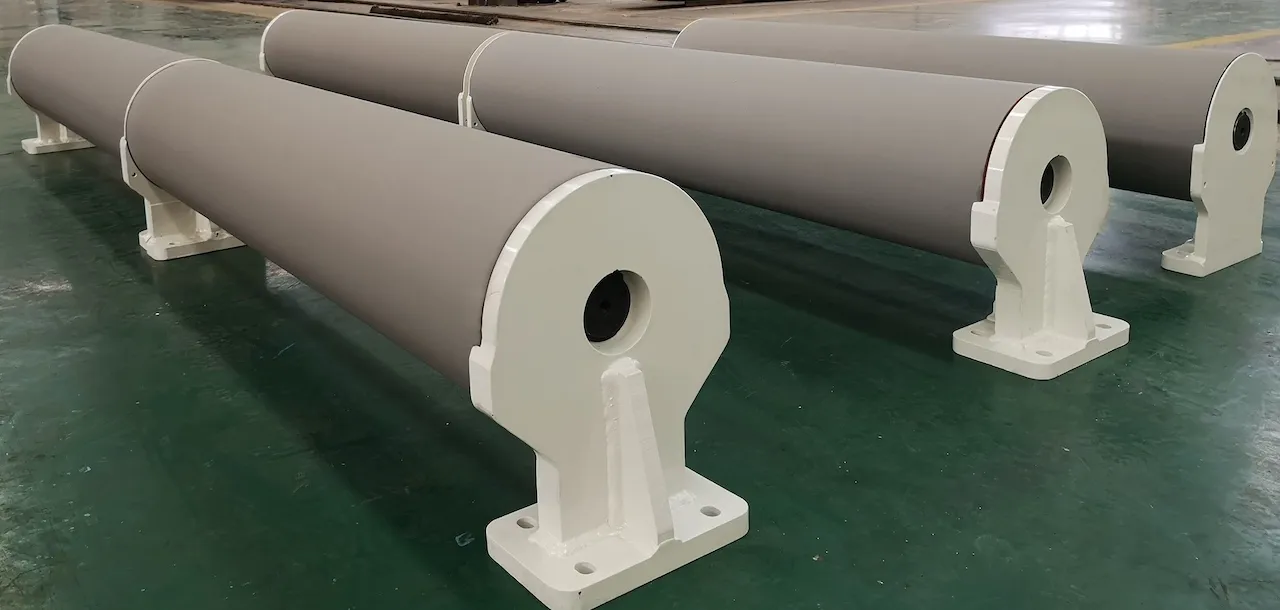

The paper industry, a complex interplay of engineering and material science, relies heavily on the performance of its machinery. At the heart of this machinery lies the humble, yet critical, roll. The design of these rolls has a profound impact on paper machine productivity. From the initial forming section to the final calendaring stage, each roll's specific design contributes significantly to the speed, efficiency, and quality of the paper produced. Ignoring the nuances of roll design is, frankly, leaving money on the table. But what exactly makes one roll design superior to another, and how does it translate into tangible productivity gains?
Understanding the Core Concepts
Before delving into specifics, let's clarify some core concepts. Roll design encompasses a wide range of factors, including material selection, surface finish, profile geometry (crown), and internal cooling systems. Each of these elements interacts to influence the roll's performance. The roll’s material dictates its resistance to wear, corrosion, and deformation. For example, rolls in the press section, which experience high pressure and moisture, often utilize materials like stainless steel or composites. The surface finish affects friction, release properties, and the paper's surface quality. A highly polished surface might be desired in the calender stack for imparting a smooth finish, while a textured surface could enhance water removal in the press section. Crown, or profile geometry, is the intentional shaping of the roll surface to compensate for deflection under load, ensuring even nip pressure across the web width. Finally, internal cooling systems are essential for managing heat generated from friction and pressure, preventing thermal expansion and maintaining consistent roll performance. Consider this: a seemingly minor change in crown can dramatically alter the nip pressure distribution, leading to variations in paper thickness and moisture content. This directly impacts the machine's runnability and overall productivity.
The Press Section: Where Roll Design Truly Shines
The press section of a paper machine is where water is mechanically removed from the paper web. This is a crucial stage for productivity, as energy-intensive drying becomes necessary only *after* the press section. Roll design plays a pivotal role here. One key aspect is the use of grooved or blind-drilled rolls. These rolls are designed to provide a space for water to escape from the sheet as it passes through the nip. The groove pattern, depth, and density are carefully optimized to maximize water removal without compromising sheet strength. Furthermore, the cover material of the press roll (e.g., rubber, polyurethane) influences the nip pressure profile and water removal efficiency. Softer covers provide a wider nip, increasing dwell time and promoting greater water removal. Conversely, harder covers offer higher nip pressures but may reduce dwell time. The choice of cover material and grooving pattern must be carefully matched to the specific paper grade being produced and the operating conditions of the machine. Did you know that innovative press roll designs incorporating shoe presses can achieve significantly higher dryness levels compared to conventional nip presses? According to my experience, a well-designed press section can easily shave several percentage points off the dryer section's energy consumption, leading to substantial cost savings.
Calender Rolls: Achieving the Perfect Finish
Moving down the line, the calender stack is where the paper's surface smoothness, gloss, and thickness are refined. Calender rolls are typically made of hardened steel or cast iron, with highly polished surfaces. The arrangement of these rolls, along with controlled temperature and pressure, determines the final surface properties of the paper. Roll crowning is absolutely critical in calendering. Because the paper web has an inherent thickness variation across the machine width, and the calender rolls themselves deflect under the heavy nip loads, precise roll crowning is necessary to ensure uniform pressure. Without it, you will observe a lack of consistency in your paper’s smoothness and gloss characteristics. Moreover, temperature control of the calender rolls is essential. Heating the rolls softens the paper fibers, making them more pliable and responsive to the calendering process. However, excessive heating can lead to thermal expansion of the rolls, altering the nip profile and potentially causing sheet breaks. Modern calender designs often incorporate advanced temperature control systems that precisely regulate the roll surface temperature, allowing for optimal paper quality and productivity. The application of water or coating to the paper web before calendering is another technique used to enhance the final surface properties. Careful control of these parameters is essential for achieving the desired finish without compromising paper strength or runnability.
Material Matters: Selecting the Right Roll Material
The selection of roll material is paramount. It directly affects the roll's lifespan, performance, and ability to withstand the harsh conditions encountered in a paper machine. Steel, stainless steel, cast iron, and composite materials are all commonly used, each offering a unique set of properties. Steel rolls are typically used in applications requiring high strength and stiffness, such as calender rolls. Stainless steel rolls offer excellent corrosion resistance and are often used in wet end applications. Cast iron rolls provide good thermal conductivity and vibration damping, making them suitable for dryer sections. Composite rolls, made from materials like carbon fiber or fiberglass, offer high strength-to-weight ratios and can be designed with specific stiffness profiles to optimize nip pressure distribution. The material selection is not only about the material's inherent properties, but also how the material responds to various surface treatments or coatings. Think about it, if you have the perfect roll design, but fail to protect it with the right coating, you risk drastically shortening its lifespan. What factors do *you* consider when choosing the right roll material for a specific application? I have seen countless times when companies choose a material based on initial cost only to pay much more down the line in replacement and downtime costs.
Surface Treatments and Coatings: Enhancing Roll Performance
Surface treatments and coatings are applied to rolls to enhance their performance and longevity. These treatments can modify the roll's surface properties, such as friction, wear resistance, and release characteristics. Common surface treatments include chrome plating, ceramic coating, and plasma spraying. Chrome plating provides a hard, wear-resistant surface that is often used on calender rolls. Ceramic coatings offer excellent abrasion resistance and can be applied to rolls in the forming and press sections. Plasma spraying allows for the deposition of a wide range of materials, enabling the creation of custom coatings tailored to specific applications. Coatings like Teflon can reduce the stickiness of rolls, preventing paper from adhering and causing breaks. The choice of surface treatment or coating depends on the specific application and the desired performance characteristics. It's also worth noting that regular inspection and maintenance of roll surfaces are critical for preventing damage and ensuring optimal performance. A small nick or scratch on a calender roll, for instance, can lead to imperfections in the paper surface. Therefore, investing in high-quality surface treatments and implementing a rigorous maintenance program are essential for maximizing roll lifespan and productivity. Many professionals believe that the money saved up-front on skipping these treatments only leads to much more in the long run.
Nip Control: The Key to Uniform Paper Properties
Nip control, the regulation of pressure between two rolls in a nip, is fundamental to achieving uniform paper properties. Proper nip control ensures consistent moisture content, thickness, and surface smoothness across the paper web. Uneven nip pressure can lead to variations in these properties, resulting in lower quality paper and reduced machine efficiency. Nip control is achieved through a combination of roll crowning, loading systems, and feedback control loops. Roll crowning compensates for roll deflection under load, ensuring even pressure distribution. Loading systems, such as pneumatic or hydraulic cylinders, apply the necessary force to create the desired nip pressure. Feedback control loops monitor nip pressure and adjust the loading system to maintain the desired pressure setpoint. Advanced nip control systems incorporate sensors that measure web moisture, thickness, and temperature, providing real-time feedback to the control system. By continuously monitoring and adjusting nip pressure based on these parameters, these systems can optimize paper quality and machine performance. This leads to reduced waste and greater overall efficiency. Interestingly, the sophistication of nip control systems has increased dramatically in recent years, driven by advances in sensor technology and control algorithms.
Real-World Examples and Applications
Let's examine some real-world examples to illustrate the impact of roll design on paper machine productivity. A tissue mill struggling with frequent sheet breaks in the press section implemented a new press roll design featuring a modified groove pattern and a softer cover material. This resulted in improved water removal and a significant reduction in sheet breaks, increasing machine uptime and overall production output by 15%. In another case, a fine paper mill experiencing variations in paper gloss implemented an improved calender roll crowning system and temperature control. This led to a more uniform gloss level across the paper web, improving the paper's marketability and reducing customer complaints. A packaging paper manufacturer was facing limitations in machine speed due to poor water removal in the forming section. After installing a new forming roll with an optimized surface finish, they saw much-improved water removal which led to an increased machine speed of 10% and also a higher overall output. These examples demonstrate the tangible benefits of optimizing roll design for specific paper grades and machine conditions. It underscores that thoughtful roll design contributes greatly to enhanced production.
Conclusion: A Continuous Pursuit of Optimization
In conclusion, the impact of roll design on paper machine productivity cannot be overstated. From the selection of materials to surface treatments and nip control strategies, every aspect of roll design influences the efficiency, quality, and profitability of the paper manufacturing process. While the "perfect" roll design will always depend on the specific application and operational conditions, the principles of optimized roll performance remain constant. The continuous pursuit of improved roll designs, coupled with advancements in materials science and control technologies, will continue to drive advancements in paper machine productivity for years to come. Always remember that focusing on roll design is not just about minimizing downtime or maximizing output; it's about achieving a more sustainable and profitable operation. It requires collaboration between engineers, operators, and suppliers, all working together to unlock the full potential of this critical component of the paper machine. `
