The efficiency and quality of paper production hinge significantly on the intricate interplay of various factors within the paper machine. Among these, the design of the rolls plays a pivotal role in governing two critical processes: drainage and retention. Simply put, how a roll is designed, its geometry, surface characteristics, and even the materials it's made from, directly impacts how well water is removed from the paper web and how effectively the solid fibers are retained within that web. Let's dive deeper into understanding this crucial relationship.
The Fundamentals of Drainage and Retention
Before we get into the specifics of roll design, it's important to understand what drainage and retention actually *mean* in the context of papermaking. Drainage, as the name suggests, refers to the removal of water from the pulp slurry as it travels through the paper machine. Effective drainage is essential for forming a solid paper sheet. Insufficient drainage leads to a weak sheet with poor formation and can cause problems further down the line, like web breaks and uneven drying. Retention, on the other hand, is the process of retaining the solid components of the pulp – primarily fibers, but also fillers and fines – within the forming sheet. Poor retention results in the loss of these valuable materials, which not only increases costs but also negatively impacts the paper's properties, such as opacity, strength, and printability. It’s a delicate balancing act to achieve optimal levels of both drainage and retention.
How Roll Geometry Shapes Drainage

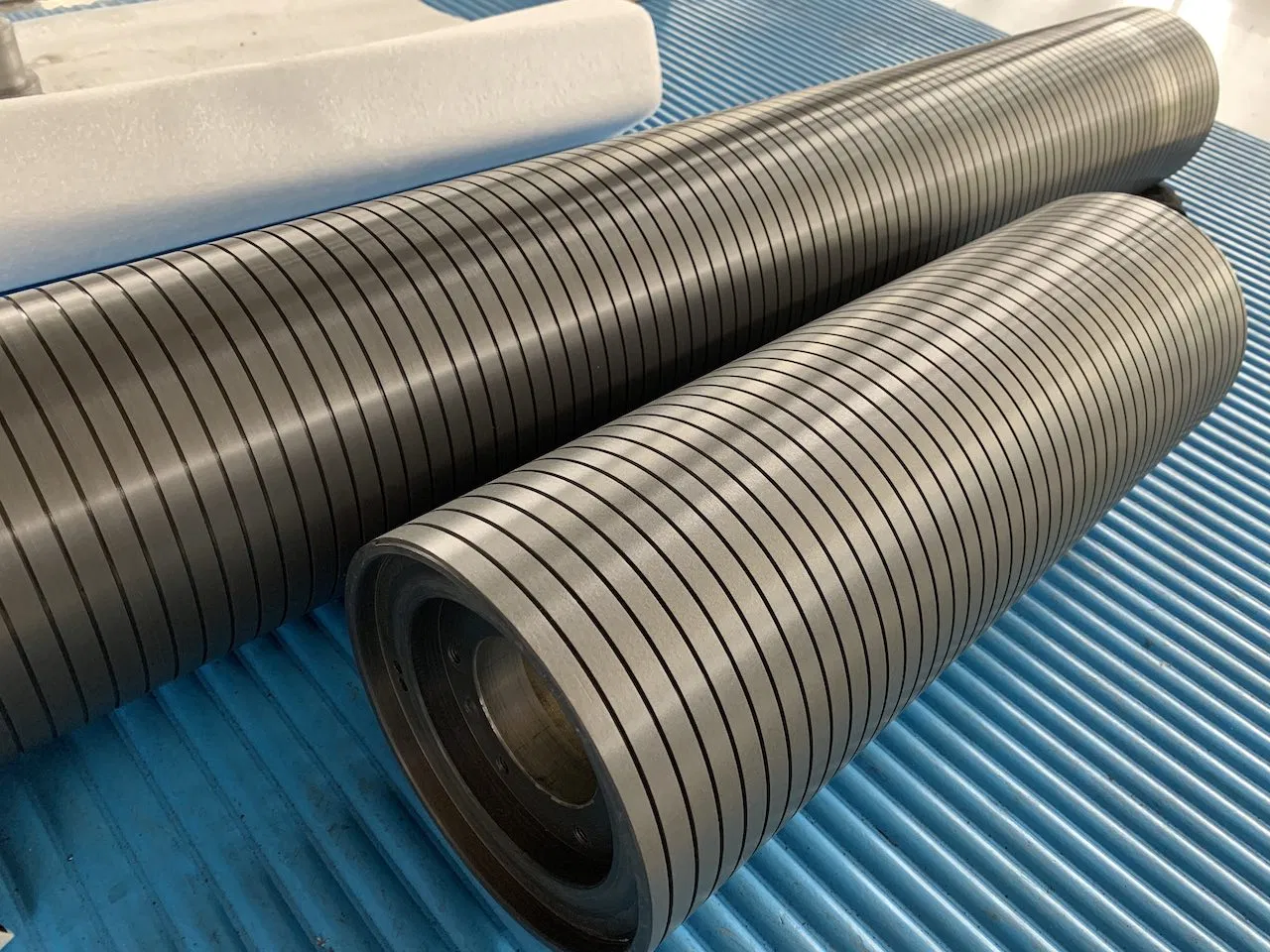

Roll geometry is perhaps the most obvious aspect of roll design that influences drainage. Think about the different types of rolls used in a paper machine: couch rolls, press rolls, dryer rolls – each with its unique shape and function. Couch rolls, for example, are designed to facilitate the initial removal of water from the newly formed web as it leaves the forming section. Press rolls, especially those used in shoe presses or extended nip presses, employ specific geometries and pressure profiles to squeeze out water in a controlled manner. The nip width, pressure distribution, and roll diameter all contribute to the effectiveness of drainage. Furthermore, the presence of grooves or perforations on the roll surface is crucial. These features create channels for water to escape and prevent water from being reabsorbed back into the sheet. Now, consider this: what might happen if the roll geometry is not optimized for the specific type of pulp being used?
The Impact of Surface Characteristics on Retention
While roll geometry primarily influences drainage, the surface characteristics of the rolls have a more direct impact on retention. The surface texture, roughness, and even the surface energy of the roll can affect how well fibers and fines adhere to the roll surface and, consequently, how well they are retained within the sheet. A smooth, non-porous surface might lead to poor retention as fibers tend to slip and slide, while a rougher surface might improve retention by providing more points of contact for the fibers to latch onto. However, too much roughness can also be detrimental, leading to sheet marking and uneven drying. The key is to strike the right balance. Furthermore, the chemical properties of the roll surface can also play a role. For example, certain surface treatments can improve the affinity of the roll surface for specific types of fibers, thereby enhancing retention.
Materials Matter: Roll Composition and its Effects
The materials used to construct the rolls also have a significant impact on both drainage and retention. Different materials possess varying properties such as hardness, elasticity, thermal conductivity, and water absorption, all of which can influence the papermaking process. For example, rolls made of softer materials, like rubber or polyurethane, can conform more readily to the sheet surface, improving nip uniformity and promoting more even drainage. Harder materials, like steel or granite, offer greater resistance to wear and tear but may not provide the same level of conformability. Furthermore, the thermal conductivity of the roll material is crucial in dryer sections, where heat is used to evaporate water from the sheet. Efficient heat transfer is essential for maximizing drying rates and minimizing energy consumption. The choice of material, therefore, must be carefully considered based on the specific requirements of each section of the paper machine.
Case Study: Optimizing Roll Design for Enhanced Drainage
Let's consider a real-world example to illustrate the importance of optimizing roll design for improved drainage. A paper mill producing lightweight coated (LWC) paper was experiencing frequent web breaks and uneven moisture profiles. Upon investigation, it was found that the press rolls were not effectively removing water from the sheet, leading to a weak and unevenly dried web. The mill decided to upgrade its press rolls with a new design featuring a wider nip and a more optimized groove pattern. The wider nip allowed for a longer dwell time, allowing more water to be squeezed out of the sheet. The improved groove pattern provided more efficient channels for water to escape, preventing rewetting. As a result of these changes, the mill experienced a significant reduction in web breaks, improved moisture profile uniformity, and increased machine speed. This case study highlights the tangible benefits of carefully considering roll design when addressing drainage issues.
Advanced Roll Technologies and Their Role
Advances in materials science and engineering have led to the development of several advanced roll technologies that offer improved drainage and retention performance. One such technology is the use of composite materials, which combine the advantages of different materials to create rolls with tailored properties. For example, carbon fiber reinforced polymer (CFRP) rolls offer high strength-to-weight ratios and excellent dimensional stability, making them ideal for high-speed paper machines. Another emerging technology is the use of intelligent rolls equipped with sensors and actuators. These rolls can monitor and adjust nip pressure, temperature, and other parameters in real-time, allowing for precise control over drainage and retention. Furthermore, surface coatings and treatments are constantly being developed to improve roll surface properties, such as wear resistance, release characteristics, and fiber adhesion. What impact might these advanced technologies have on the future of papermaking?
Maintenance and Monitoring: Key to Sustained Performance
It’s not enough to just have well-designed rolls; proper maintenance and monitoring are crucial for ensuring sustained drainage and retention performance. Regular inspections should be conducted to identify any signs of wear, damage, or fouling. Rolls should be cleaned regularly to remove any buildup of fibers, fillers, or other contaminants that can impede drainage and affect retention. Furthermore, roll grinding or resurfacing may be necessary periodically to maintain the optimal surface profile and roughness. Vibration analysis can be used to detect imbalances or other mechanical issues that can affect roll performance. By implementing a comprehensive maintenance and monitoring program, paper mills can maximize the lifespan of their rolls and ensure consistent paper quality.
Troubleshooting Drainage and Retention Issues
When drainage and retention problems arise, a systematic approach to troubleshooting is essential. Start by carefully examining the paper sheet for any visual signs of uneven drainage, poor formation, or excessive fines loss. Analyze the whitewater to determine the levels of suspended solids and the composition of the lost materials. Check the condition of the rolls, paying particular attention to their surface condition and alignment. Review the operating parameters of the paper machine, such as stock consistency, pressure profiles, and chemical additives. By systematically investigating these factors, it is usually possible to identify the root cause of the problem and implement corrective actions. Sometimes, the solution may involve adjusting the roll design, while other times it may require changes to the stock preparation or chemical addition strategies.
Balancing Act: Drainage, Retention and Paper Quality
Achieving optimal drainage and retention is not simply about maximizing water removal or retaining all the fibers. It's about finding the right balance to produce paper with the desired properties. For example, while excessive drainage can lead to a dry sheet with good strength, it can also result in a loss of fines and a decrease in opacity. On the other hand, while high retention can improve opacity and reduce costs, it can also lead to a wet sheet that is difficult to dry and prone to web breaks. Therefore, papermakers must carefully consider the specific requirements of each paper grade and adjust the roll design, stock preparation, and chemical addition strategies accordingly to achieve the optimal balance between drainage, retention, and paper quality. It’s a complex and often iterative process that requires a deep understanding of the papermaking process and the interplay of various factors.
Conclusion: The Integral Role of Roll Design
In conclusion, roll design has a profound and multifaceted impact on drainage and retention in paper machines. From the geometry and surface characteristics to the materials used in construction, every aspect of roll design influences how effectively water is removed from the paper web and how well the solid components are retained within it. By carefully considering these factors and implementing advanced roll technologies, paper mills can optimize drainage and retention, improve paper quality, and enhance machine efficiency. It's a field that continues to evolve, with ongoing research and development leading to new and innovative roll designs that push the boundaries of papermaking performance. Therefore, understanding **how roll design affects paper machine drainage and retention** is crucial for any papermaker seeking to achieve optimal results.
